Summary of Contents for Amate Audio GT-50HR
- Page 1 User’s manual Manual de usuario GT-50HR Hook for HR-XX bar Abrazadera para barra HR-XX July 2015...

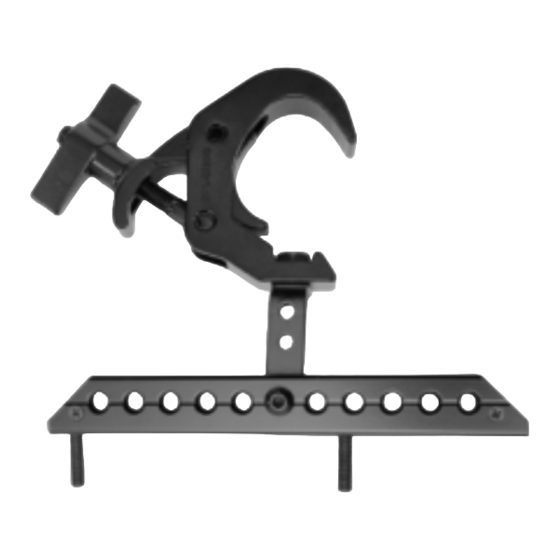

- Page 2 GT-50HR July 2015 The GT-50HR is an optional accessory for truss mounting (vertical orientation). El GT-50HR es un accesorio opcional para el colgado en truss (orientación vertical). GT50HR hook Abrazadera GT50HR TRUSS MOUNTING / MONTAJE EN TRUSS 1- Set the hook onto the truss.
- Page 3 GT-50HR July 2015 3- Use the bar holes to tilt the cabinet as per your desired inclination. Block it with the ball lock pin. Regule la inclinación de la caja. Blocar el punto de colgado mediante el pin pasador. 4- Use the optional SC-15 safety cable around the ACR-M8 eyebolt and fix it in the truss.
