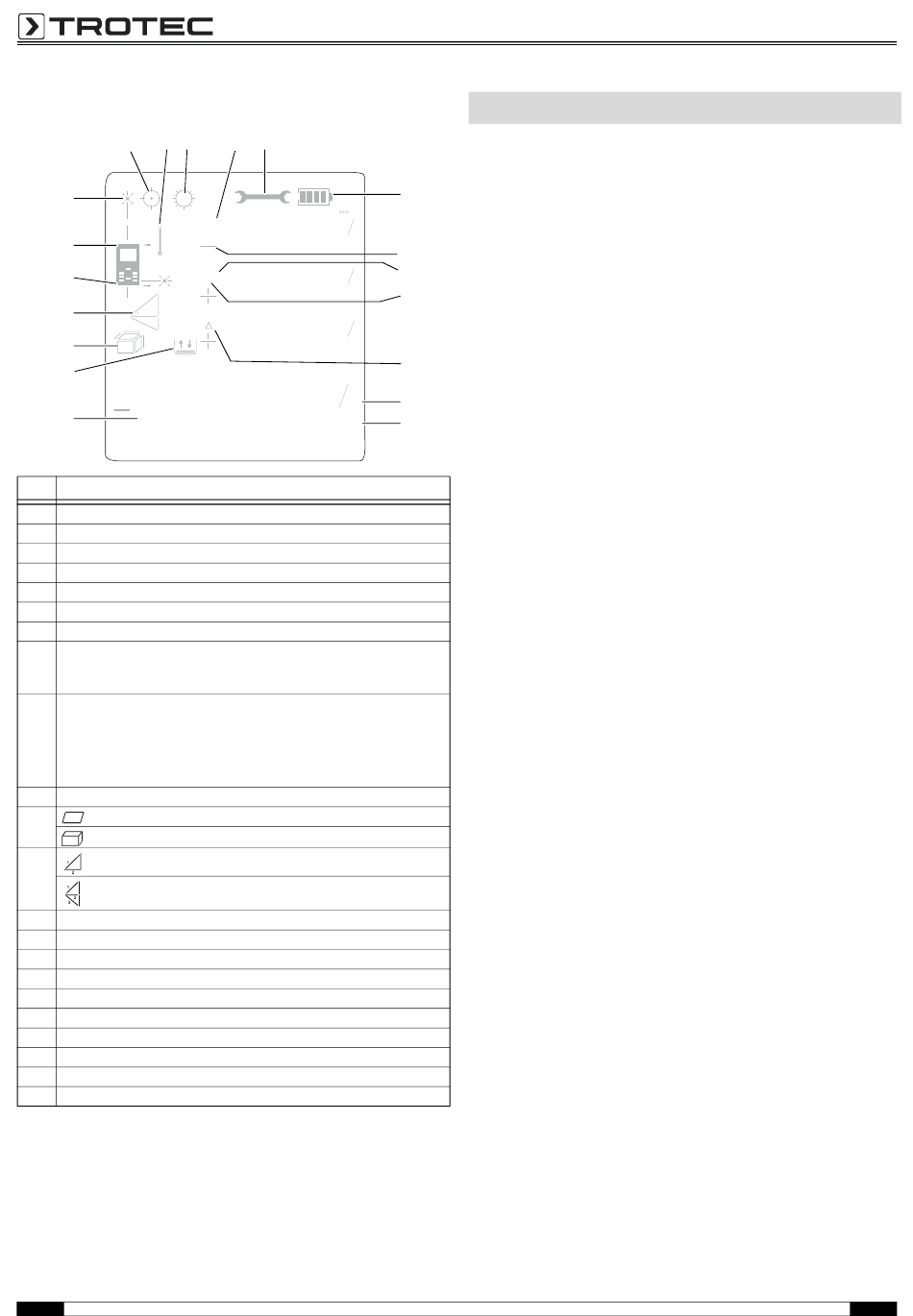

Display
28 29 30
27
26
25
23
1
0
00
2
3
2
1
1
22 3
3
2
21
00.000
20
No. Display element
12 Battery status
13 Horizontal measuring distance
14 Measured minimum value
15 Vertical measuring distance
16 Spare
17 Delta = maximum minus minimum
18 Complementary display when using imperial units
19 Display of the selected unit. Possible units are:
ft, in., m – for the three measurement value displays above
3 2 3 2
ft, ft , ft , in., m, m , m
20 Measurement value display:
The lower measurement value display indicates the last measured
value or the result of a calculation.
The three upper measurement value displays contain the past three
measured values, the minimum and maximum value or the measured
values to be added or subtracted.
21 Display inclination and history
22 Area measurement
Volume measurement
23 Indirect measurement (two auxiliary measurements)
Indirect measurement (three auxiliary measurements)
24 Spare
25 Reference value rear
26 Reference value front
27 Laser active
28 Error: calculation error
29 Error: temperature too high/low
30 Error: ambient light too intense
31 Spare
32 Measured maximum value
33 Device error warning
3
32 33
00.000
max
00
00
h
fti m
a
00.000
min
00
00
v
m
fti
00.000
00
00
fti m
00
00
fti m
– for the lower measurement value display
Operating manual – Laser distance measuring device BD20

Technical data

Model:
Weight:
Dimensions (H x W x D):
12
Measuring range:
Accuracy:
Measuring range resolution: 1 mm
13
Number of recordings
14
logged in the history:
15
Type of protection:
Operating temperature:
Storage temperature:
17
Laser output:
Laser class:
18
Power supply:
19
Automatic switch-off of the
device:
Automatic switch-off of the
laser:
*under favourable conditions (good target surface, room temperature) up
to 10 m
Scope of delivery
• 1 x Laser distance measuring device BD20
• 2 x Alkaline LR6 AAA, 1.5 V batteries
• 1 x Device bag
• 1 x Wrist strap
• 1 x Getting started guide
BD20
85 g
113 x 45 x 25 mm
0.05 to 60 m
±2 mm*
10
IP54
0 to 40 °C
-20 to 70 °C
< 1 mW (620-690 nm)
ll
2 x Alkaline LR6 AAA batteries, 1.5 V or NiMH
1.2 V to 1.5 V (rechargeable batteries)
Battery life approx. 5000 to 8000 measurements
After approx. 75 seconds of non-use
After approx. 30 seconds of non-use
