Summary of Contents for Trotec BO26

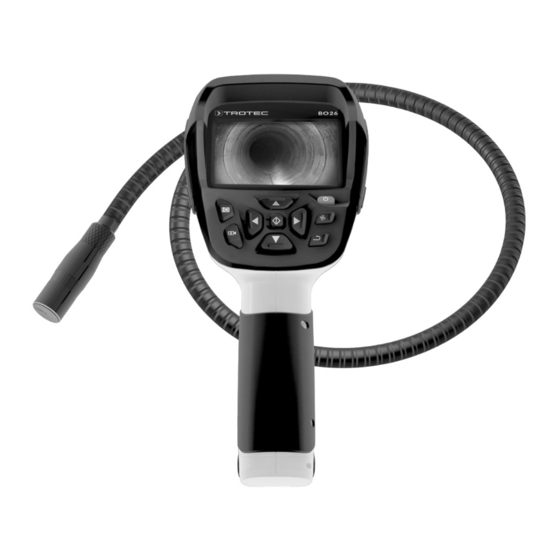

- Page 1 BO26 OPERATING MANUAL VIDEOSCOPE...
-
Page 2: Table Of Contents
• For reasons of safety, do not use the measuring probes and camera heads for inspections in moving parts. • Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition. videoscope BO26... -
Page 3: Information About The Device
To use the device for its intended use, only use accessories and Observe the personnel qualifications! spare parts which have been approved by Trotec. Caution Improper use Lithium-ion batteries might catch fire in case of Do not use the device in potentially explosive areas. - Page 4 Photo / video indication Zoom indication Operating element 22 23 24 Display Gooseneck probe Camera Battery compartment Operating elements Display and operating elements Operating element TV out SD card slot USB interface Charger connection Reset opening Headphone connection Speaker 15 14 videoscope BO26...
-
Page 5: Transport And Storage
• 1 x gooseneck probe 1 m • 1 x 3.7 V Li-ion battery • 1 x Transport case • 1 x Accessory kit with 45° mirror, hook and magnet attachment • 1 x Video cable (RCA) • 1 x USB cable • 1 x Quick guide videoscope BO26... -
Page 6: Operation
3. For underwater photos the gooseneck probe can be immersed. Make sure that the device itself does not make contact with water, otherwise it might be damaged. videoscope BO26... - Page 7 ð A scale on the screen indicates the current zoom level. can modify the corresponding value. Using the Setting the LED brightness Menu button (14), you can confirm your 1. Press the Left (16) or Right button (12) until the desired selection. brightness is set. videoscope BO26...
- Page 8 1. Via the menu item Mode, you can view a list of all saved photos or videos, as described above. ð The list of photos or videos is displayed. 2. Press the image rotation button (11). ð The submenu for deleting will be displayed. videoscope BO26...
-
Page 9: Errors And Faults
Check the connection displayed. error between between gooseneck probe camera and and device. device. The camera is Please contact the Trotec damaged. customer service. The recorded The SD card Use another SD card with video stutters. transfer speed is higher transfer speed. -
Page 10: Disposal
For further return options provided by us please refer to our website https://de.trotec.com/shop/. The separate collection of waste electrical and electronic equipment aims to enable the re-use, recycling and other forms... - Page 11 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
