Summary of Contents for Trotec BO21

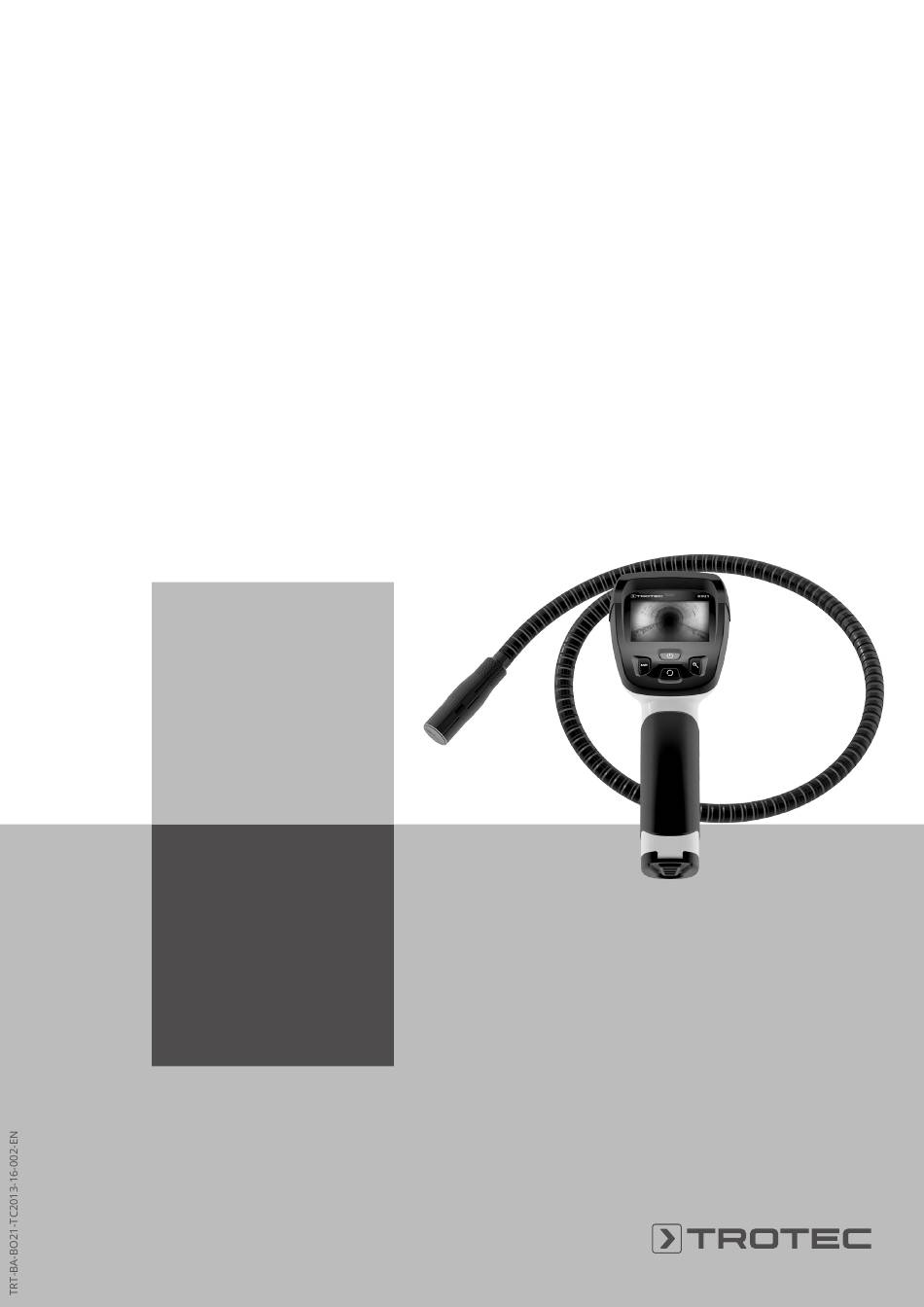

- Page 1 BO21 OPERATING MANUAL VIDEOSCOPE...
-
Page 2: Table Of Contents
• For reasons of safety, do not use the measuring probes and camera heads for inspections in moving parts. videoscope BO21... -
Page 3: Information About The Device
Do not use the device in potentially explosive areas. Do not use the control unit with display underwater. Never use the device Information about the device on persons or animals. Trotec accepts no liability for damages resulting from improper use. In such a case, any warranty Device description claims will be voided. -
Page 4: Transport And Storage
Display and operating elements Scope of delivery • 1 x Videoscope BO21 • 4 x Alkaline LR6 AA 1.5 V battery • 1 x Accessory kit with mirror, hook and magnet attachment 1.0x • 1 x Quick guide Transport and storage Note If you store or transport the device improperly, the device may be damaged. -
Page 5: Operation
To do so, insert the probe's detent pin into the corresponding recess at the plug of the camera housing until they are connected in a way preventing rotation. 2. The device port (17) comes with a screw joint. Connect it to the gooseneck probe. videoscope BO21... -
Page 6: Errors And Faults
European Parliament and of the Council of 6 September 2006 on batteries and accumulators. Please dispose of batteries and Repair accumulators according to the relevant legal requirements. Do not modify the device or install any spare parts. For repairs or device testing, contact the manufacturer. videoscope BO21... - Page 7 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
