Summary of Contents for Trotec PROMAT BD20

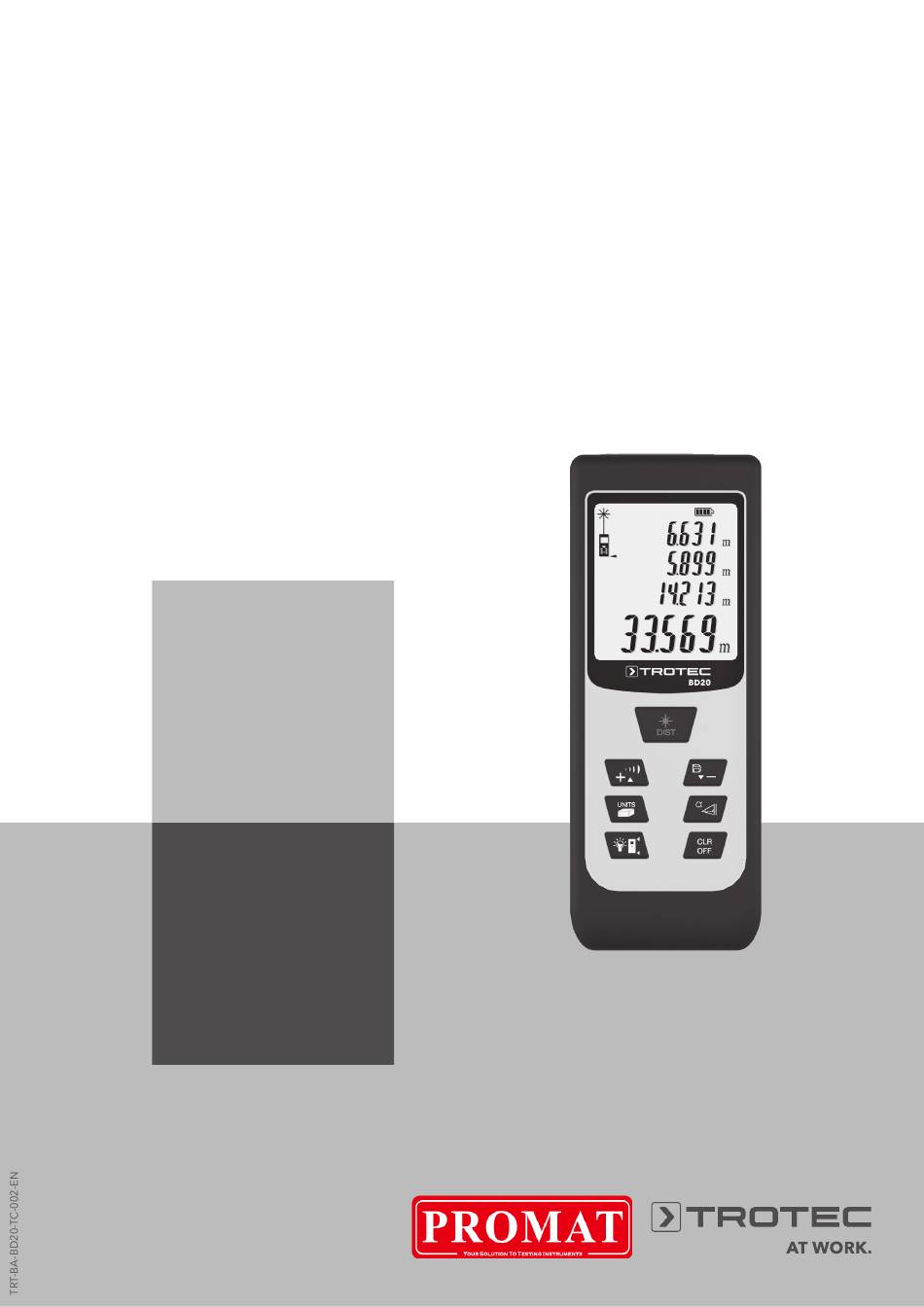

- Page 1 BD20 OPERATING MANUAL LASER DISTANCE MEASURING DEVICE...
-
Page 2: Table Of Contents
Disposal.................. 10 The scope of delivery may vary from product images. This Declaration of conformity ............10 ® document was created with all due care. TROTEC accepts no liability whatsoever for possible mistakes or omissions. Notes regarding the operating manual... -
Page 3: Information About The Device

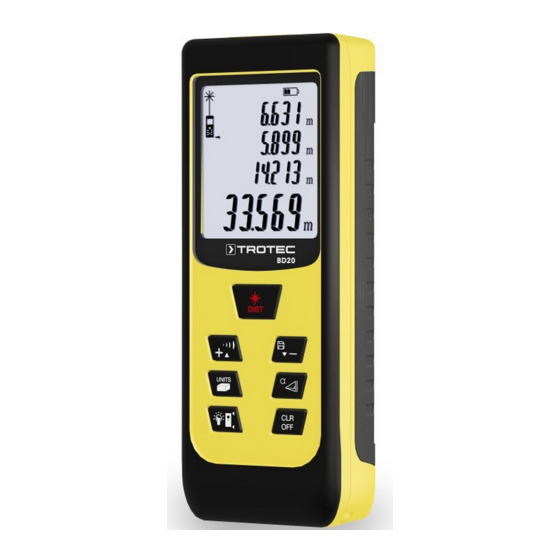

Device depiction Information about the device Description of the device The laser distance measuring device is used to determine distances, areas and volumes in interior spaces. Indirect measurements are carried out employing the Pythagoras function. The device is equipped with separate operating elements (2) for the different measuring functions. -
Page 4: Technical Data
Display Technical data Model: BD20 Weight: 85 g Dimensions (H x W x D): 113 x 45 x 25 mm Measuring range: 0.05 to 60 m 00.000 Accuracy: ±2 mm* Measuring range resolution: 1 mm 00.000 Number of recordings logged in the history: Type of protection: IP54 00.000... -
Page 5: Safety
To use the device for its intended use, only use accessories and Dangers can occur at the device when it is used by ® spare parts which have been approved by TROTEC untrained people in an unprofessional or improper way. Observe the personnel qualifications. -
Page 6: Transport And Storage
Transport and storage Operation Transport Inserting the batteries Use the supplied device bag (34) to transport the device. Storage When the device is not being used, observe the following storage conditions: • Dry. • Protected from dust and direct sunlight. •... - Page 7 Basic settings Carrying out measurements Switching the display illumination on/off Risk from laser radiation! Briefly press the Illumination key (9) to switch the display Class 2 laser radiation. illumination on/off. Lasers of class 2 only radiate in the visible range and during continuous wave operation (lasting beam) no more Switching the acoustic signal on/off than 1 milliwatt (mW) of output will be emitted.
- Page 8 Performing a volume measurement Indirect height measurement (Pythagoras) 1. Briefly press the Area/room volume key (10) twice. Using this method the length of an unknown straight-line segment can be determined via Pythagoras' theorem. This – The symbol for volume measurement appears on the method is suitable for e.g.
- Page 9 2. Aim the device at the highest point (A) and briefly press the Twofold indirect height measurement Switch-on/measurement button (5) once again. This method is suitable for e.g. height measurements. Make sure to hold the device as steady as possible and place it level on the ground with the two rear edges.
-
Page 10: Fault Indications
If the inclination angle in relation to the horizontal amounts to Fault indications more than 45° and is not indicated in the upper measurement The following fault indications could appear on the display: value display, please proceed as follows: Display Cause Remedy 1. -
Page 11: Disposal
At the end of its life, please dispose of this instrument with the named EC directives. in a manner appropriate to the relevant legal requirements. marking is found on the rear of the device. Manufacturer: Trotec GmbH & Co. KG Grebbener Straße 7 D-52525 Heinsberg Phone: +49 2452 962-400...
