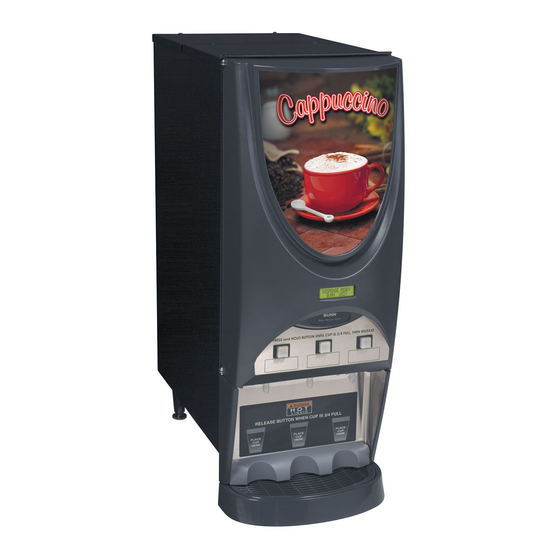

IMIX
-3S
®

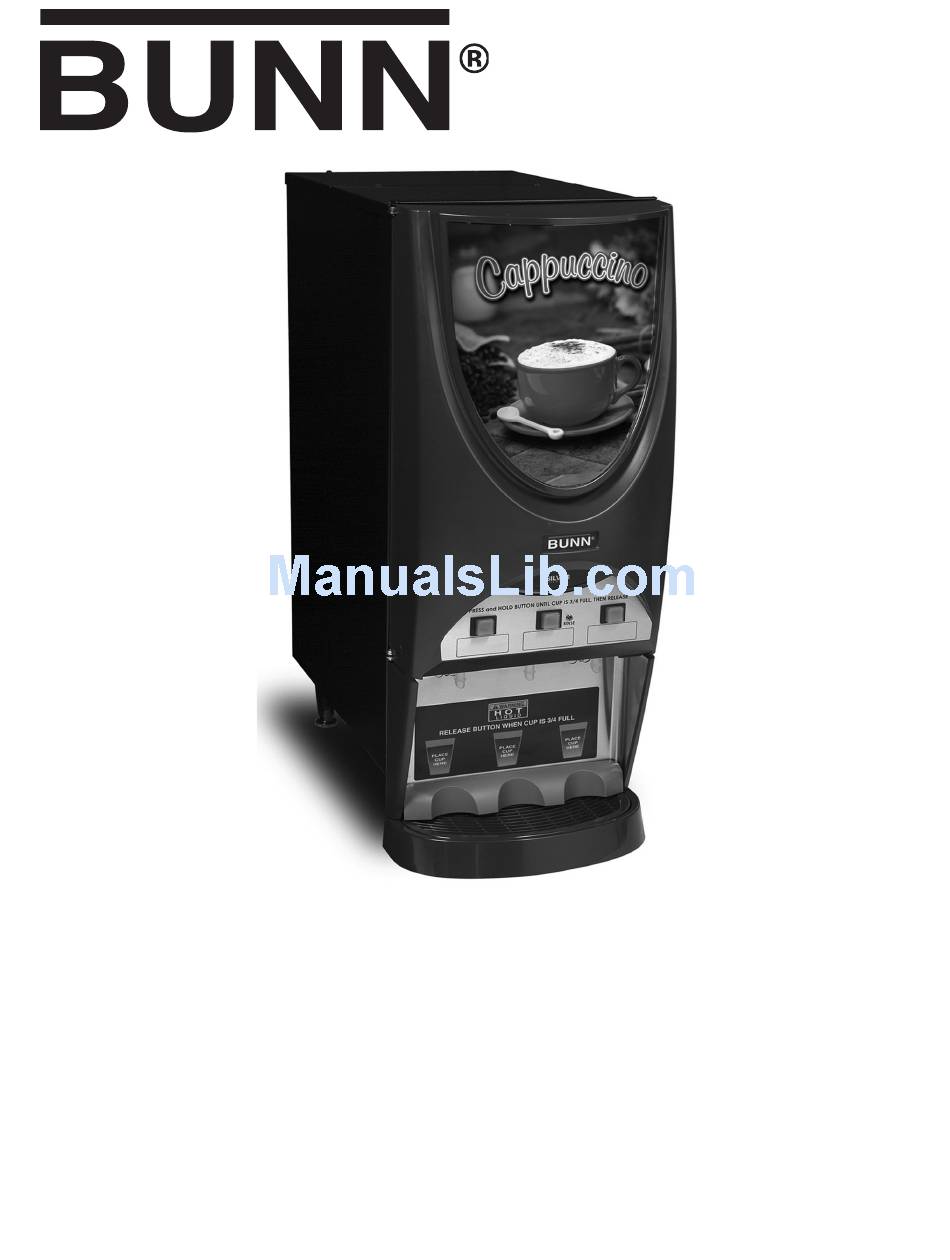

ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
www.bunnomatic.com
39047.0000B 09/07 ©2006 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMIX-3S and is the answer not in the manual?

Questions and answers

Related Manuals for Bunn iMIX-3S

Summary of Contents for Bunn iMIX-3S

  • Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 www.bunnomatic.com 39047.0000B 09/07 ©2006 Bunn-O-Matic Corporation...
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TITLE PAGE NO. Auger Drive and Hopper Assembly ...12 Covers, Panels and Drip Tray ...4 Dispense Valves and Lines ...20 Door, Lamp, Dispense Switches and Panels ...8 Electrical Controls ...22 Mixing/Whipper Chambers and Drive Motor ...14 Numerical Index ...24 Tank, Heater and Overflow Protection ...16 39047 060706...

  • Page 4: Covers, Panels And Drip Tray

    COVERS, PANELS AND DRIP TRAY 37 36 13 12 11 34 33 31 32 30 28 29 27 IMIX ® P3640.25 39047 091107...
  • Page 5 ITEM PART NO. QTY. 36958.0001 36958.0002* 01311.0003 01311.0000 36959.0001 36959.0002* 01311.0003 01311.0000 01382.0002 01308.0000 28368.0000 35926.0000 01311.0001 36967.0003 01311.0001 36968.0000 01311.0000 36986.0000 01311.0001 36230.0001 01311.0001 35912.0001 35912.0002* 01311.0003 01311.0000 34666.0000 02336.0000 01509.0001 26524.0000 26523.0000 28872.0000 00669.0005 36965.0001 01311.0001 36978.0000 37988.0000 34998.0000 36644.0000 01311.0001...
  • Page 6 COVERS, PANELS AND DRIP TRAY 37 36 (Continued) 13 12 11 34 33 31 32 30 28 29 27 IMIX ® P3640.25 39047 091107...
  • Page 7 ITEM PART NO. QTY. 37498.1000 28328.0011 02536.0000 36983.0000 37462.0000 01311.0001 36985.0000 36984.0000 36972.0000* 01311.0000 39027.0000 36743.0000 01360.0002 36974.0001 01311.0001 02336.0000 36398.0000 02434.0008* 01526.0001 03996.0000 26528.0000 36963.0000 36229.0001 01311.0001 36961.1001 36961.0002* 01311.0003 01311.0000 00831.0000 00656.0000 36896.0000 37881.0000 13255.0003 02434.1000 02434.1001 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. COVERS, PANELS AND DRIP TRAY DESCRIPTION Panel W/Decal, Splash (Includes items 19, 21, 22, 23, &...

  • Page 8: Door, Lamp, Dispense Switches And Panels

    DOOR, LAMP, DISPENSE SWITCHES AND PANELS IMIX ® P3641.45 39047 091107...
  • Page 9 Plug, Door Hinge Screw, Pan Head Plascrew #6 - 32 x .375" Door Keylock W/Keys, Door Decal, Silver Series Plug, .75" x .625" hole Decal, BUNN Plate Assy, Switch Switch, Dispense Lamp, LED Cover, LCD Door Lens Screw, .25" Shoulder #8-32...
  • Page 10 DOOR, LAMP, DISPENSE SWITCHES AND PANELS (Continued) IMIX ® P3641.45 39047 091107...
  • Page 11 DOOR, LAMP, DISPENSE SWITCHES AND PANELS ITEM PART NO. QTY. 36659.0001 01311.0000 01403.0000 34667.0000 02336.0000 36669.0000 01311.0001 40031.1000 40031.1001 40032.0000 28335.0000 NOTE: The following items are not illustrated 26444.0000 - - - - - - - - 36887.0003 26537.0000 26537.0001 26537.0003 * Indicates the part number listed is for reference only.

  • Page 12: Auger Drive And Hopper Assembly

    AUGER DRIVE AND HOPPER ASSEMBLY 11 10 12 9 IMIX ® P3642.50 39047 060706...

  • Page 13: Auger Drive And Hopper Assembly

    ITEM PART NO. QTY. 37010.1001 36653.0001 32337.0000 32386.0001 28067.0000 26940.0002 37011.0001 39442.0000 25903.0000 25743.0000 36774.0000 36770.0000 01326.0002 37539.1000 36970.0000 01311.0000 20960.0000 00991.0002 - - - - - - - - 37037.0001 01311.0000 26401.0000 36773.0000 35260.0000 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. AUGER DRIVE AND HOPPER ASSEMBLY DESCRIPTION Hopper Assy (Includes one each of items 1-12)

  • Page 14: Mixing/Whipper Chambers And Drive Motor

    MIXING/WHIPPER CHAMBERS AND DRIVE MOTOR IMIX ® P3247.75 39047 060706...
  • Page 15 MIXING/WHIPPER CHAMBERS AND DRIVE MOTOR ITEM PART NO. QTY. 28295.0000 28295.0001 01311.0001 28297.0001 25732.0000 25733.0003 25734.0000 25734.0002 25736.0000 24733.0010 25902.0000 26356.0000 28866.0000 28865.0000 28867.0000 28428.1000 28428.1002 32906.0001 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. DESCRIPTION Fan &...

  • Page 16: Tank, Heater And Overflow Protection

    TANK, HEATER AND OVERFLOW PROTECTION IMIX ® P3248.50 39047 091107...
  • Page 17 TANK, HEATER AND OVERFLOW PROTECTION ITEM PART NO. QTY. - - - - - - - - 37098.0002 00970.0000 36226.0000 00970.0000 02536.0000 20936.1000 20203.0100 01501.0000 00908.0000 36741.1000 36741.1001 36740.1000 00908.0000 12398.0000 36220.0000 00908.0000 05515.0000 - - - - - - - - 35940.0002 00908.0000 29329.1000...
  • Page 18 TANK, HEATER AND OVERFLOW PROTECTION (Continued) IMIX ® P3248.50 39047 091107...
  • Page 19 TANK, HEATER AND OVERFLOW PROTECTION ITEM PART NO. QTY. 37297.0000 38948.0000 20976.0017* 20976.0055* 36233.0000 36233.0001 32283.0000 01592.0001 35942.0001* 00970.0000 36222.0001 28526.1000 28526.1001 28526.1002 28526.1003 20976.1000 20976.1001 20976.1002 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. DESCRIPTION Elbow, .25"...

  • Page 20: Dispense Valves And Lines

    IMIX ® DISPENSE VALVES AND LINES P3643.75 39047 091107...

  • Page 21: Dispense Valves And Lines

    ITEM PART NO. QTY. 26369.1000 24733.0011 39285.1001 39285.1002 01326.0000 28526.0027* 21801.0002 12422.0001 25803.0000 37970.0000 28526.1001 28526.1002 28526.1003 * Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement. DISPENSE VALVES AND LINES DESCRIPTION Plug (Includes item 2) O-Ring Valve, Liquid Dispense 120V (Includes item 2) Valve, Liquid Dispense 230V (Includes item 2)

  • Page 22: Electrical Controls

    ELECTRICAL CONTROLS IMIX ® P3644.55 39047 091107...
  • Page 23 ITEM PART NO. QTY. - - - - - - - - 01311.0000 20762.0000 28224.0000 02301.0001 00720.0000 07073.0001 00450.0000 28855.1000 01510.0000 00973.0000 28869.0002 01311.0001 00715.0000 00713.0000 28327.0002 39642.0000 02308.0000 00970.0000 28860.0000 28860.0001 00973.0000 00970.0000 23522.0000 23697.0000 28857.0000 28856.0000 26444.0000 00669.0005 The following items are not illustrated 20630.0008 39014.0000...

  • Page 24: Numerical Index

    PART NO. PAGE NO. PART NO. 00450.0000... 23 20976.1001... 19 00656.0000... 7 20976.1002... 19 00669.0004... 9 21801.0002... 17,21 00669.0005... 5,23 22728.0000... 17 00713.0000... 23 23522.0000... 23 00715.0000... 23 23697.0000... 23 00720.0000... 23 24457.0002... 9 00831.0000... 7 24733.0010... 15 00908.0000... 17,23 24733.0011...
