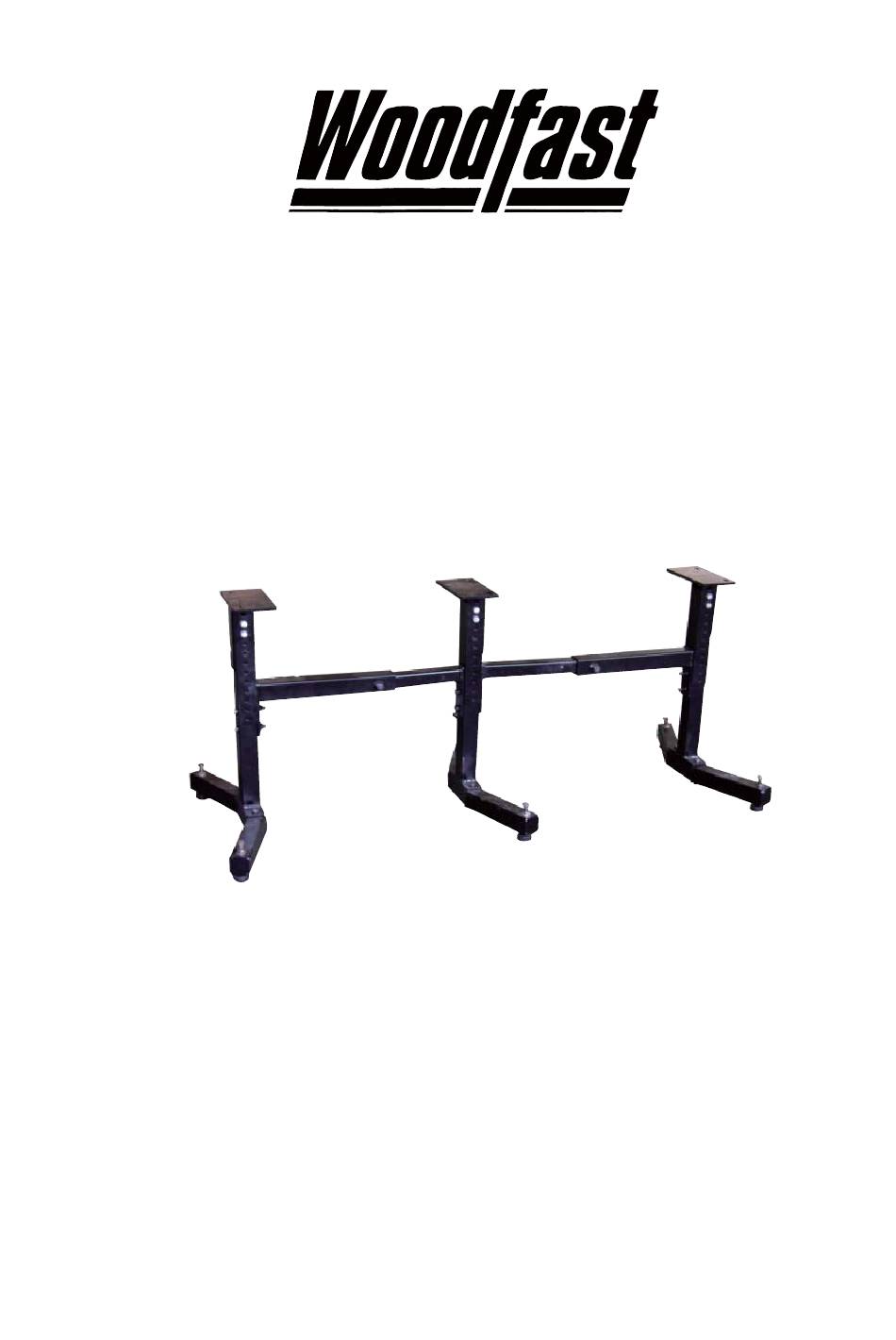

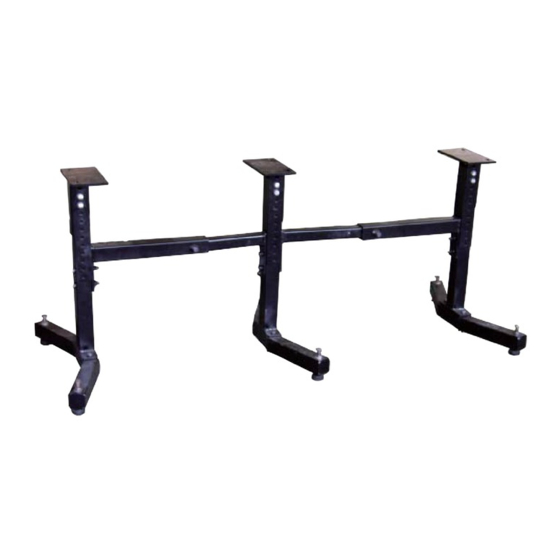

- Page 1 M305 Mini Lathe Standard Stand Extension Stand Read the instruction manual carefully before assembling. Keep it in order for further reference.
-
Page 2: Table Of Contents
Table of Contents Specifi cations...............................1 Unpacking and Contents..........................2 Assembling Base to Column........................3 Installing Extension Supports to Base and Column Assembly..............3 Connecting and Adjusting the Extension Supports..................4 Adjustments..............................4 Determining Proper Lathe Height.........................4 Adjusting for Lathe Length..........................5 Leveling the Lathe Stand..........................5 Installing the Optional Lathe Extension Stand....................5 Maintenance..............................6 Exploded Drawing for standard stand......................7... -
Page 3: Unpacking And Contents
Contents of Package Unpacking and Checking Contents Unpack your lathe stand from its carton and check to see that you have all of the following items. Do not use this stand if any of these items are missing. You may cause injury to yourself or damage to your machine. -
Page 4: Assembling Base To Column
Assembly Assembling Base to Column 1.) Locate one Base (part #1) and one Column (part #9). 2.) Install two bolts (part #10) and two washers (part #11) through the Column fl ange and into the Base. 3.) Add two washers (part #11) and two hex nuts (part #12) to the bolts underneath the Base. -
Page 5: Connecting And Adjusting The Extension Supports
Connecting and Adjusting the Extension Supports 1.) Slip the Inside Extension Support bracket (part #15) into the Outside Extension Support bracket (part #14). 2.) Add two bolts (part #16) and two hex nuts (part #17) to the welded hex nuts located on the Outside Extension Support bracket (part #14). -
Page 6: Adjusting For Lathe Length
Adjusting for Lathe Length The Woodfast Lathe Stand can be adjusted from 500 mm to 810 mm in length. 1.) Measure the length of your lathe from center of one bolt hole to the center of the other. 2.) Loosen the two locking bolts (part #16) on the... -
Page 7: Maintenance
5.) Repeat the steps in “Connecting and Adjusting the Extension Supports” located on page 4. 6.) Repeat the steps in “Determining Proper Lathe Height” also on page 4. 7.) Next, adjust for lathe bed distance, following the instructions in “Adjusting for Lathe Length” located on page 5. -
Page 8: Exploded Drawing For Standard Stand
Exploded Drawing for Standard Stand Parts List for Standard Stand Ref No. Description Ref No. Description Base Washer 10.5 Hex. Bolt M12x96 Hex. Nut Hex. Nut M12 Mount bracket Washer 13 Extension support (outside) Washer 8.5 Extension support (inside) Foot Hex. -
Page 9: Exploded Drawing For Extension Stand
Exploded Drawing for Extension Stand Parts List for Extension Stand Ref No. Description Ref No. Description Base Washer 10.5 Hex. Bolt M12x96 Hex. Nut M10 Hex. Nut M12 Mount bracket Washer 13 Extension support(outside) Washer 8.5 Extension support(inside) Foot Hex. Bolt M10x25 Washer 8.5 Hex.Nut M10 Retaining Ring 8...
