Structure

On the inner side of the instruction cover are placed the pictures with elements numerated below.
1 - IN – guitar signal input
2 - TUNER – guitar tuner connector
3 - OUT – amp's signal output connector
4 - SEND – effect's loop output connector
5 - RETURN – effect's loop input connector
6 - OUT SW1&2 and SW3&4 – output connectors for amp's switching by its footswitch input
7 - WAH-PAD – wah-pad connector
8 - MIDI OUT – MID output connector
9 - POWER 12V DC – 12V DC power supply connector
10 - OUT 9V DC – Effects' power supply connectors
11 - Presets selecting footswitches
12 - Indicators
13 - Display
14 - Programming buttons
15 - AUX connector
16 - Memory access lock switch
17 - USB connector

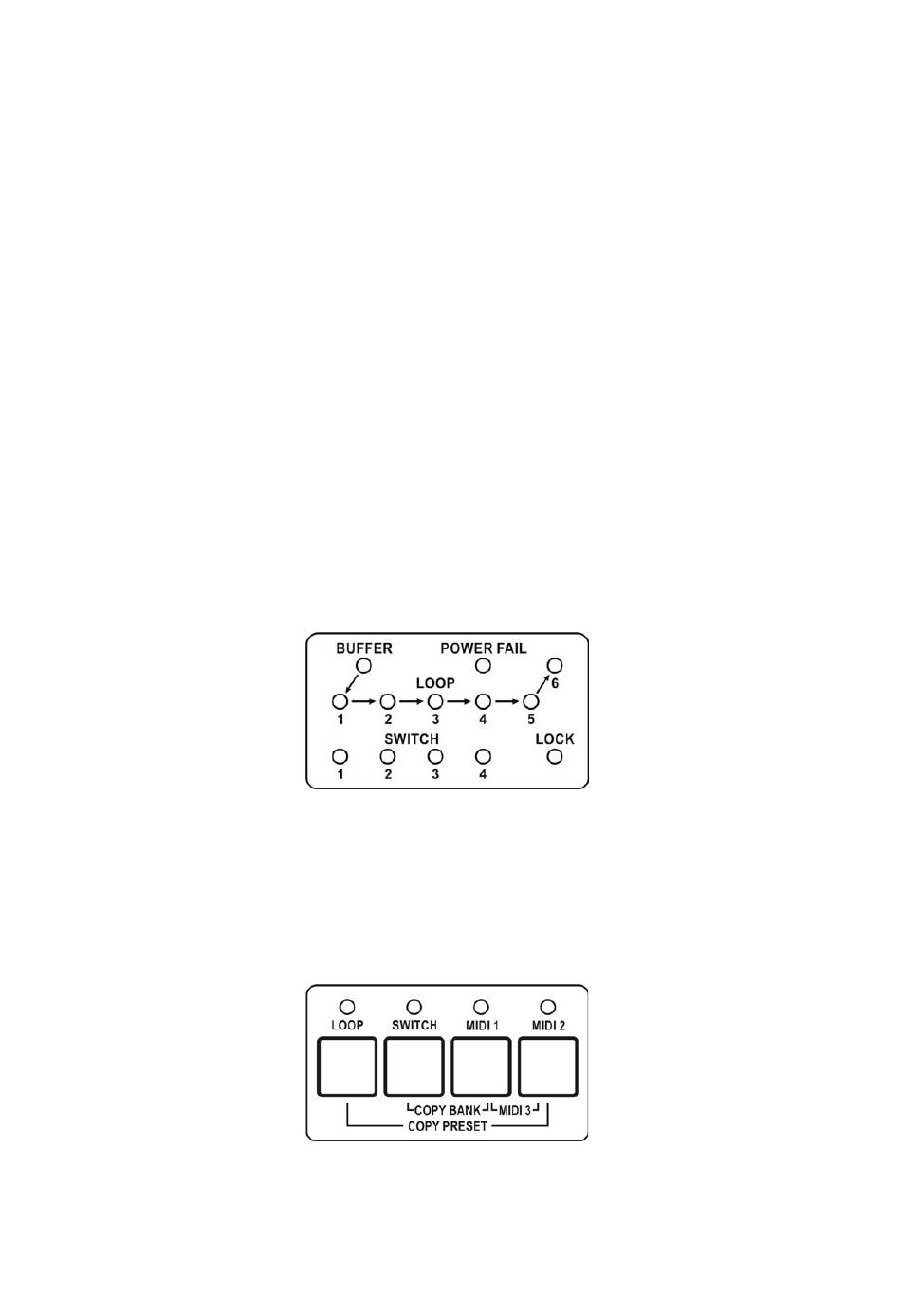

BUFFER – Buffer indicator
LOOP 1 to 6 – Indicators signalising switching on LOOPs
POWER FAIL – Voltage failure indicator (voltage below 11.2V or above 12,8V)
SWITCH 1 to 4 – SW1 to SW4 switch outputs' status indicators
LOCK – Memory access LOCK indicator
LOOP – loops programming button and indicator
SWITCH – amp's controlling outputs button and indicator
MIDI 1 – button and indicator for editing MIDI program of MIDI 1 device
MIDI 2 – button and indicator for editing MIDI program of MIDI 2 device
