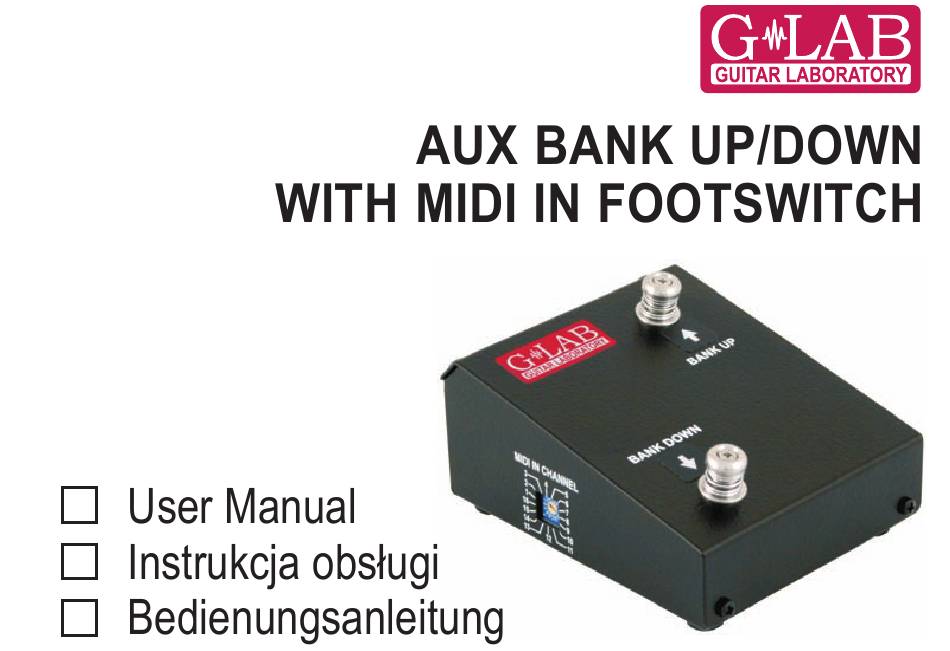

- Page 3 G LAB AUX BANK UP/DOWN with MIDI IN FOOTSWITCH is an expansion module for GSC-3 and GSC-2 controllers with two footswitches to switch the banks which enable working with ten presets in the bank and a MIDI IN input enabling to control the GSC...
- Page 4 Structure 1 - BANK DOWN footswitch 2 - BANK UP footswitch 3 - MIDI IN channel setting switch...
- Page 5 4 - MIDI IN connector 5 - MIDI THRU connector 6 - Cable with AUX connector to connect GSC controllers Connecting the controller Before connecting the GSC-2 controller check if it posses firmware version 2.20 or higher. If it doesn’t it is needed to upgrade controller program by using G2SOFT.
- Page 6 Before connecting the expansion module it is needed to set AF2 (AUX input function No. 2) at LOOP button settings (footswitch No. 8) and to choose cb2 or cb3 change bank mode (by using BANK UP/BANK DOWN footswitches). The module should be connected to the AUX connector.
- Page 7 Technical parameters Dimensions: depth 115 mm width 90 mm heigh 62 mm Weight 350 g Power supply 12V from AUX output...
- Page 8 EMC/EMI & Certificate of conformity EMC/EMI This device has been designed and manufactured to conform with directives and standards in the field of safety operations and electromagnetic interference. This device uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 9 Certificate of Conformity ELZAB S.A., ul. Kruczkowskiego 39, 41-813 Zabrze, Poland, hereby declares on own responsibility that the following product: G LAB AUX BANK UP/DOWN WITH MIDI IN FOOTSWITCH that is covered by this certificate and marked with CE 07 label conforms with following standards: Safety requirements for mains operated electronic and PN-EN 60065:2004...
- Page 10 DO NOT PLACE THIS PRODUCT INTO THE WASTE CONTAINER ! This device is marked with a cross-lined waste container symbol according to 2002/96/EU Directive on Waste Electric and Elec- tronic Equipment. Such marking informs that after usage equipment can not be trashed together with other household waste.
