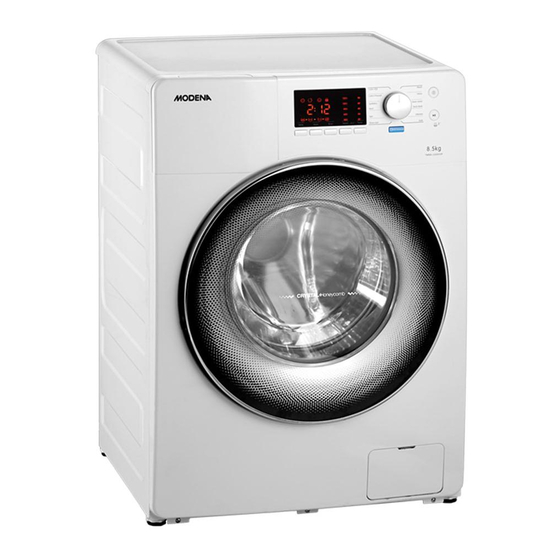

Modena Tiziano Series User Manual Book

Hide thumbs Also See for Tiziano Series:
Table of Contents

Advertisement

Quick Links

User
Manual Book
Washing Machine
Tiziano Series
WF 830

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tiziano Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Modena Tiziano Series

Summary of Contents for Modena Tiziano Series

  • Page 1 User Manual Book Washing Machine Tiziano Series WF 830...
  • Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product.
  • Page 3 CONTENTS PAGE. • Introduction • Part 1 : Name of Parts • Part 2 : Understanding Control Panel • Part 3 : First Step Before Installation • Part 4 : Installation • Part 5 : How to Use • Part 6 : Maintenance •...

  • Page 4: Parts Name

    Part 1: Parts Name Control Panel 6. Inlet Valve (Cold) 11. Back Cover 2. Drawer Handle 7. Drain Hose Clips 12. Power plug Door 8. Power Cord 4. Pump Case Cover 9. Drain Hose Legs 10. Trasit Bolt * Features and accessories are depended on product series.

  • Page 5: Understanding Control Panel

    Part 2: Understanding Control Panel WF 830 Control Panel Description 1. Power Button 6.Speed Button 2. Program Select 7.Rinse Button 3. Start/Pause Button 8.Delay Button 4.Anti-bacteria Button 9.Wash Button 5.Temperature Button Part 3: First Step Before Installation When the installation is ready, make sure that the power supply has fuse with the specification of 15A, 220V, 50 Hz.

  • Page 6: Part 4: Installation

    Check all connections on input water supply, valve, and faucet to avoid water leakage. The result of the washing machine depends on the effectiveness of the detergent. The dirt on the clothes may not be able to vanish by using bad quality detergent. Please clean the dirt on the clothes like explained on this book before being washed by washing machine.
  • Page 7 Leg adjustment Install or place the washing machine at a temperature of no less than 0°C and not outdoors because it may damage the programming controller Note: To facilitate the installation, the feet may not be locked from the factory. Please be sure to lock all the feet before adjusting the level! 3.
  • Page 8 b) Drainage - If there is any leakage with the hose after the connection, then repeat the steps to connect the inlet hose. - Do not bend the hose. - Check for the inlet hose connection carefully before using the washer every time. Connect the drain hose - The drain hose should be placed at a height of 65-100cm above the floor.

  • Page 9: Part 5: How To Use

    Attention! Before operating the machine, it is suggested to check things as follows: Is the washing machine door closed properly? Is the water faucet opened? Is the drain hose placed correctly? Is the electricity connected? Part 5: How to Use In every washing make sure that: The connector of water supplies are safe, the water tap is turned on and the drain hose has been placed in the right position.
  • Page 10 Detergent container for Prewash I → Powder detergent Detergent container for main wash II → Powder or liquid detergent Container for softener. ( Caution: Don’t open the drawer during washing process.
  • Page 11 Pull the detergent drawer. Pour the detergent and softener before starting the washing program For the pre wash and main wash, it is recommended to use recommended detergent for the front opening washing machine (front loading) and follow the instructions for using the detergent as stated on the packaging.
  • Page 12 Attention! When washing, it is recommended to sort the laundry and pick the laundering programs according to the type of material, color and temperature of water used (see the care label on the clothes). Main Washing Program (Main Programs) Based on the type of fabric, the following is the available main wash programs: Cotton You can select this procedure to wash the daily washable clothes.
  • Page 13 Spin Program to spin spare water from the laundry. Rinse + spin Suitable for laundry that uses spin only or spin with softener. Quick wash This program is used to shorten the washing time. Use this function for small amount of laundry with low dirtiness level.
  • Page 14 Temperature Use this button to select the water temperature. Available selections (from cold to max ℃) vary for each cycle. The targeted setting will blink on the screen during the selection process. Spin Speed Use the button to select a spin speed. Available selections (from 0 to max rpm) vary for each cycle.
  • Page 15 Unbalance protection When the machine is ready to spin, the washer may take a few time to balance the clothes. If the clothes is still unbalance in the drum, the spinning speed will slow down to avoid vibration. If the clothes in drum is only a few, the machine may not to spin due to the unbalance protection.

  • Page 16: Maintenance

    Part 6: Maintenance MODENA washing machine is specifically designed for long term use. Thus it does not require complex treatment. However, there are some things that recommended for your washing machine to make sure the quality of the washing machine is maintained.
  • Page 17 properly. If your detergent drawer is the one indicated in the following figure: Note: Lift the rear part of the siphon to remove it as illustrated. After performing the above mentioned cleaning procedures, replace the siphon back to its seating and push its front section downwards to make sure that the locking tab engages.
  • Page 18 disposal. Remove the filter by turning it counter-clockwise and pull out. Rinse the filter by putting it under running water. Make sure that the particles contained in the filter have been lifted. Replace the filter into its place by turning it clockwise until it clicks into position.
  • Page 19 If there is damage to the power cord immediately contact the MODENA call center for replacement. Replacing the power cord must be done by personnel with experience and understanding of electricity. Never replace the power cord by yourself, due to the dangers that could lead to harm to you and the other.
  • Page 20 This appliance cannot be used by children and persons with limited physical, sensory or mental capabilities or lack of experience and knowledge. The glass on the door of the washing machine may become hot when using programs with high temperatures. Keep the unit out of the children. Children are forbidden to play with this appliance and should be watched closely.

  • Page 21: Troubleshooting

    Part 8: Troubleshooting Machine may have switched to self-protection mode due to an Program cannot be infrastructure problem (such as line voltage, water pressure, etc.). started or selected. Reset your machine by pressing ’Start/pause’ button for 3 second. Machine might be standing unbalanced. Adjust the feet to level the machine.
  • Page 22 Timer may stop during spinning step. The automatic unbalanced load detection system might be activated due to unbalanced distribution of the laundry drum. Machine does not continue to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment.
  • Page 23 The heater does not work Please contact a technician. There is a temperature sensor fault Please contact a technician. Communication Failures Please contact a technician. Inverter Failures Please contact a technician. The procedure running is not Turn the cycle selector to the cycle corresponded to the cycle that the corresponded to the procedure working on knob points.

  • Page 24: Specification

    Part 9 : Specification WF 830 MODEL Type Front Loading Capacity (kg) Spin speed (rpm) 1400 Color White (W) Inner drum material Stainless Number of washing program (+ drying) 12 + 6 optional Display Temperature adjustment Quick Wash Extra rinse Child lock Door lock Power consumption with cold water (watt) *...
  • Page 25 Appendix 1 : International Textile Care Label (ITCL) Notice the wash code symbols on attached clothing labels. In taking care of your clothes, preferably before washing by the machine, you need to pay attention to the wash code symbols on the label attached to your clothing, the description is outlined below: Normal wash action Washing temperature max.
  • Page 26 Drying with machine dryer at high Drying by stretched temperatures Drying by swing Drying with machine dryer at low temperature Drying using hangers clothing Do not dry using the dryer Appendix 2 : Helpful Instructions in Removing the Stains Stain removal instructions below are approximate and can only be used on clothing / materials that can be washed.
  • Page 27 Chocolate: Soak the clothes in cold water for a few moments. Rub with detergent, and rinse with warm water. If there is residual fat, get rid of it using oxygen water. Fruit: Pour cold water on the stain and do not use warm water to rinse it. Let it be for 2 minutes and remove the stains with white vinegar and rinse it.
  • Page 28 11/20...
