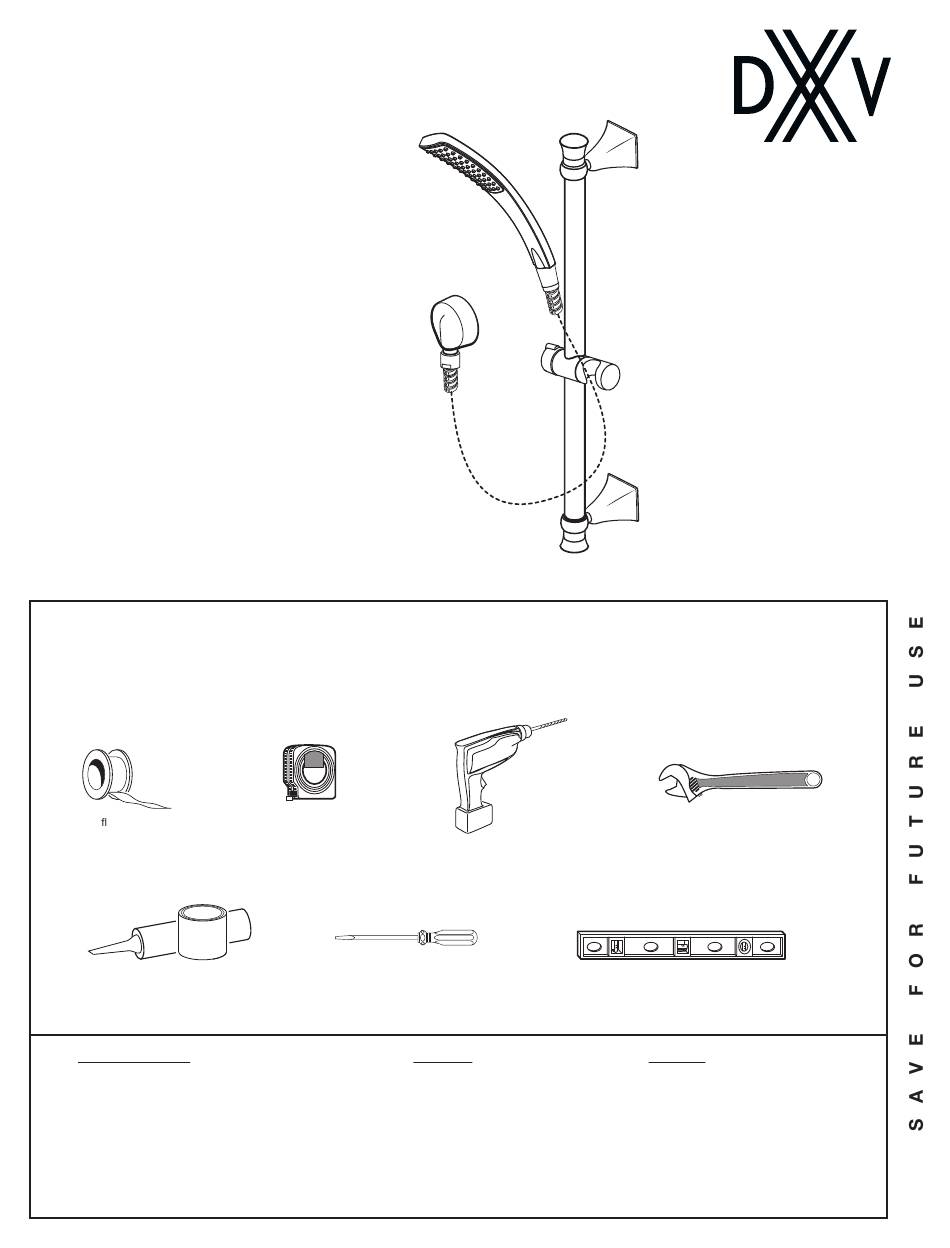

INSTALLATION INSTRUCTIONS
Keefe
®
Personal Hand Shower
Model D35104780
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Te on Tape
Plumbers' Putty or Caulking
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
10'
Tape Measure
Flat Blade Screwdriver
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Drill
Level
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
Adjustable Wrench
M965482 Rev. 1.5 (5/17)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV Keefe D35104780
Summary of Contents for DXV Keefe D35104780
- Page 1 Keefe ® Personal Hand Shower Model D35104780 Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 ROUGHING-IN DIMENSIONS: • For reference 1-1/16" (27 mm) 1/2” (13 mm) WALL SUPPLY WITH BUILT IN BACK FLOW 2-9/16" PREVENTER (65.9 mm) N.P.T. 1-7/16" (37 mm) 48" - 60" (1219 - 1524 mm) OPTIONAL TO FINISHED FLOOR 23-3/8" 1/2 NPSM HOSE CONNECTION (593 mm) RUBBER GASKET...
- Page 3 INSTALL ADJUSTABLE SHOWER BAR • Install the ADJUSTABLE SHOWER BAR (1) onto the MOUNTING BRACKETS (4). Push ADJUSTABLE SHOWER BAR (1) flush against finished wall. • If the ADJUSTABLE SHOWER BAR (1) is aligned and level, tighten the upper and lower SET SCREWS (5) with Hex Wrench supplied to secure ADJUSTABLE SHOWER 23-3/8"...
- Page 4 Keefe ® Personal Hand Shower MODEL NUMBER D35104780 Replace the “YYY” with appropriate finish code POLISHED CHROME BRUSHED NICKEL D35104781.XXX HAND SHOWER M964565-0070A MOUNTING KIT H960440.XXX HOSE & SEALS M964561-YYY0A HAND SHOWER BRACKET D35700035.XXX WALL ELBOW M964546-0070A SET SCREW M965482 Rev. 1.5 (5/17) - 4 -...
