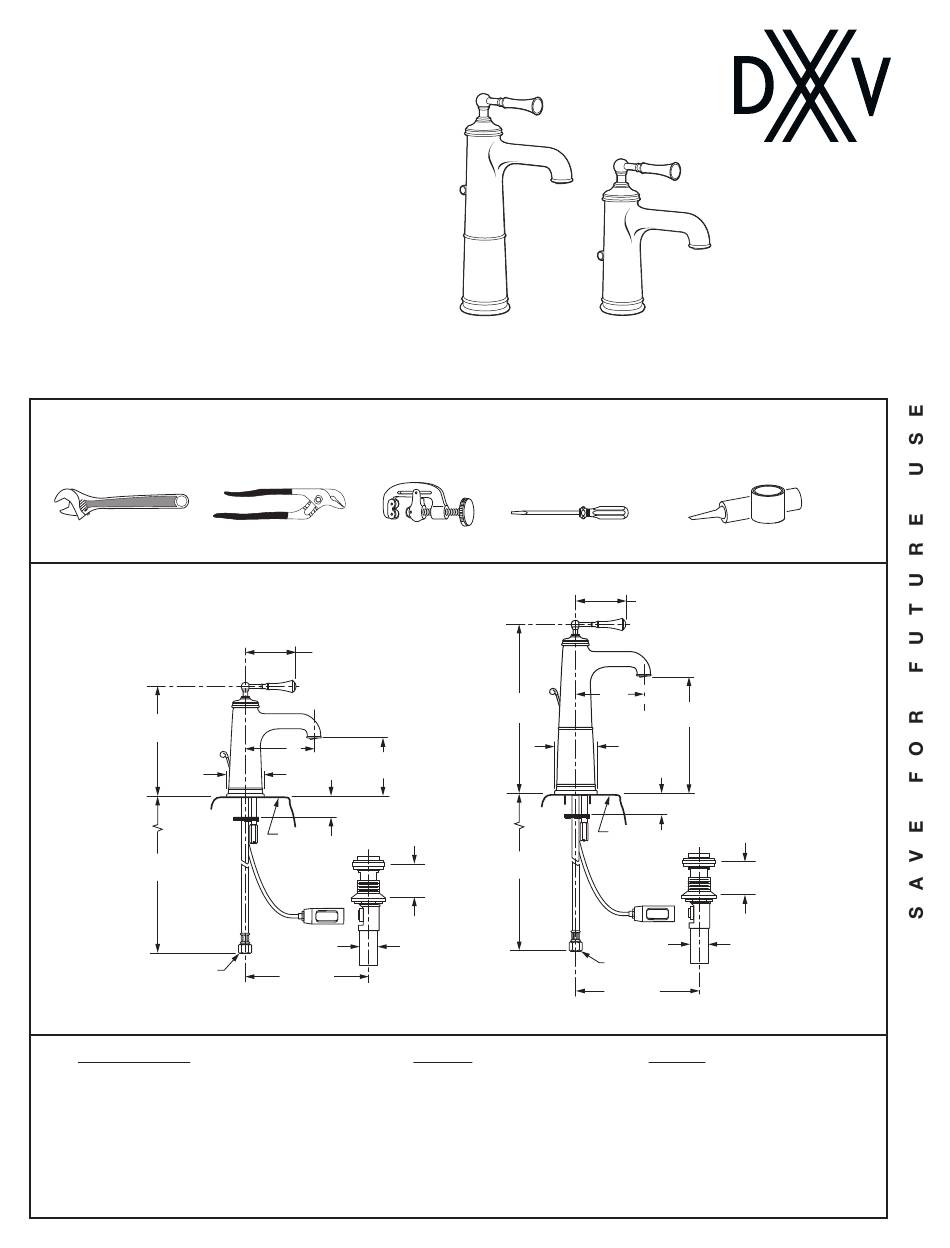

INSTALLATION INSTRUCTIONS

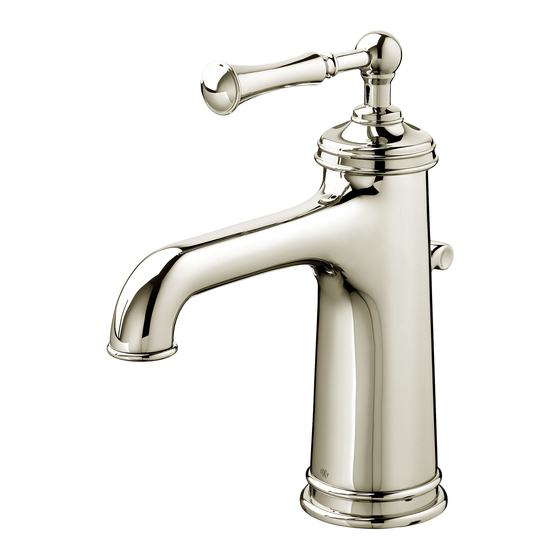

Randall
®
Single Lever Lavatory
and Vessel Faucets
Lavatory
Model D3510210C
Vessel
Model D3510215C
Model D3510216C
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Adjustable Wrench
ROUGHING-IN DIMENSIONS:
• For reference
• NOTE: MOUNTING HOLES ARE 1-3/8" D.
8-1/2"
(216 mm)
2-3/4" DIA.
(70 mm)
24"
(610 mm)
3/8" (10 mm)
SUPPLIES
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Channel Locks
Tubing Cutter
4-3-16"
(106 mm)
6"
4-1/4"
(152 mm)
(108 mm)
1-3/4" (45 mm)
MTG.
SURFACE
MAX 2"
(51mm)
1-1/4" O.D.
(32 mm)
12" MAX.
(305 mm)
NOTE: MOUNTING HOLE
1-3/8" DIA. (35 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Flat Blade Screwdriver
(105 mm)
6"
12-5/16"
(152 mm)
(316 mm)
3-1/16" DIA.
(77 mm)
2-1/16" MAX. (53 mm)
MTG.
SURFACE
24"
(610 mm)
3/8" (32 mm)
SUPPLIES
12" MAX.
(305 mm)
- 1 -
Plumber's Putty or Caulking
4-1/8"
8-1/8"
(206 mm)
MAX 2"
(51 mm)
1-1/4" O.D.
(32 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965704 Rev. 1.1 (2/17)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV Randall D3510210C
Summary of Contents for DXV Randall D3510210C
- Page 1 Model D3510210C Vessel Model D3510215C Model D3510216C Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 INSTALL FAUCET (LAVATORY AND VESSEL FAUCETS) Turn off hot and cold water CAUTION supplies before beginning. • Install O-RING (1) into O-ring groove of FAUCET BASE (2). • Feed FAUCET SUPPLY TUBES (5) and SHANK (3) and DRAIN CABLE ASSEMBLY (9) through mounting hole of lavatory or mounting surface.
- Page 3 POP-UP DRAIN Fig. A. Fig. B. • Remove CLEAR PLASTIC COVER (1). Fig. A. • Remove CARDBOARD SPACER (2) from DRAIN under DRAIN POP-UP (3). Fig. A. BODY • Tighten TAILPIECE (4) on DRAIN BODY before installing DRAIN BODY. Fig. B. REMOVE FLANGE Fig.
- Page 4 ATTACH CABLE CONNECTOR Fig. A. Fig. B. • Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. • Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4"...
- Page 5 TEST INSTALLED FITTING • With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. • Remove AERATOR (3). • Operate HANDLE (1) to flush water lines thoroughly. • Replace AERATOR (3). CHECK DRAIN CONNECTIONS •...
- Page 6 Speed Connect Drain ® Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...
- Page 7 STOPPER INSTALLATION PROCEDURE The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed) or “Unlock” Mode (Stopper is removable). Fig. G. LOCKED MODE: • Look at the Plastic Loop at the bottom of the Stopper and notice that the Loop is on one side of the Stopper.
- Page 8 Randall ® Single Lever Lavatory and Vessel Faucets MODEL NUMBERS Lavatory D3510210C Vessel D3510215C A860811.XXX D3510216C HANDLE ASSEMBLY M964733-YYY0A CAP AND NUT A860621.191 CARTRIDGE Vessel ASSEMBLY Faucet Lavatory M964732-YYY0A Faucet LIFT KNOB & ROD M964737-YYY0A AERATOR M964736-YYY0A ASSEMBLY ROSETTE M952430-0070A SPPED CONNECT ®...
