Assembly Instructions
CONTACT US FIRST
parts@prepacmfg.com
1-877-PREPAC1
1-877-773-7221
Mon - Fri
7am - 4pm PST
10am - 7pm EST
•
For help with assembly
•
If you have received a damaged or defective
part or are missing hardware.
We will process replacement parts in 2 business
days or less.Parts are shipped via UPS Ground or
mail.
Before you call please:
1)
Record the following information from the
shipping label on the outside of the box.
You will need it for warranty purposes:
Ship To Name
Sales Order Number
2)
Note the product model number.
3)
Review the contents of your shipment to
determine what you are missing.
Online Option
Fill out the Replacement Parts Order form in the Product
Support section of our website: www.prepacmfg.com
Required Tools
Optional Tools
Using a power screwdriver will
speed up assembly.
Caution
Do not over tighten any screw.
The last few turns of each screw
should be done very slowly or by
hand.

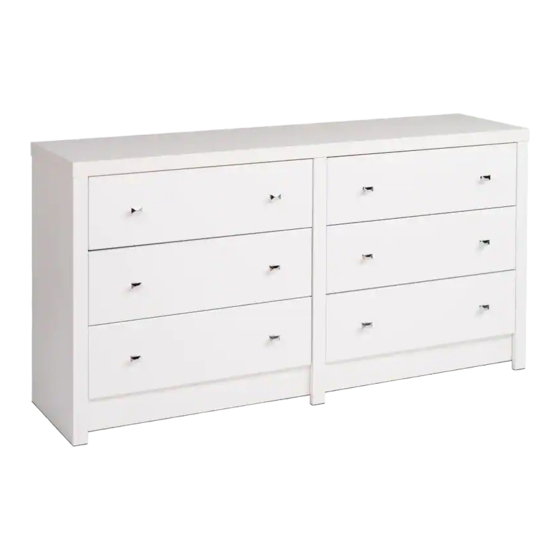

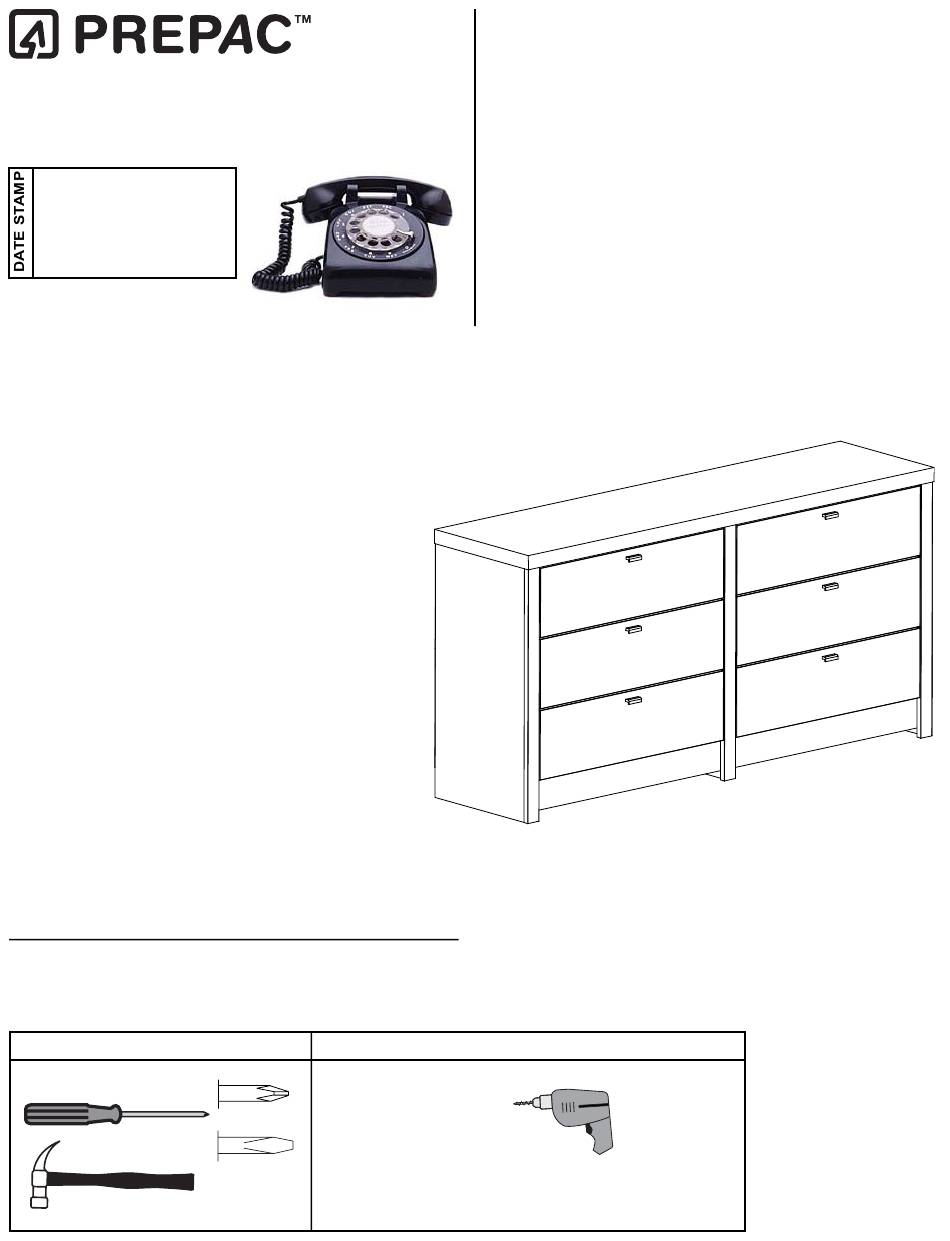

6 Drawer Dresser
Model # DBR-0560-1
This product is shipped in
1 carton
Prepac Manufacturing Ltd.
6705 Dennett Place
Delta, BC V4G 1N4
LB-0708
2013-12-27
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prepac DBR-0560-1
Summary of Contents for Prepac DBR-0560-1
- Page 1 6 Drawer Dresser Assembly Instructions Model # DBR-0560-1 This product is shipped in 1 carton CONTACT US FIRST parts@prepacmfg.com 1-877-PREPAC1 1-877-773-7221 Mon - Fri 7am - 4pm PST 10am - 7pm EST • For help with assembly • If you have received a damaged or defective part or are missing hardware.
- Page 2 Hardware Identification Identification de quincaillerie 24mm Green 15mm Zinc Cam #8 - 1½” Screws (24) Euro Screw (96) ¾” Nail (42) Twister Dowel (18) (large) (18) Vis no.8 - 1½ po. Vis “Euro” Clou ¾” Goujon de torsion vert Ferrure en zinc grand RM-0504 RM-0074 RM-0022...
- Page 3 Dresser Parts Pièces de la commode Top (1) Left Side (1) Center Right Side (1) Dessus Côté gauche Gable (1) Côté droit TP-10015-B black / noir SL-10016-B black / noir Pignon SR-10016-B black / noir TP-10015-E espresso SL-10016-E espresso central SR-10016-E espresso TP-10015-L cherry / cerisier SL-10016-L cherry / cerisier...
- Page 4 Step 1 Estimated Time: 10 Minutes Screw green twister dowels into the side (C5) and center (C6) moldings where shown Vissez les goujons de torison vert aux moulures latéral (C5) et central (C6) comme montre Insert SMALL cams and attach moldings to sides (C2 &...
- Page 5 Step 2 Estimated Time: 20 Minutes For the Left (C2) and Right (C4) Sides Pour les côtés gauche (C2) et droit (C4) Euro Screw Vis “Euro” 1” (tall) gray spacers Entretoise gris 1 po. (grande) Wood Dowel Goujons de bois Green Twister Dowel Goujon de torsion vert For the Center Gable (C3)
- Page 6 Step 3 Estimated Time: 10 Minutes Attach metal cabinet slides to all spacers with Euro screws Attachez les glissières de coffret en métal aux toutes les entretoises en utilisent les vis “Euro” Euro Screw Vis “Euro” Front Devant Position glide with wheel to the front and the bottom Placez le glissement avec la roue à...
- Page 7 Step 4 Estimated Time: 20 Minutes Insert LARGE cams into 1 front stabilizer (C8), and 2 rear stabilizers (C7), then attach to the left side (C2) and lock cams using a flat head screwdriver Insérez les ferrures GRANDES dans 1 renforcement avant (C8) et 2 renforcements arrière (C7) puis, attachez aux côtés gauche (C2) et serrez les ferrures utilisant un tournevis principal plat Tightening Cams Serrez les ferrures...
- Page 8 Attach remaining front stabilizer (C8), and 2 rear stabilizers (C7) to the right (C4) side and lock cams using a flat head screwdriver Attachez le renforcement avant (C8) et 2 renforcement arrière (C7) qui reste aux côtés droite (C4) et serrez les ferrures utilisant un tournevis principal plat Tightening Cams Serrez les ferrures...
- Page 9 Step 5 Estimated Time: 10 Minutes Screw green twister dowels into the top (C1) Vissez les goujons de torison vert au dessus (C1) Insert cams into sides, attach the top (C1) then, tighten cams. Insérez les ferrures aux côtés, attachez le dessus (C1) puis, serrez les ferrures Page 9 of 16...
- Page 10 Step 6 Estimated Time: 5 Minutes Attach backer with nails (C8) Attachez le dos avec les clous (C8) ¾” Nail Clou ¾” Page 10 of 16...
- Page 11 Drawer Parts Pièces de tiroir Drawer Front (6) Devant du tiroir petit DF-10011-B black / noir DF-10011-E espresso DF-10011-L cherry / cerisier DF-10023-H ebony / ébène* DF-10026-W white / blanc Left Drawer Side (6) Right Drawer Side (6) Drawer Back (6) Drawer Bottom (6) Côté...
- Page 12 Attach drawer sides to drawer back with 1½” Hi Lo screws Attachez les côtés de tiroir au dos de tiroir avec les vis noires avec 1 ½ po. Attach drawer front and tighten cams #8 - 1½” Hi Lo Screws Attachez le tiroir avant et serrez les cames Vis no.8 - 1½...
- Page 13 Turn drawer upside down and slide drawer bottom into grooves Tournez le tiroir à l’envers et glissez le fond de tiroir dans des cannelures Grooves Rainures Secure the drawer bottom to the drawer back with nails Fixez le fond de tiroir au dos de tiroir avec des clous Use 4 nails per drawer Employez 4 clous par tiroir Page 13 of 16...
- Page 14 Insert the Drawer Bottom Stabilizer Insérez le stabilisateur du fond de tiroir Position the Stabilizer in the center of the drawer and insert it into the groove on the drawer front. This is the same groove that you inserted the drawer bottom into. Then, tighten screw until it is flush.
- Page 15 Attach drawer slides to left and right drawer sides using Euro screws Attachez les glissements de tiroir aux côtés gauche et droit du tiroir avec les vis “Euro” Euro Screw Left Drawer Side Right Drawer Side Vis “Euro” Côté gauche du tiroir Côté...
- Page 16 Attacher et Utilisation STEP 9 Attaching and Using the Cable Tie de l'Attache de Câble Nous recommandons utilisant fortement une We strongly recommend using a cable tie on all attache de câble sur tous les meubles, surtout furniture, especially if small children have access si les petits enfants ont accès With the #6-3/4”...
