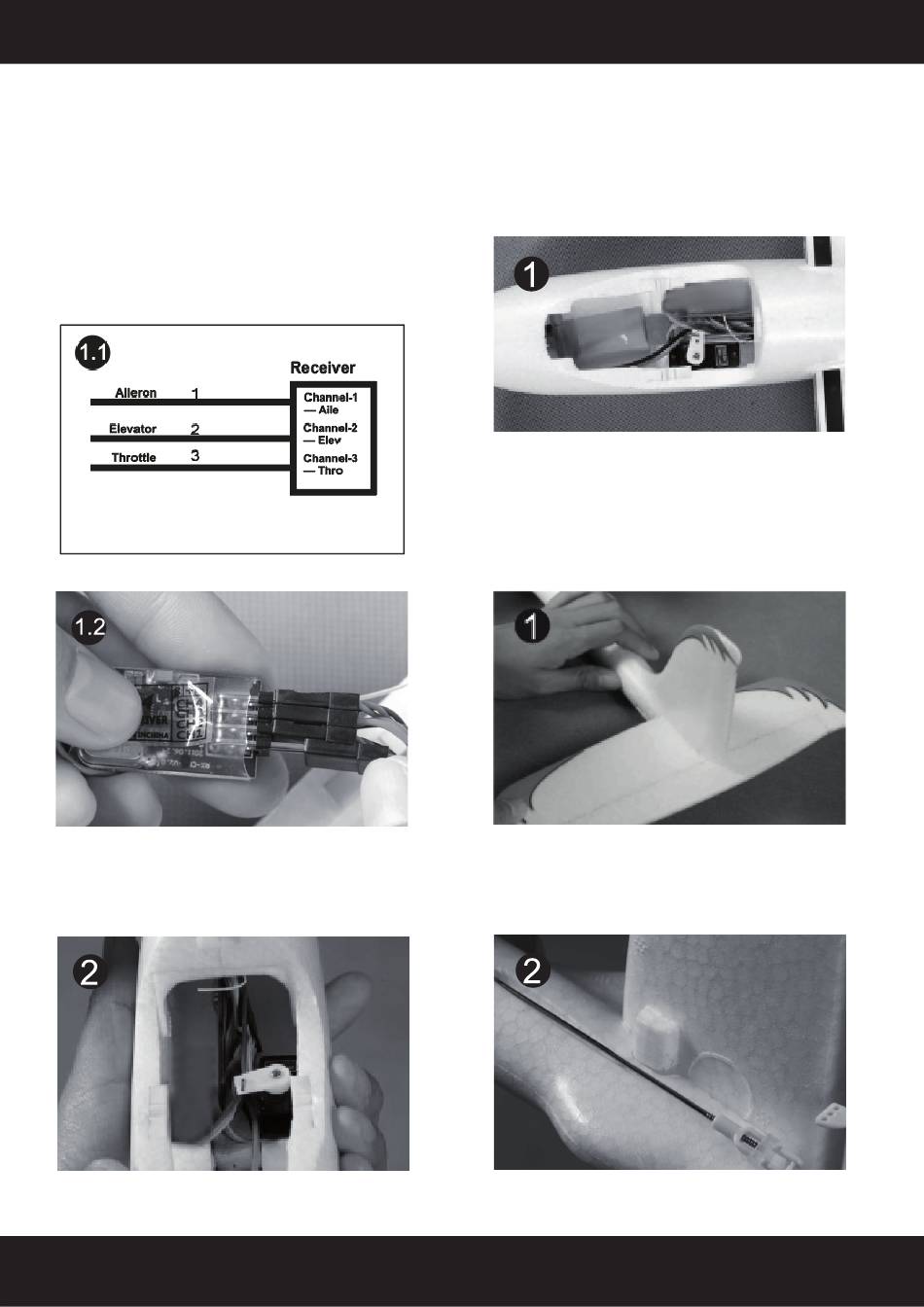

9.2 Receiver connection:
1. Plug the aileron servo cable into the correct receiver input = Aile-
ron.
Speed controller goes on channel 3 = Throttle.
Elevator to channel 2 = Elevator.
Aileron to channel 1
Symbolic image
2. The receiver should be placed in the rear cabin area, behind the
servos. The cables must not obstruct the servo movement!
www.modster.at
MODSTER Easy Trainer 800
9.3 Battery position:
Fasten the battery, e.g. with Velcro tape as shown in the picture. The
centre of gravity can be adjusted by changing the position.
9.4 Mounting the tailplane.
1. push the tailplane from the rear to the front into the gap at the
end of the fuselage - not too tight and with the decoration facing
upwards! Do not use glue yet!
2. The foam nose helps with positioning. Do not press beyond the
position.
