Installation Instructions

Ubbink Rolux® concentric vent system
Universal Bug Guard

Wall mounting (horizontal use)

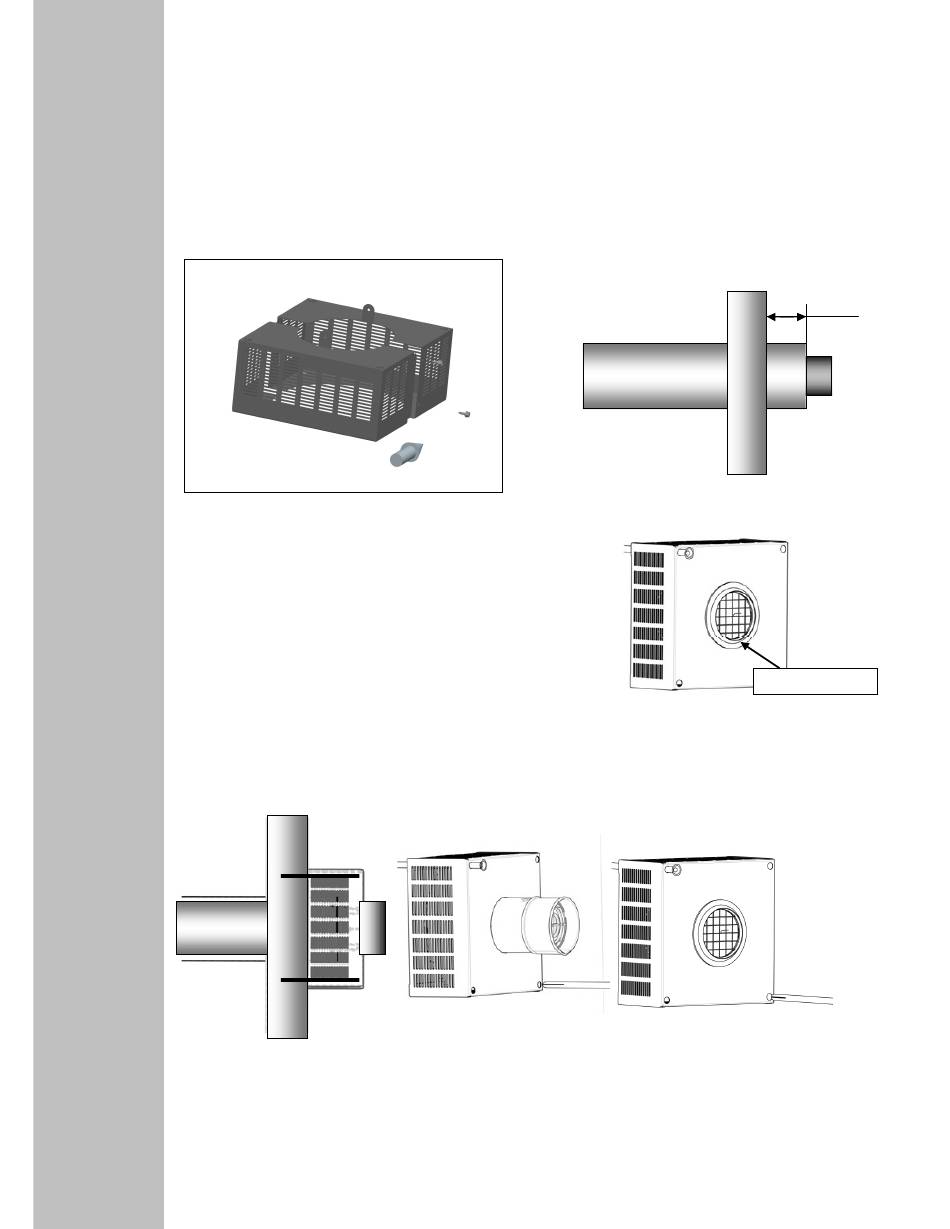

Step 1:
Adjust the length of the white outer pipe of the wall terminal so that it protrudes out of the wall 2 inches.
2 inches
Step 2:
In case the all weather termination kit horizontal is installed (long
nose), remove the black seal from the bug guard front plate.
Discard the seal, this is not used.
Black seal
Step 3:
Pre-assemble the 2 main components of the Bug Guard, by using 4 pc. # 8x1/2" Self Tapping Screws.
Discard the remaining 2 screws, these are not used
Place the Bug Guard over the wall terminal with the tabs pointing towards the wall and mark the
position of the mounting locations on the wall. Use the screw (removed from the plastic plug), or a
pencil or marker at least 5 inches (12.7 cm) long.
All Weather Version
Standard Version
Step 4:
Remove the Bug Guard and drill the 4 holes in the
wall, using a no.6 drill bit. Use a wood bit for wood paneling, or a masonry bit for brick or mortar walls.
