ubbink ROLUX Bug Guard Universal Installation Instructions

Vent system

INSTALLATION INSTRUCTIONS ENGLISH

ROLUX® VENT SYSTEM

Bug Guard Universal

These installation instructions should be

Ubbink B V

P.O.Box 26

kept with the appliance for maintenance

6980 AA Doesburg

The Netherlands

T +31 313 48 02 00

F + 31 313 4739 42

info@ubbin k.nl

www.ubbink.nl

art.code 0072286

08/11 ve rsion 4.0

Table of Contents

Need help?

Do you have a question about the ROLUX Bug Guard Universal and is the answer not in the manual?

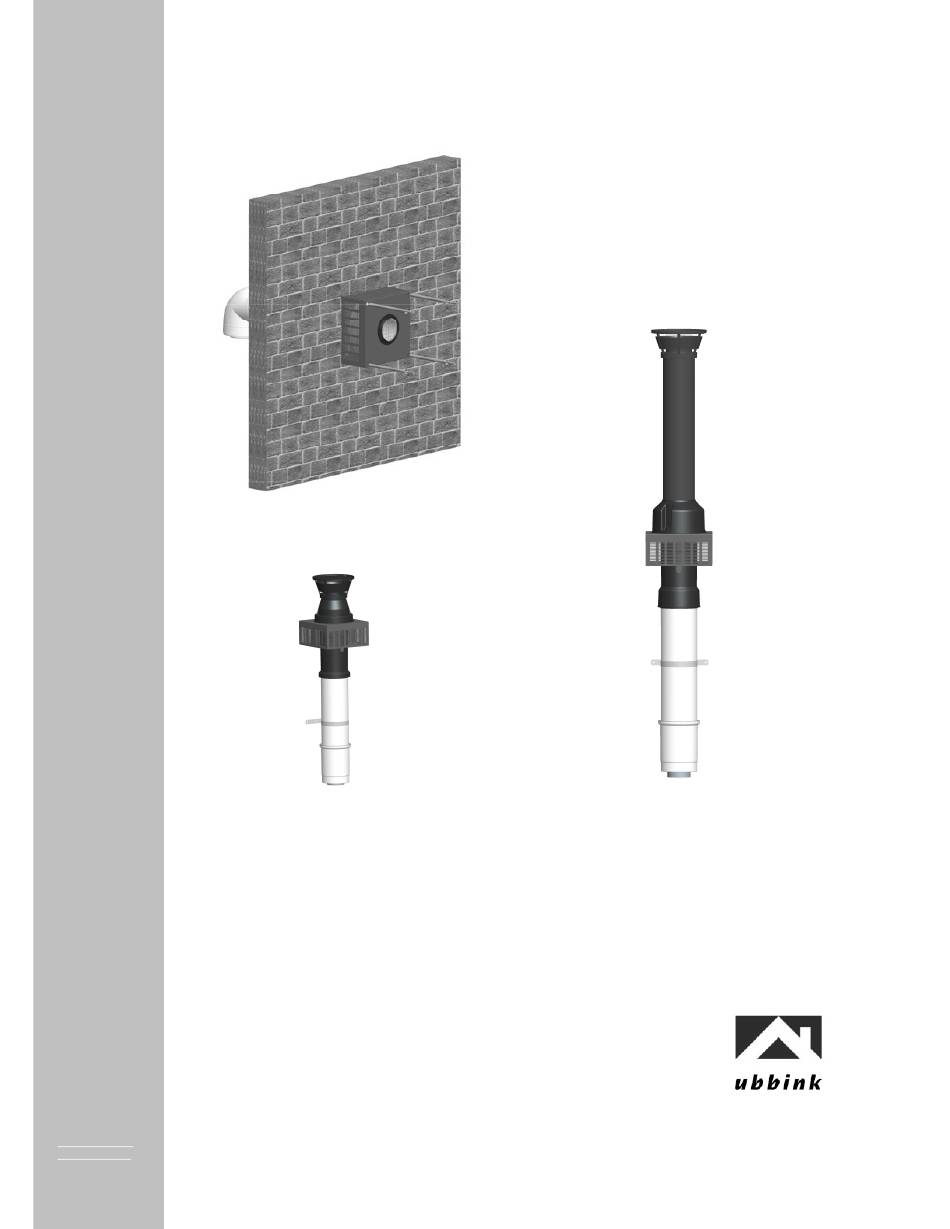

Page 1 INSTALLATION INSTRUCTIONS ENGLISH ROLUX® VENT SYSTEM Bug Guard Universal These installation instructions should be Ubbink B V P.O.Box 26 kept with the appliance for maintenance 6980 AA Doesburg The Netherlands T +31 313 48 02 00 F + 31 313 4739 42 info@ubbin k.nl...
Page 2 Introduction The Ubbink Rolux® concentric vent system is considered part of the direct vent tankless water heater. The Ubbink Rolux® concentric vent system was tested and approved with the appliance by a third party testing agency. Check the manufacturer's installation instructions or certificate of compliance to confirm that the Ubbink Rolux®...
Page 3 Installation Instructions Ubbink Rolux® concentric vent system Universal Bug Guard Wall mounting (horizontal use) Step 1: Adjust the length of the white outer pipe of the wall terminal so that it protrudes out of the wall 2 inches. 2 inches...
Page 4 Step 5 Fit the Bug Guard over the terminal and fix to the wall with the supplied No. 6 Plastic wall plugs and 5- 1/4” long screws. The remaining space between Bug Guard and wall can be filled using silicon. Remark: The 8 pc.

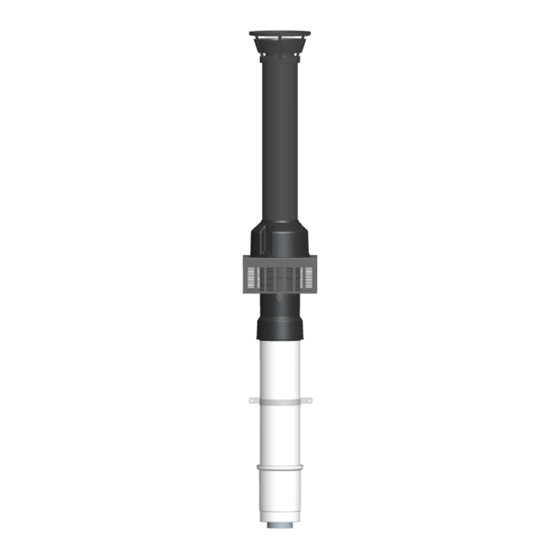

Page 5 Mounting sc rews (4x) Mounting sc rews (2x) Step 3: Slide the Bug Guard up till it is in close fit with the air intake cap. Finish installation by mounting the remaining 2 pc. # 8x1/2” Self Tapping Screws. Remaining spaces around the terminal body can be filled with silicon. Silicon...
