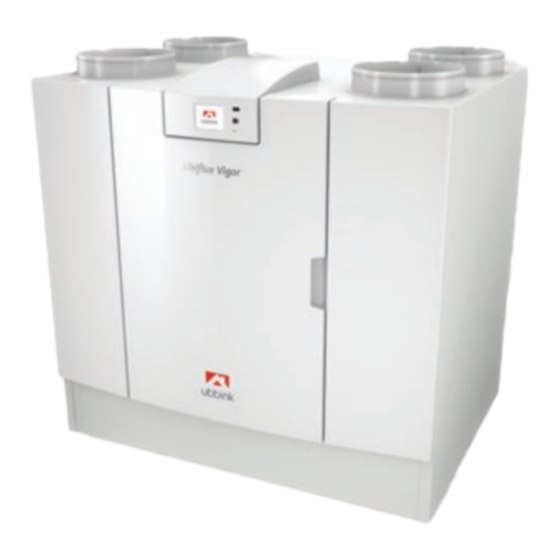

ubbink Ubiflux Vigor W600 Installation Instructions Manual

ubbink Ubiflux Vigor W600 Installation Instructions Manual

Hide thumbs Also See for Ubiflux Vigor W600:

Advertisement

Quick Links

INSTALLATION REGULATIONS
Ubiflux Vigor W600
English
La puissance pure!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ubiflux Vigor W600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ubbink Ubiflux Vigor W600

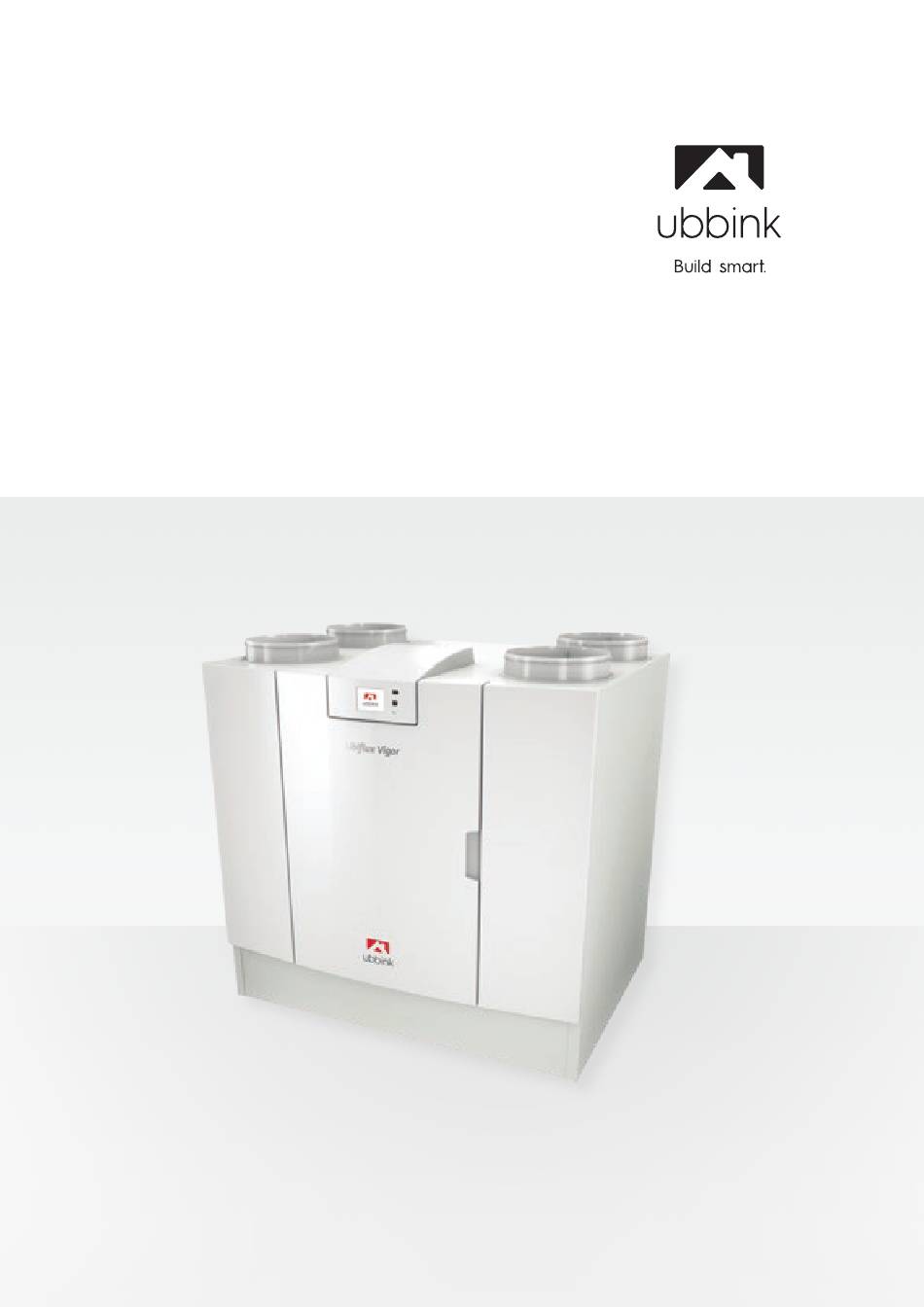

  • Page 1 INSTALLATION REGULATIONS Ubiflux Vigor W600 English La puissance pure!
  • Page 2 2 | Art.-nr.: 617220-A...
  • Page 3 Children may not play with the appliance. If you need a new power cable, always order the replacement from Ubbink NV. To prevent dangerous situations, a damaged mains connection must only be replaced by a qualified expert!
  • Page 4: Table Of Contents

    13.2 Setting values appliance with Plus pcb « signal output » 5.5.8 ModBus Connection 14 Conformity declaration 5.5.9 Coupling appliances using 15 ERP values Ubiflux Vigor W600 internal Buss 6 Display 16 Recycling 6.1 General explanation of control panel 6.2 Display layout 6.3 Display information...
  • Page 5: Delivery

    Heat recovery appliance Wall mounting bracket consisting of: 1x mounting bracket 2x protective caps 2x rubber strips 3x rubber rings 1x washer Siphon Documentation set consisting of: 1x short installation intructions 1x occupant's instructions Ubiflux Vigor W600 | 5...
  • Page 6: General

    These installation instructions describe both the standard Ubiflux Vigor W600 and the Ubiflux Vigor W600 with optional Plus PCB. The Ubiflux Vigor W600 is available in Left-hand and Right-hand versions; it is not possible to convert the left and right-hand models into one another. For the correct connection ducts and dimensions Connections and dimensions page 15).
  • Page 7: Modèle

    *) Duct noise including end correction In practice the value may differ by 1dB(A) through measurement tolerances. Resistance of Note: The stated ductsystem [Pa] value in the circle is the capacity (in Watt) per fan. Flow rate [m3/h] Ubiflux Vigor W600 | 7...
  • Page 8: Connections And Dimensions

    3.2 Connections and dimensions The Ubiflux Vigor is available in a left-hand and right-hand version. With a left-hand version the “warm” connections (from dwelling 3 and to dwelling 1) are on the left-hand side of the appliance; the condensate discharge is then mounted at the right-hand opening below the appliance. With a right-hand version the “warm”...
  • Page 9 All dimensions in millimeters. Diameter of all collars is 200 mm To dwelling Exhaust air Extract air Outdoor air Electrical connections Siphon connection Sealing cap unused condensate discharge connection; do not remove! Extract air filter Supply air filter Mounting bracket Ubiflux Vigor W600 | 9...
  • Page 10: Exploded View Of Appliance

    3.3 Exploded view of appliance The appliance shown above is a left-hand version: in the case of a right-hand version, the connector of the preheater, bypass valve and the siphon connector are installed in mirror image! Touchscreen Heat exchanger USB connector (X13)) Motor bypass valve Service connector Exhaust air filter...
  • Page 11: Operation

    (step no. 2.4). The appliance features a ‘Bypass boost’ function. When activated (step 2.5), the appliance is set to the highest ventilation level as soon as the bypass opens. (adjustable at step no. 2.6). Ubiflux Vigor W600 | 11...
  • Page 12: Frost Protection

    4.3 Frost protection To keep the heat exchanger frost-free at low outdoor temperatures, the appliance features a frost control. Temperature sensors measure the temperatures in the appliance, when required the preheater gets activated. The unit will also detect, very low outdoor temperatures at which the capacity of the preheater will be insufficient. At this stage an imbalance strategy will be activated where surplus warm extract air is used.
  • Page 13: Installation

    5.2 Placing the appliance The Ubiflux Vigor W600 (can be mounted onto a wall with the supplied mounting bracket. For a vibration-free instal- lation, the appliance must be mounted to a solid wall with a minimum mass of 170 kg/m2. A gypsum- or drywall will not suffice! Additional measures such as double panelling or additional studs are required in that case.
  • Page 14: Connecting The Condensate Discharge

    5.3 Connecting the condensate discharge The condensate discharge line for the Ubiflux Vigor W600 is located in the lower panel. The condensate is discharged through the drainpipe. The siphon (with built-in air vent) is supplied separately with the appliance and must be fitted by the installer below the appliance (bayonet connection).
  • Page 15: Connecting Air Ducts

    Ensure sufficient overflow openings. For example a gap of 2 cm underneath the doors. Important : When installing and maintaining the unit (see Maintenance installer page 32 ), check that no dust or dirt has accumulated on the preheater! Clean the preheater well during maintenance. Ubiflux Vigor W600 | 15...
  • Page 16: Electrical Connections

    Ubiflux Vigor W600 right-hand version (place level) Preferred location oudoor air inlet Sewer vent Preferred location Exhaust air outlet; Use Ub- bink insulated ventilation roof terminal Thermally insulated ducts Condensate discharge Silensers Supply air and extract air ducts 5.5 Electrical connections 5.5.1 Connecting the power plug...
  • Page 17: Connecting The Multiple Switch

    Electrical diagram page 34); for more information and the correct modBus settings see the separate Modbus manual on the Ubbink website! Note: When ModBus is active, the ventilation mode cannot be changed using the display or, if applicable, the connected multiple switch! Also any connected humidity sensor will not function.
  • Page 18: Coupling Appliances Using Internal Buss

    Bus. All Ubiflux Vigor W600 appliances have the same air flow rate as the appliance that is set as "Master". The fault messages of all appliances are shown on the display of the master appliance and shown on the display of the relevant appliance.
  • Page 19: Display

    The factory setting of the menu is English. The desired language/ date & time can be modified in the settings menu settings value table (® Setting values page 50) step number 15.1 to step number 15.10. Ubiflux Vigor W600 | 19...
  • Page 20: Display Layout

    6.2 Display layout The screen is divided up into 6 zones where various symbols/displays can be shown per zone. Layout of main screenl Navigation screen Notification screen Screen with main function Connectivity information Time Date The various symbols can be shown on the display. This depends on the screen that is shown, the version of the appliance and any connected accessories.
  • Page 21 This appliance is set as Master appliance if a number of appliances are connected (cascade) Appliance is set as Slave appliance; maximum of 9 appliances can be connected to a Master. Control via eBus for example Air Control . Control via ModBus or internal Bus. Bypass boost is active. Ubiflux Vigor W600 | 21...
  • Page 22 Zone Symbol on Description n° display Internet connection/Network connection Signal strength USB connection active. 11:07 Current set time of the device. 02.01.2020 Current date. 22 | Art.-nr.: 617220-A...
  • Page 23: Display Information

    The touchscreen can also be permanently set as multiple switch; to do this step number 15.8 in the settings menu has to be set to “yes”. Warning: Incorrect settings can seriously disrupt the proper functioning of the appliance! Ubiflux Vigor W600 | 23...
  • Page 24: Starting Appliance

    Good ventilation contributes to healthy air in the home, optimal comfort and the proper functioning of the installation. The air Flows of the appliance Ubiflux Vigor W600 have been set in the factory as follows 100, 150, 300 and 500 m3/h.
  • Page 25: Other Settings For Installer

    Warning: As changes in the settings menu can disrupt the proper functioning of the appliance, changes of settings not described here require consultation with Ubbink nv. Incorrect settings may seriously affect the proper performance of the appliance! 7.4 Factory settings It is possible to simultaneously revert all the changed settings back to the factory settings.
  • Page 26: Fault

    8 Fault 8.1 Fault analysis When the appliance's control system detects a fault, this is indicated on the display by a spanner symbol, possibly also with a fault number. The appliance makes a distinction between a fault at which the appliance keeps running (limitedly) and a serious (locking) fault for which both fans are switched off.
  • Page 27 Fault codes only if damaged; replace touchscreen if fault still occurs replace Touchscreen fault; visible when E1155 E2000 UWA2-B general fault message using service Fault is automatically reset when voltage is again put back tool on appliance Ubiflux Vigor W600 | 27...
  • Page 28 Fault Appliance Cause User action code code action Air Control and other Check wiring to accessories/ Air Control accessories EBus fault; general fault Check accessories/Air Control and replace if defective E120 E2100 connected to message If there is still a fault after this: Take voltage from appliance eBus do not and replace basic pcb UWA2-B work.
  • Page 29: Maintenance

    The timer of the filter message is then reset! Pressing the Home button brings you back to the main screen from any particular menu; pressing the return button , takes you back 1 step in the menu. Ubiflux Vigor W600 | 29...
  • Page 30: Maintenance Siphon

    9.2 Maintenance siphon Cleaning the siphon Every year the siphon must be disconnected and cleaned. (For example a Ubiflux Vigor appliance type 4-0). 30 | Art.-nr.: 617220-A...
  • Page 31: Maintenance Installer

    Installer maintenance includes cleaning the heat exchanger, internal preheater and fans. Dependent on the conditions, this must done about once every three years. Remove the power supply by pulling out the plug. Open the filter door. Remove the two filters. Remove the front cover. Ubiflux Vigor W600 | 31...
  • Page 32 4. Remove the heat exchanger. Be careful not to damage the foam parts in the appliance. 5. Wash the heat exchanger with hot water (max. 45°C) and a regular detergent. Then rinse the exchanger with hot water. 6. Take EPS assembly, with which the fan is inserted into the appliance, out of the appliance.
  • Page 33 18. Reset the timer of the filter message by setting the timer back to zero in the settings menu at step number 4.3. 19. After resetting the timer of the filter message the appliance returns to the main menu and the appliance is once again ready for use. Ubiflux Vigor W600 | 33...
  • Page 34: Electrical Diagram

    10 Electrical diagram 34 | Art.-nr.: 617220-A...
  • Page 35 C5 = white C17 = purple Important ! When installing and maintaining the appliance (see Maintenance installer page 32 ), check that no dust or dirt has accumulated on the preheater! Clean these well during maintenance. Ubiflux Vigor W600 | 35...
  • Page 36: Electrical Connections Accessories

    11 Electrical connections accessories 11.1 Connecting multiple switch A multiple switch must be connected to the modular connector type X14 on the basic PCB. This modular connector X14 is accessible from the rear of the control. With an appliance with Plus pcb the cover first has to be removed in order to gain access to this modular connector ( Optional Plus pcb page 13).
  • Page 37: Connecting Multiple Switch With Filter Indication

    C = Modular cable: Note: For the modular cable that is used, the “tab” of both modular connectors must be mounted facing the mark on the modular cable. Wire colors C1 - C6 may vary dependent on the type ofmodular cable used. Ubiflux Vigor W600 | 37...
  • Page 38: Connecting Wireless Remote Control (Without Filter Indication)

    11.1.2 Connecting wireless remote control (without filter indication) A = Ubiflux Vigor appliance (For example a Ubiflux Vigor appliance type 4-0) B = Receiver for wireless remote control C = Transmitter with 4 settings (for example kitchen) D = Transmitter with 2 settings (for example bathroom) E = Any additional 2- or 4-settings transmitters (maximum of 6 transmitters can be signed on to 1 receiver) F = Modular cable: Note: For the modular cable that is used, the “tab”...
  • Page 39: Connecting Extra Multiple Switch With Filter Indication

    D = Modular cable: Note: For the modular cable that is used, the “tab” of both modular connectors must be mounted facing the mark on the modular cable. Wire colors C1 - C6 may vary dependent on the type of modular cable used. Ubiflux Vigor W600 | 39...
  • Page 40: Connecting Extra Multiple Switch With Filter Indication

    11.1.4 Connecting extra multiple switch with filter indication A = A = Ubiflux Vigor appliance (For example a Ubiflux Vigor appliance type 4-0) B = Multiple switch with filter indication C = Receiver for wireless remote control D = Transmitter with 2 settings or 4 settings E = Splitter F = Modular cable: Note: For the modular cable that is used, the “tab”...
  • Page 41: Connecting Air Control

    A = Ubiflux Vigor appliance (For example a Ubiflux Vigor appliance type 4-0) B = Air Control (option) C = Two-core control cables D = Green two-pole screw connector E = Position green eBus connector to rear of control Ubiflux Vigor W600 | 41...
  • Page 42: Connecting Humidity Sensor

    11.3 Connecting humidity sensor 1 = Ubiflux Vigor appliance (For example a Ubiflux Vigor appliance type 4-0) 2 = Basis pcb 3 = Cover 4 = The cable that comes with RH cable 5 = RH (humidity) sensor 6 = Duct from dwelling To switch on and set the sensitivity of the humidity sensor, go to step number 7.1 and 7.2 in the settings menu 42 | Art.-nr.: 617220-A...
  • Page 43: Connecting Co₂ Sensor(S)

    For switching the CO2 sensor(s) on and off, select the right setting at step number 6.1 in the settings menu ; in order to set the minimum and maximum PPM value of the CO2 sensor(s) set, if necessary, the right values following step numbers 6.2 to 6.9. Ubiflux Vigor W600 | 43...
  • Page 44: Connecting Postheater

    11.5 Connecting postheater Heating coil C1 = brown Maximum safety with manual reset C2 = blue 2-pole eBus connection X17 on Ubiflux Vigor appliance C3 = green/yellow Temperature sensor C4 = black PCB type UVP1 C5 = white Airflow direction Dipswitch setting Ubiflux Vigor postheater 44 | Art.-nr.: 617220-A...
  • Page 45: Connecting Preheater

    Maximum safety with manual reset C2 = blue 2-pole eBus connection X17 on Ubiflux Vigor appliance C3 = green/yellow Temperature sensor C4 = black PCB type UVP1 C5 = white Airflow direction Dipswitch setting Ubiflux Vigor postheater Ubiflux Vigor W600 | 45...
  • Page 46: Connecting Geo-Heat Exchanger

    11.7 Connecting Geo-heat exchanger A geo heat exchanger can be connected to theUbiflux Vigor appliance with Plus PCB. Depending on the type of valve the geo heat exchanger can be connected to different connection of the Plus PCB: X10 no. 1 & 2 - Relay output 1 (Factory setting) X11 no.
  • Page 47: Service

    Appliance type, serial number and year of production are stated on the identification plate behind the plastic front panel on the appliance. Exemple Type d'appareil Ubiflux Vigor W600 Appliance type 432000221201 Year of production 2022 Part Article code 533037 Quantity Ubiflux Vigor W600 | 47...
  • Page 48: Service Articles

    12.2 Service articles 48 | Art.-nr.: 617220-A...
  • Page 49 Condensation discharge 0883246 * The power cable is fitted with a circuit board connector. When replacing it, always order a replacement mains cable from Ubbink To prevent dangerous situations, a damaged mains connection can only be replaced by a qualified expert.
  • Page 50: Setting Values

    13 Setting values 13.1 Setting values standard appliance The below setting values are for a Ubiflux Vigor W600 without Plus pcb. Step No Description Factory settings Setting range Comment Flow rate 0 or adjustable between 100 m³/h Air flow rate setting 0 100 m³/u...
  • Page 51 Sensitivity of humidity sensor 0 = basic setting -2 = least sensitive Cascade 0 / 9 Appliance setting 0 (Master) (0=Master; 1 t/m 9 = Slave 1 t/m Slave 9) Central heating + heat recovery 12.1 Status On/Off Ubiflux Vigor W600 | 51...
  • Page 52 Step No Description Factory settings Setting range Comment Communication 14.1 Type of Bus connection ModBus Off / ModBus/ internal Bus 14.2 Slave address 1 - 247 For Modbus 1200 / 2400 / 4800/ 9600/ 14.3 Baudrate 19k2 For Modbus 19k2 / 38k4 / 56k / 115k2 14.4 Parity Even...
  • Page 53: Setting Values Appliance With Plus Pcb

    13.2 Setting values appliance with Plus pcb The below setting values are for a Ubiflux Vigor W600 with Plus pcb. Step No Description Factory settings Setting range Comment Switch contacts Make or break contact 1 Make Make / Break Switch contact control 1...
  • Page 54 Step No Description Factory settings Setting range Comment 0 - 10 V. 10.1 Mode input 1 On / Off minimum voltage 10.2 0V - 10V input 1 Connecteur X-12 maximum voltage 10.3 0V - 10V input 1 10.4 Mode input 2 On / Off minimum voltage 10.5...
  • Page 55: Conformity Declaration

    EN 60335-1: 2012 + AC:2014 + A11:2014 + A13:2017 + A1:2019 + A2:2019 + A14:2019 EN 60335-2-40: 2003 + A11 + A12 + A1 + C + A13 + AC:2013 EN 62233: 2008 + AC:2008 Gentbrugge, 01-06-2022 B. Vanlede Managing Director Ubiflux Vigor W600 | 55...
  • Page 56 15 ERP values Technical information sheet Ubiflux Vigor W600 in accordance with Ecodesign (ErP), no. 1254/2014 (Annex IV) Manufacturer: Ubbink NV Model: Ubiflux Vigor W600 (Plus) Annual SEC Value Annual electricity heating Climate Type of control consumption (AEC) in saved (AHS)
  • Page 57 A+ (le plus efficace) SEC < -42 -42 ≤ Pa < -34 -34 ≤ Pa < -26 -26 ≤ Pa < -23 -23 ≤ Pa < -20 E (Least efficient) -20 ≤ Pa < -10 Ubiflux Vigor W600 | 57...
  • Page 58: Recycling

    16 Recycling Sustainable materials are used in the manufacture of this appliance. The packaging should be disposed of in a responsible manner and in accordance with governmental regulations. 58 | Art.-nr.: 617220-A...
  • Page 59 Ubiflux Vigor W600 | 59...
  • Page 60 Ubbink NV/SA - Jan Samijnstraat 9, B – 9050 Gentbrugge Tel. +32 (0)9 237 11 00 - www.ubbink.be - info@ubbink.be Ubbink (UK) Ltd. - Unit 2, Redbourne Park, Liliput Road Brackmills Ind. Est., Northampton, NN4 7DT - T +44 (0)1604 433000, F. +44 (0)1604 433001...
