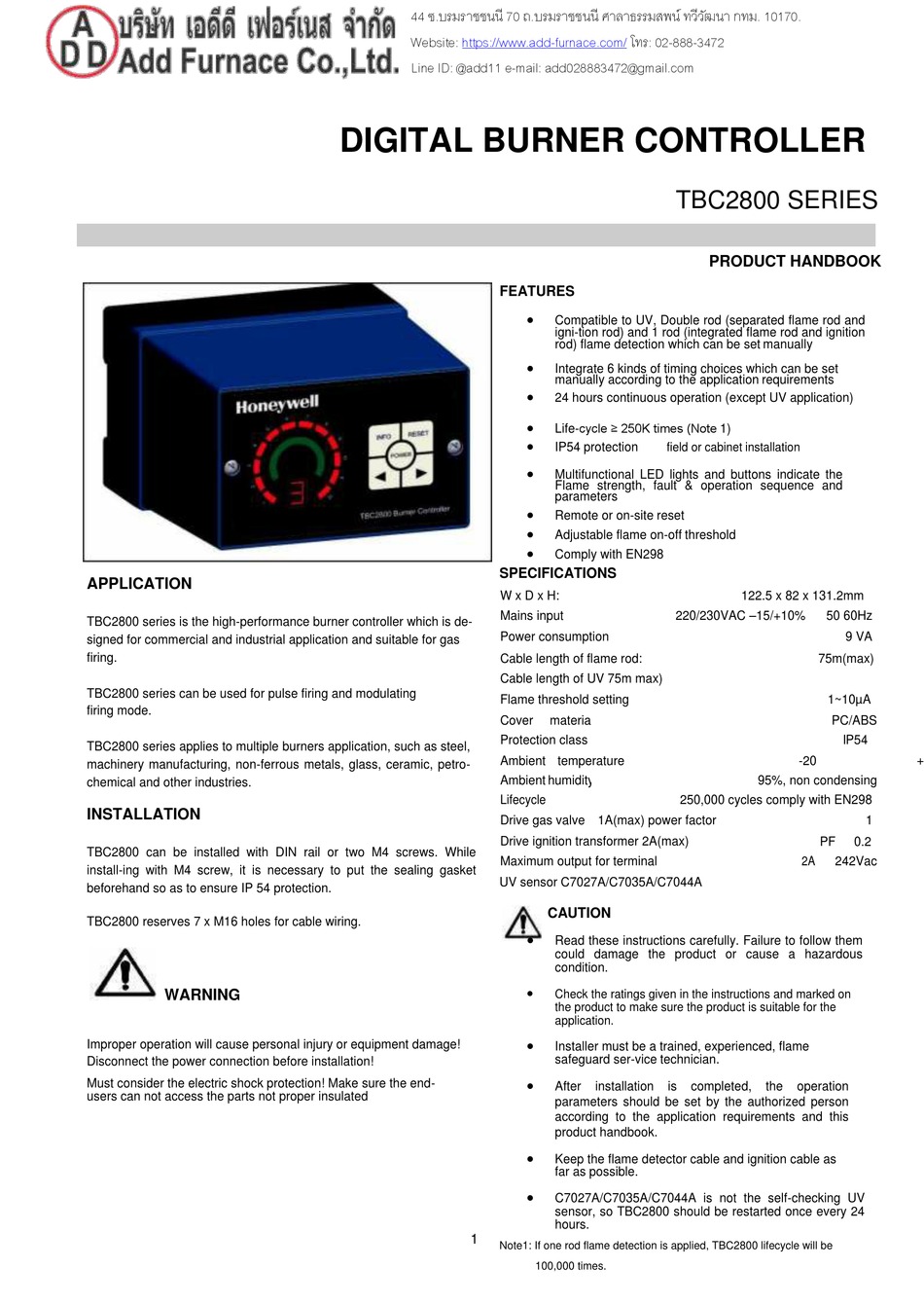

Honeywell TBC2800 Series Product Handbook

APPLICATION

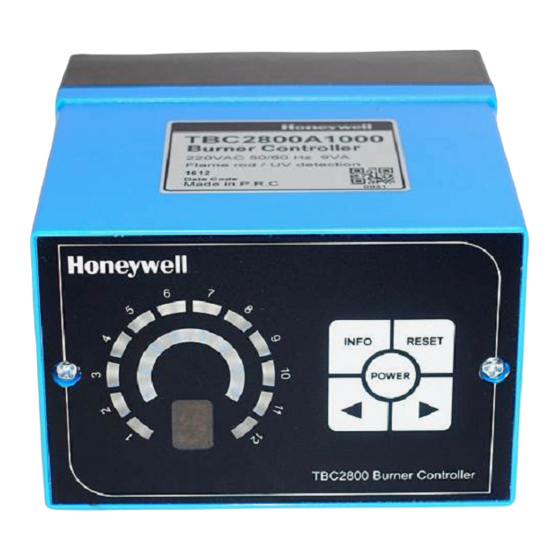

TBC2800 series is the high-performance burner controller which is de-
signed for commercial and industrial application and suitable for gas
firing.
TBC2800 series can be used for pulse firing and modulating
firing mode.
TBC2800 series applies to multiple burners application, such as steel,
machinery manufacturing, non-ferrous metals, glass, ceramic, petro-
chemical and other industries.
Installation
TBC2800 can be installed with DIN rail or two M4 screws. While
install-ing with M4 screw, it is necessary to put the sealing gasket
beforehand so as to ensure IP 54 protection.
TBC2800 reserves 7 x M16 holes for cable wiring.
WARNING
Improper operation will cause personal injury or equipment damage!
Disconnect the power connection before installation!
Must consider the electric shock protection! Make sure the end-
users can not access the parts not proper insulated
44 ซ.บรมราชชนนี 70 ถ.บรมราชชนนี ศาลาธรรมสพน์ ทวี ว ั ฒ นา กทม. 10170.
Website: https://www.add-furnace.com/
Line ID: @add11 e-mail: add028883472@gmail.com
DIGITAL BURNER CONTROLLER

FEATURES

SPECIFICATIONS

W x D x H:
Mains input
Power consumption
Cable length of flame rod:
Cable length of UV 75m max)
Flame threshold setting
Cover
Protection class
Ambient temperature
Ambient humidity
Lifecycle
Drive gas valve 1A(max) power factor
Drive ignition transformer 2A(max)
Maximum output for terminal
UV sensor C7027A/C7035A/C7044A
1
Note1: If one rod flame detection is applied, TBC2800 lifecycle will be
โทร: 02-888-3472
TBC2800 SERIES

Compatible to UV, Double rod (separated flame rod and
igni-tion rod) and 1 rod (integrated flame rod and ignition
rod) flame detection which can be set manually

Integrate 6 kinds of timing choices which can be set
manually according to the application requirements

24 hours continuous operation (except UV application)

Life-cycle ≥ 250K times (Note 1)

IP54 protection
field or cabinet installation

Multifunctional LED lights and buttons indicate the
Flame strength, fault & operation sequence and

parameters
 
Remote or on-site reset

Adjustable flame on-off threshold
 
Comply with EN298
220/230VAC –15/+10%
material
250,000 cycles comply with EN298
CAUTION

Read these instructions carefully. Failure to follow them
could damage the product or cause a hazardous
condition.

Check the ratings given in the instructions and marked on
the product to make sure the product is suitable for the

application.

Installer must be a trained, experienced, flame
safeguard ser-vice technician.

After

installation

is completed,
parameters should be set by the authorized person
according to the application requirements and this

product handbook.

Keep the flame detector cable and ignition cable as

far as possible.

C7027A/C7035A/C7044A is not the self-checking UV
sensor, so TBC2800 should be restarted once every 24

hours.
100,000 times.
PRODUCT HANDBOOK






122.5 x 82 x 131.2mm
50 60Hz
9 VA
75m(max)
1~10µA
PC/ABS
I P54
-20
95%, non condensing
1
PF 0.2
2A 242Vac

the operation
+
