CAUTIONS
Please refer to the phone's user's guide for instructions relating to operation, care, and maintenance, which include important
safety information.
Servicing and alignment must be undertaken by qualified personnel only.
Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.
Use only approved components as specified in the parts list.
Ensure all components, modules, screws, and insulators are correctly re-fitted after servicing and alignment
Ensure all cables and wires are repositioned correctly
Electrostatic discharge can easily damage the sensitive components of electronic products. Therefore, every service supplier
must observe the precautions which mentioned above.
PMIC
Base Chip Set
Transceiver
Camera DSP/MMP
All manuals and user guides at all-guides.com
Fly IQ4400 Service Manual
Product Hardware Introduction
BB
FLY SERVICE SUPPORT
MT6571A/E
MT6323
MT6571A/E
/

Advertisement

loading

Related Manuals for FLY IQ4400

Summary of Contents for FLY IQ4400

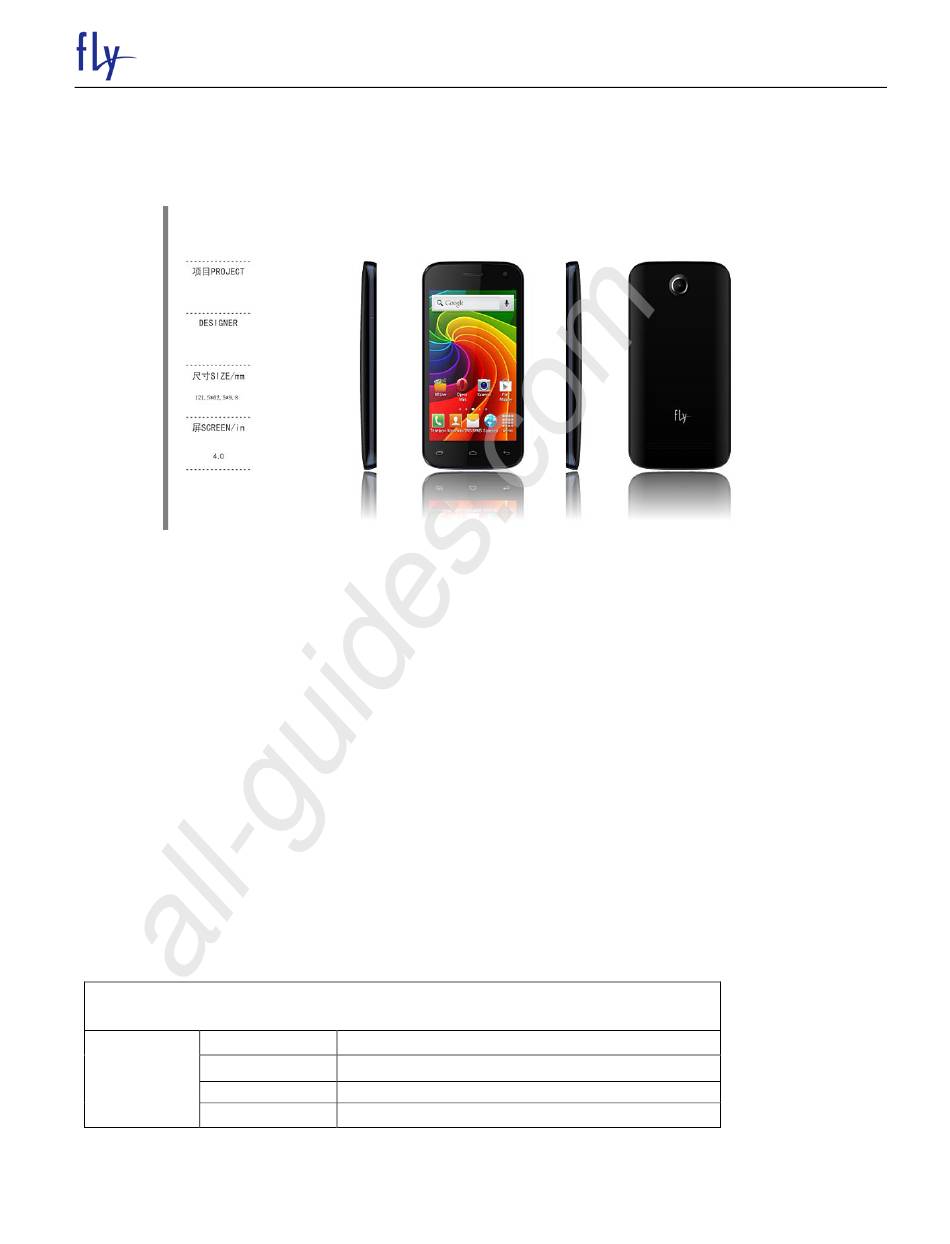

  • Page 1 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT Fly IQ4400 Service Manual CAUTIONS Please refer to the phone’s user’s guide for instructions relating to operation, care, and maintenance, which include important safety information. Servicing and alignment must be undertaken by qualified personnel only.
  • Page 2 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT VC5278 RFPA MT6627* MT6627* AW8736FCR Audio CODEC&PA KE4CN2L2HA5A2A Memory TP IC 4.0” ，IC:FT6206 Backlight Driver Peripheral Rear camera:2.0 IC：SP2529 Front camera:0.3IC：SP0A19 CAMERA Configuration Memory Card PIFA antenna Antenna 0.2mA Leakage current 5.2mA...
  • Page 3 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT Fly IQ444 Main function * 4.0, 480*800 TFT LCD *MTK6571 (78MHz)，32Mb+16Mb * Dual SIM stand by *Camera： Rear 2.0MP Camera AF Front camera:0.3MP *BT, FM *Multimedia player *T-Flash Up to 32 GB...

  • Page 4: Service Tools

    All manuals and user guides at all-guides.com FLY SERVICE SUPPORT SERVICE TOOLS Iron Hot air gun Voltage regulator Multimeter Solder wire, soldering paste Tweezers Driver upDownlo ad cable Wrist groun ding strap Pick Antistatic gloves Metal tweezers, Screw driver etc...

  • Page 5: Disassembly And Assembly

    All manuals and user guides at all-guides.com FLY SERVICE SUPPORT DISASSEMBLY AND ASSEMBLY...
  • Page 6 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT...
  • Page 7 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT...
  • Page 8 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT...
  • Page 9 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT CIRCUIT INSTRUCTION PCBA A-Side Audio PA Memory AW8736FCR MT6571A/E KE4CN2L2HA5A2A PMIC MT6323 BT/WIFI/GPS/FM RF PA MT6627* VC5278...
  • Page 10 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT SYSTEM BLOCK DIAGRA UNIT CIRCUIT PRINCIPLE INTRODUCTION Baseband CPU circuit introduction for power supply part circuit MT6571A/E...
  • Page 11 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT...
  • Page 12 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT Interface Interface TF Card Interface...
  • Page 13 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT...
  • Page 14 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT BT/WIFI//GPS/FM circuit Audio PA circuit...
  • Page 15 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT RF circuit...
  • Page 16 All manuals and user guides at all-guides.com FLY SERVICE SUPPORT...

  • Page 17: Troubleshooting Guide

    All manuals and user guides at all-guides.com FLY SERVICE SUPPORT TROUBLE SHOOTING GUIDE Cannot switch on Phone connect current is about 50-100mA and cannot switch on Update software Check and replace I/O connector Check power output： Centre supply VCORE Replace or 1.2V...
