BCL135 Service Manual Annex 1

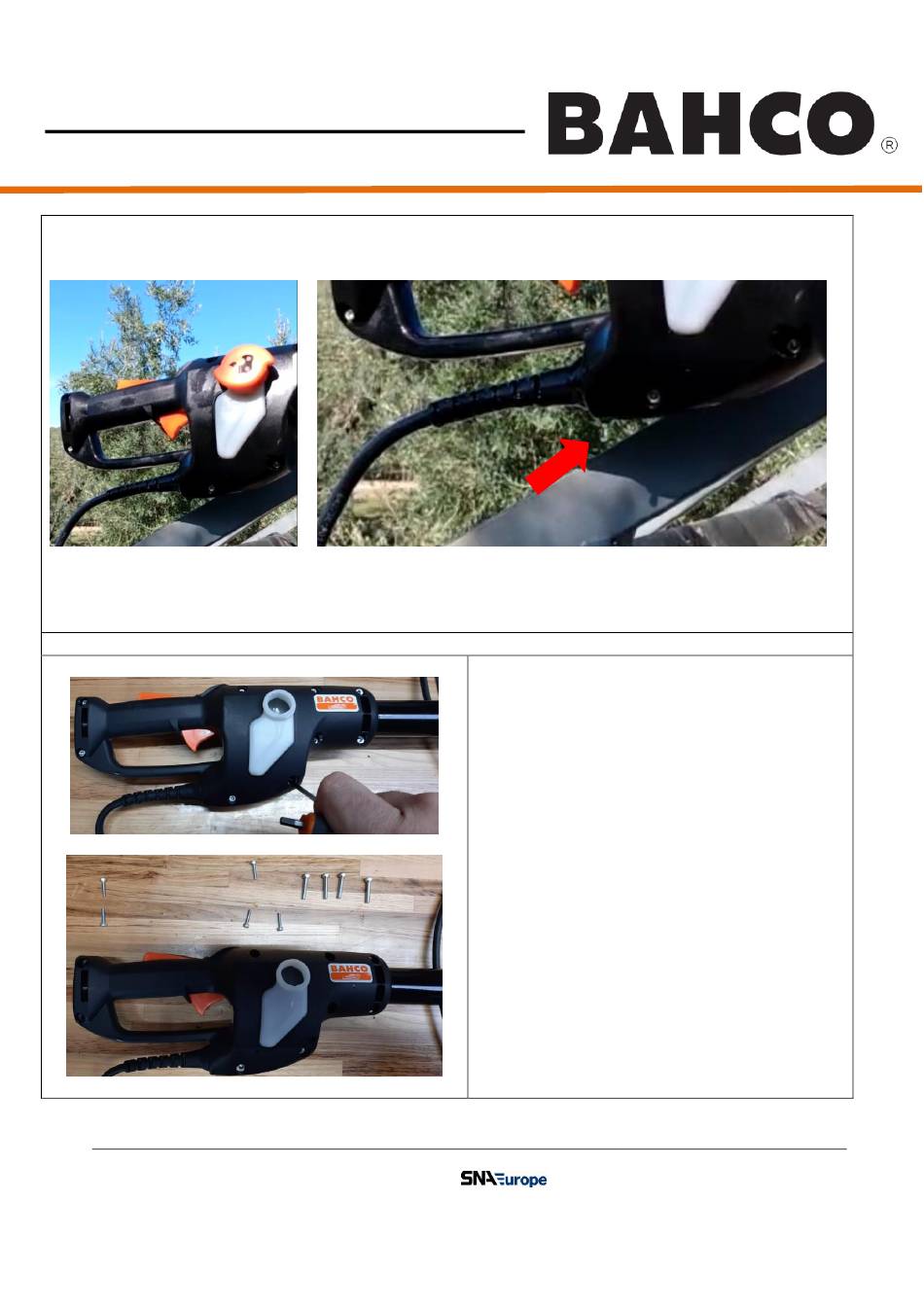

Oil leaks on handle
Sometimes the end use face oil leaks coming from the handle.
The reason is the oil tank and its connection hose. This manual explains how to replace
the oil tank in case of oil leaks from the oil tank:
SERVICE MANUAL
BCL135 HOW TO REPLACE THE OIL TANK
Empty the tank and remove its screw cap
Remove the 9 fixed screws of the handle
assy
Warning: some of the nuts could get
disassembled during this process.
ASC
Page: 1
