ADJUSTMENT SERVICE
MANUAL

Advertisement

loading

Related Manuals for Bahco 7455-2500

Summary of Contents for Bahco 7455-2500

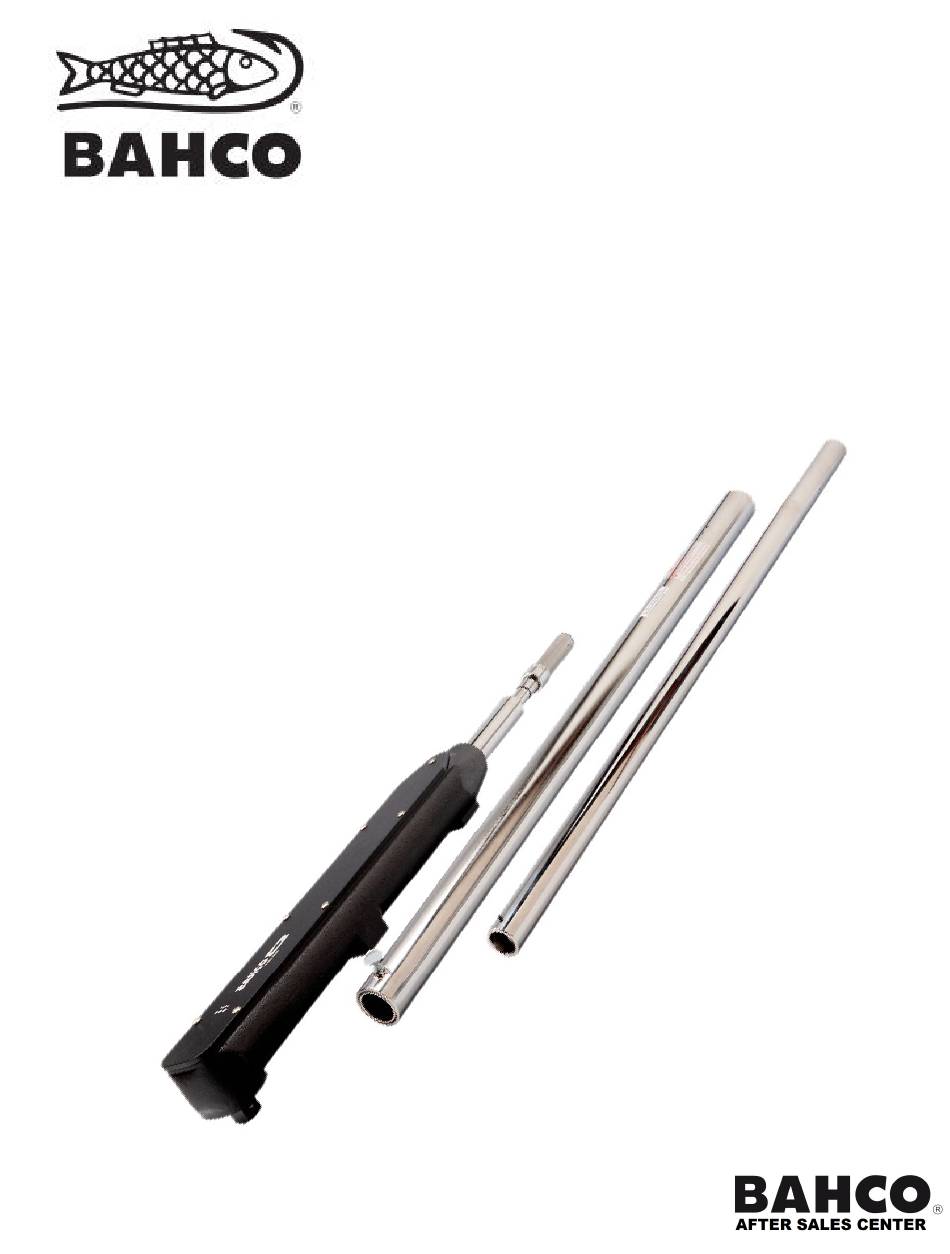

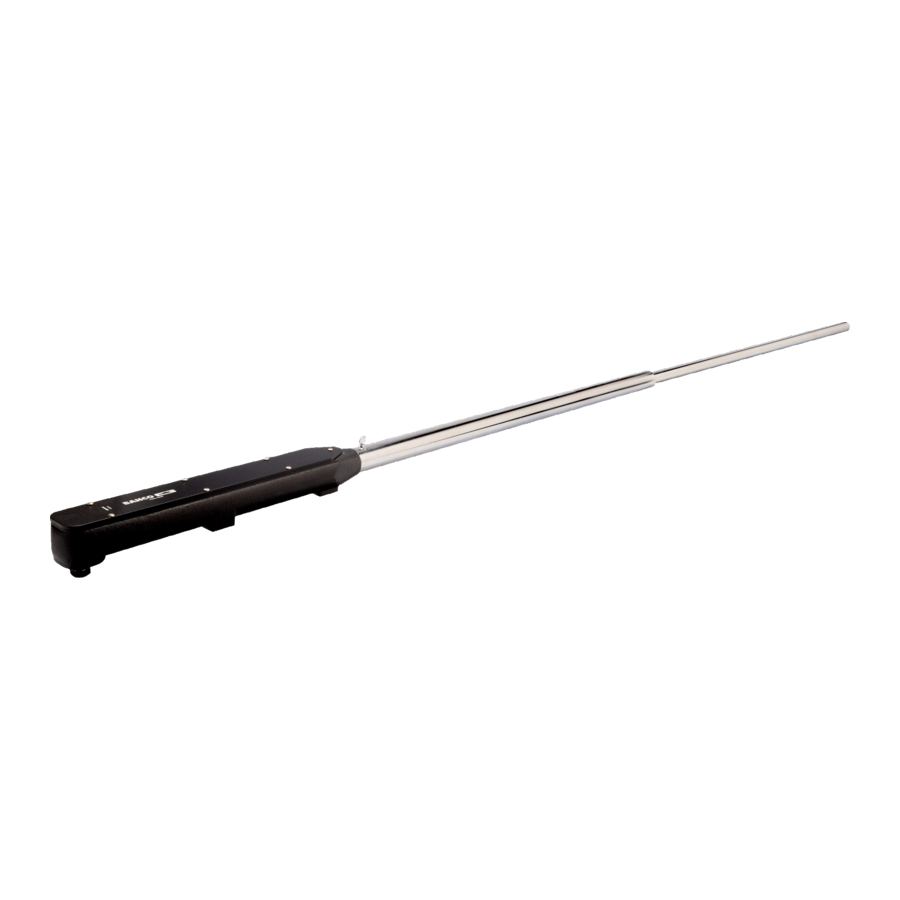

  • Page 1 7455-2500 ADJUSTMENT SERVICE MANUAL...
  • Page 2 Tools Required  Phillips Screwdriver  Flathead Screwdriver  ½” Socket  Ratchet  Loctite 243  Rubber Mallet  torque measurement equipment...

  • Page 3: Safety Instructions

    TORQUE WRENCH REPAIR, MAINTENANCE AND TROUBLESHOOTING INSTRUCTIONS SAFETY INSTRUCTIONS  Failure to follow WARNING instructions can cause personal injury to the operator.  Failure to follow CAUTION instructions can cause the equipment to fail or break in use. Always wear Safety Glasses or goggles when using or repairing hand tools. Read this manual com pletely before repairing torque wrenches.
  • Page 4 Phillip Screws x7 Make sure the instrument is set to its lowest setting (300 ft-lbs). Remove all seven Phillip screws from cover-plate. Gently pry the cover off using a flat head screwdriver.
