DAF LF45 Series Maintenance Schedule

Hide thumbs Also See for LF45 Series:

Advertisement

Table of Contents

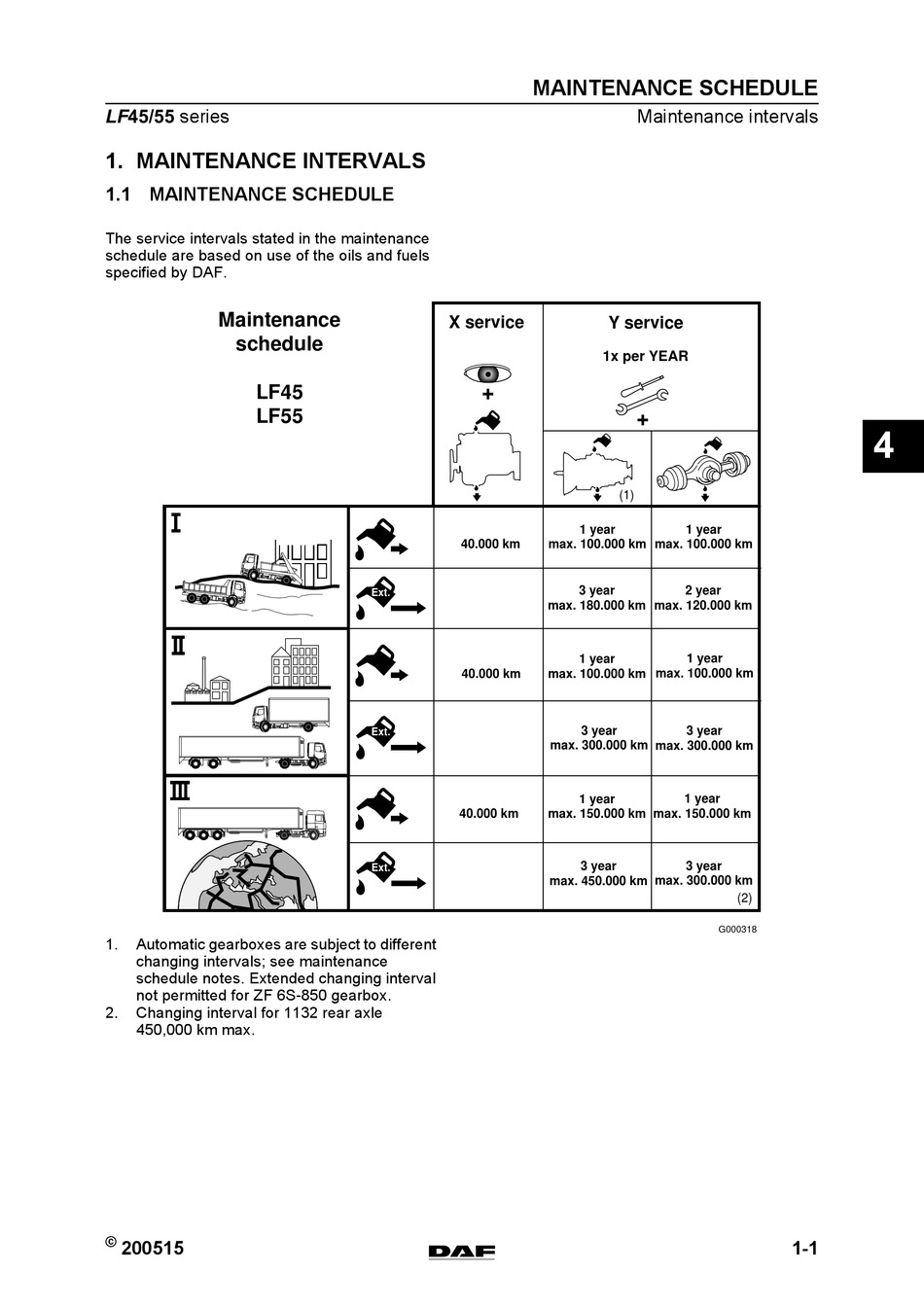

ΛΦ45/55 series
1. MAINTENANCE INTERVALS
1.1 MAINTENANCE SCHEDULE
The service intervals stated in the maintenance
schedule are based on use of the oils and fuels
specified by DAF.
Maintenance
schedule
LF45
LF55
1.
Automatic gearboxes are subject to different
changing intervals; see maintenance
schedule notes. Extended changing interval
not permitted for ZF 6S-850 gearbox.
2.
Changing interval for 1132 rear axle
450,000 km max.
©
200515
MAINTENANCE SCHEDULE
X service
+
40.000 km
Ext.
40.000 km
Ext.
40.000 km
Ext.
Maintenance intervals
Y service
1x per YEAR
+
(1)
1 year
1 year
max. 100.000 km
max. 100.000 km
3 year
2 year
max. 180.000 km
max. 120.000 km
1 year
1 year
max. 100.000 km
max. 100.000 km
3 year
3 year
max. 300.000 km
max. 300.000 km
1 year
1 year
max. 150.000 km
max. 150.000 km
3 year
3 year
max. 450.000 km
max. 300.000 km
G000318
4
(2)
1-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LF45 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAF LF45 Series

Summary of Contents for DAF LF45 Series

  • Page 1 ΛΦ45/55 series Maintenance intervals 1. MAINTENANCE INTERVALS 1.1 MAINTENANCE SCHEDULE The service intervals stated in the maintenance schedule are based on use of the oils and fuels specified by DAF. Maintenance X service Y service schedule 1x per YEAR LF45...

  • Page 2: Maintenance Schedule

    MAINTENANCE SCHEDULE ΛΦ45/55 series Maintenance activities 2.2 OVERVIEW OF ANNUAL MAINTENANCE ACTIVITIES ANNUAL MAINTENANCE ACTIVITIES (Y-SERVICE) "Correct, if necessary, after inspection" CAB AND ELECTRICAL SYSTEM O Check pedal rubbers O Check whether the latest version of the ITS manual is kept in the cab O Replace the cab filter element - See note 1 Replaced O Yes...

  • Page 3: Inspection And Adjustment

    EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES ΛΦ45/55 series Inspection and adjustment Checking hot oil level Bring the gearbox up to operating temperature (approx. 71C - 93C). Remove the dipstick when the engine is idling and wipe it clean with a lint-free cloth. Note: To take the dipstick out of the holder, the sealing cap must be held while the dipstick is...
  • Page 4 EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES ΛΦ45/55 series Inspection and adjustment 3.38 CHECKING GREASED WHEEL HUBS FOR LEAKS Check the wheel hubs for leaks. Note: For maintenance-free wheel hubs: If there are serious grease marks on the brake disc side of the wheel hub, this could indicate excessive use of assembly grease on new or recently assembled wheel hubs.

  • Page 5: Removal And Installation

    EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES ΛΦ45/55 series Removal and installation 4.3 REMOVAL AND INSTALLATION, LUBRICATING OIL FILTER To prevent skin injury, avoid unnecessary contact with the drained lubricating oil. Be careful when changing the oil. Hot oil may cause serious injuries. Removing the lubricating oil filter Place a tray beneath the lubricating oil filter.
  • Page 6 EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES ΛΦ45/55 series Removal and installation 4.4 REMOVAL AND INSTALLATION, FUEL FINE FILTER When removing the fuel fine filter, a quantity of fuel will escape. Collect the fuel and avoid the risk of fire. Removing the fuel fine filter Place a container beneath the fuel fine filter and remove the filter.

  • Page 7: Draining And Filling

    EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES ΛΦ45/55 series Draining and filling Filling the gearbox Clean the drain plugs, provide them with new sealing rings and fit them, tightening them to the specified torque, see "Technical data". Fill the gearbox through the dipstick holder with the specified quantity of oil;...
  • Page 8 EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES ΛΦ45/55 series Draining and filling Filling the gearbox Clean the drain plug (1), fit a new sealing ring and tighten the plug to the specified torque; see "Technical data". Fit the oil filters (2). See "Removal and installation".

  • Page 9: Cleaning The Battery Terminals

    EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES ΛΦ45/55 series Cleaning 6. CLEANING 6.1 CLEANING THE BATTERY TERMINALS Avoid sparks and open flames in the vicinity of batteries. Battery acid is an aggressive fluid. In the event of contact with the skin: rinse the skin with plenty of water for a sustained period.
  • Page 10 Note: With the aid of a simple tool, the radiator and the air cooler can be blow-cleaned. The tool (radiator cleaner) cannot be ordered from DAF. It should be manufactured by yourself according to the drawing. Key to drawing: 1150mm...
  • Page 11 EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES ΛΦ45/55 series Lubrication 7. LUBRICATION 7.1 LUBRICATING ACCORDING TO Y-SERVICE LUBRICATION SCHEDULE Note: The lubricating points marked below with an (S) indicate that the lubricating point is positioned on both the left-hand and right-hand side of the vehicle.
  • Page 12 EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES ΛΦ45/55 series Lubrication 152N (S) front axle The 152N front axle has a grease nipple on the top side and underside. G000189 © 200515...
