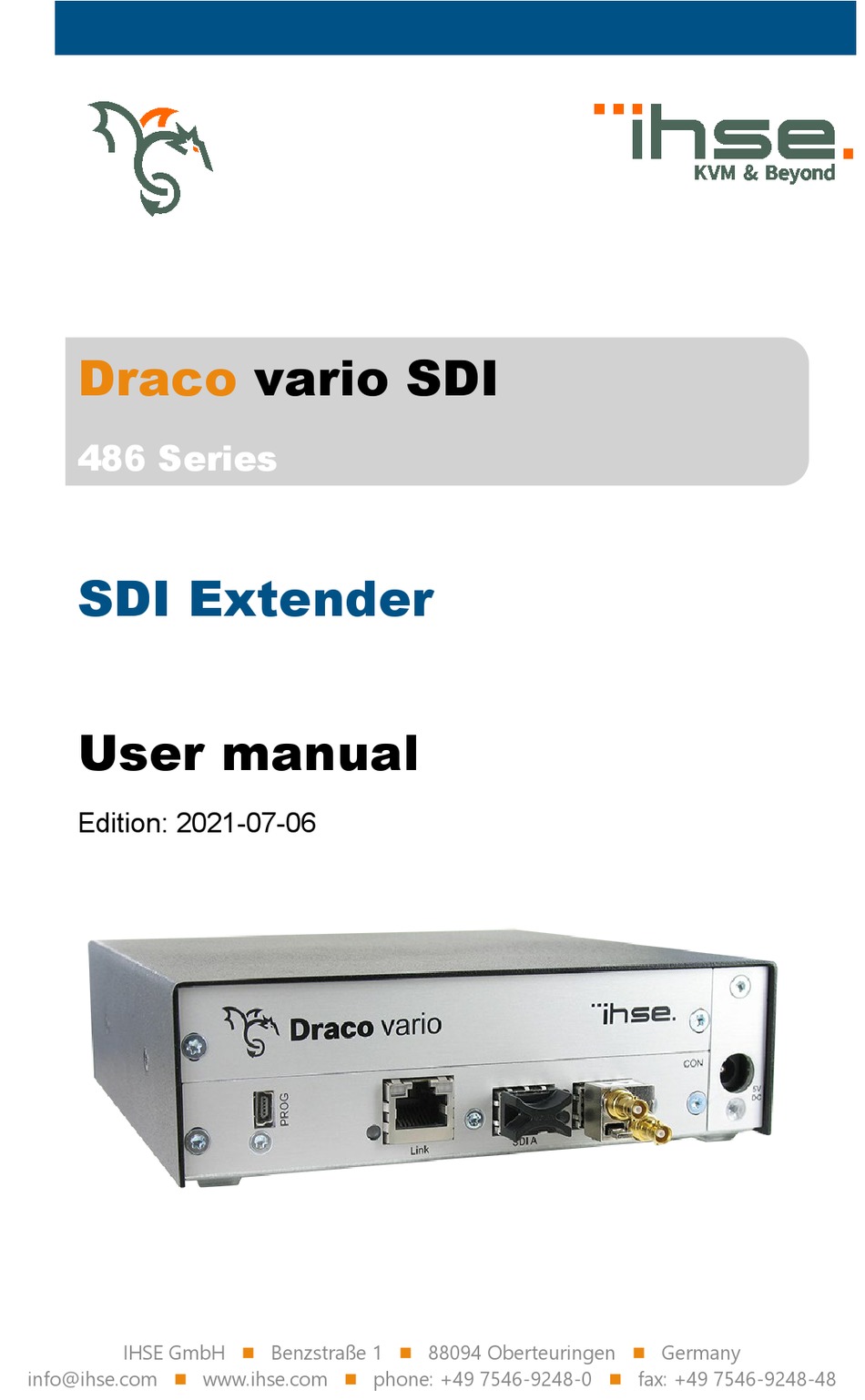

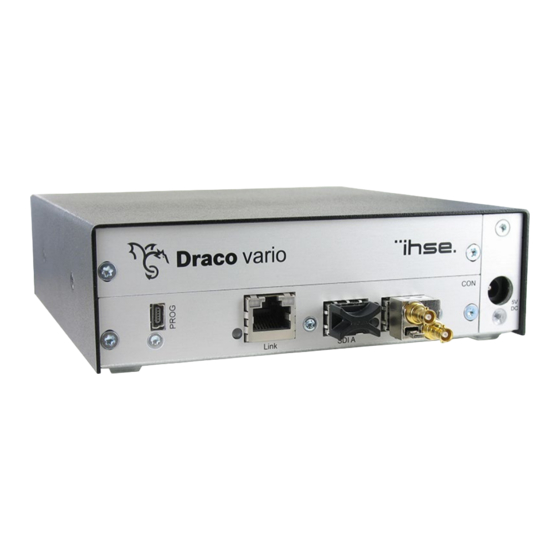

- Page 1 Draco vario SDI 486 Series SDI Extender User manual Edition: 2021-07-06 IHSE GmbH Benzstraße 1 88094 Oberteuringen Germany info@ihse.com www.ihse.com phone: +49 7546-9248-0 fax: +49 7546-9248-48 ...
- Page 2 Draco vario SDI Extender Copyright © 2021. All rights reserved. This information may not be reproduced in any manner without the prior written consent of the manufacturer. Information in this document is subject to change without notice. Trademarks All trademark and trade names mentioned in this document are acknowledged to be the property of their respective owners.
-
Page 3: Table Of Contents
Contents Contents About This Manual ............... 6 Scope .................. 6 Validity ................6 Cautions and Notes ............6 EU Declaration of Conformity ..........6 Safety Instructions ............... 7 Description ................... 8 Application ................8 System Overview ..............9 Product Range ..............10 3.3.1 Part Numbers ............ - Page 4 Draco vario SDI Extender 3.6.13 6-fold Vario Chassis 474-BODY6BP ....20 3.6.14 6-fold Vario Chassis 474-BODY6BPF ....21 3.6.15 21-fold Vario Chassis 474-BODY21/4U ....22 Status LEDs ..............23 3.7.1 Status SDI Extender Module ....... 23 3.7.2 Status Upgrade Module USB-HID ....... 24 3.7.3 Status Upgrade Module Digital Audio ....
- Page 5 10.1 North American Regulatory Compliance ......58 10.2 Product Safety ..............59 10.3 WEEE ................59 10.4 RoHS/RoHS 2 ..............59 Glossary ..................60 Pos: 1 /806-IHSE/Zu diesem Handbuch/ATB_Zu diesem Handbuch @ 5\mod_1278573163276_6.doc @ 41510 @ 1222 @ 1 2021-07-06...
-
Page 6: About This Manual
This symbol indicates best practice information to show recommended and optimal ways to use this product in an efficient way. Pos: 2 /806-IHSE/Sicherheitshinweise/ATB_Sicherheitshinweise @ 5\mod_1278573321245_6.doc @ 41528 @ 1 @ 1 EU Declaration of Conformity Please find the EU Declaration of Conformity for the product series under: www.ihse.com/eu-declaration-of-conformity... -
Page 7: Safety Instructions
Do not attempt to open or repair the SDI Extender. There are no user serviceable parts inside. Please contact your dealer or manufacturer if there is a fault. Pos: 3 /806-IHSE/Beschreibung/UEB_Beschreibung @ 5\mod_1278573379151_6.doc @ 41546 @ 1 @ 1 2021-07-06... -
Page 8: Description
The SDI Extender with fiber interconnect cables can also be used with applications in environments which are subject to electromagnetic interference. Electromagnetic interference can limit the maximum distance and reliability of operation. Pos: 5 /806-IHSE/Beschreibung/System-Übersicht /System-Übersicht-486 @ 18\mod_1507281306488_6.doc @ 190501 @ 2 @ 4 2021-07-06... -
Page 9: System Overview
System Overview Source (SDI) SDI Extender CPU Unit Interconnect cable SDI Extender CON Unit Console (SDI monitor) See Chapter 4.3, Page 31 for installation examples. Pos: 6 /806-IHSE/Beschreibung/Gerätetypen/Gerätetypen_486 @ 18\mod_1507281799164_6.doc @ 190530 @ 233333 @ 4 2021-07-06... -
Page 10: Product Range
Draco vario SDI Extender Product Range 3.3.1 Part Numbers Part numbers for Connections via Cat X or Fiber Cable All devices are available in the following versions: Connection via Cat X cable (x = "C") Connection via Single-mode fiber cable (x = "S") ... -
Page 11: Monitoring Modules
2x internal power supply unit (redundancy) with connectors on rear side 474-BODY21/4U Empty chassis for up to 21 boards, 1x internal power supply unit, preparation for redundancy for a second power supply unit (internal) Pos: 7 /806-IHSE/Beschreibung/Einbauoptionen/474-xx @ 6\mod_1304580008551_6.doc @ 50839 @ 2 @ 1 2021-07-06... -
Page 12: Accessories Upgrade Kits
SDI Extenders and the power supply units can get warm and must not be installed in closed rooms with no air circulation. For rack-mount installations, at least 0.5 U (height unit) is required above the SDI Extender for ventilation. Pos: 8 /806-IHSE/Beschreibung/Zubehör/Zubehör_486 @ 18\mod_1507282803159_6.doc @ 190564 @ 2 @ 4 2021-07-06... -
Page 13: Accessories
RCA cable 2.5 m (Cinch male connector) 455-CT TOSLINK cable 1.8 m (F05 male connector) 455-CX Mini-XLR cable 1.8 m (3 pole) 474- IEC connection cable for power supply, lockable IECLOCK Pos: 9 /806-IHSE/Beschreibung/Geräteansichten/UEB_Geräteansichten @ 5\mod_1278573737808_6.doc @ 41654 @ 2 @ 1 2021-07-06... -
Page 14: Device Views
Draco vario SDI Extender Device Views Pos: 10 /806-IHSE/Beschreibung/Geräteansichten/486-xx/Typ L- / R486-BSDC @ 18\mod_1507285911066_6.doc @ 190599 @ 3 @ 4 3.6.1 Model L- / R486-BSDC CPU Module CON Module Rear View Rear View Service port Service port Connect to interconnect cable... -
Page 15: Model L- / R486-Bsds
Connect to interconnect cable Connect to interconnect cable To CPU: SDI HD-BNC Connect to SDI monitor SDI HD-BNC Pos: 13 /806-IHSE/Beschreibung/Geräteansichten/486-xx/Typ L- / R486-BSDSR @ 18\mod_1507286735999_6.doc @ 190701 @ 3 @ 4 3.6.4 Model L- / R486-BSDSR CPU Module CON Module... -
Page 16: Model L- / R474-Bbx
The CPU module with balanced audio can be also used on top of an extender CON Unit. It depends on the purpose of use. Pos: 15 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BDX @ 6\mod_1304583577801_6.doc @ 51020 @ 3 @ 1 3.6.7 Model L- / R474-BDX... -
Page 17: 2-Fold Vario Chassis 474-Body2/2R
Connect to 5VDC power supply (standard) Slot for modules #2 Connect to 5VDC power supply (redundancy, optional) Pos: 19 /806-IHSE/Beschreibung/Geräteansichten/474-xx/2-fach Vario-Gehäuse 474-BODY2N @ 8\mod_1348578478411_6.doc @ 69380 @ 3 @ 1 3.6.10 2-fold Vario Chassis 474-BODY2N CPU and CON Unit Rear View... -
Page 18: 3.6.11 4-Fold Vario Chassis 474-Body4/4R
For operation with three SDI Extender CON modules and a USB 2.0 CON module in a 4-fold vario chassis, two power supplies are necessary. In this case, redundancy is inapplicable. Pos: 21 /806-IHSE/Beschreibung/Geräteansichten/474-xx/6-fach Vario-Gehäuse 474-BODY6R @ 6\mod_1304580442488_6.doc @ 50894 @ 3 @ 1 2021-07-06... -
Page 19: 3.6.12 6-Fold Vario Chassis 474-Body6R
The 6-fold vario chassis is not equipped with a fuse on its primary side. Therefore the protection against excessive currents has to be provided by the electrical installation of the building. Pos: 22 /806-IHSE/Beschreibung/Geräteansichten/474-xx/6-fach Vario-Gehäuse 474-BODY6BP @ 9\mod_1373957798252_6.doc @ 77280 @ 3 @ 1 2021-07-06... -
Page 20: 3.6.13 6-Fold Vario Chassis 474-Body6Bp
Rear View Slot for modules #5 Slot for modules #3 Slot for modules #1 Slot for modules #6 Slot for modules #4 Slot for modules #2 Pos: 23 /806-IHSE/Beschreibung/Geräteansichten/474-xx/6-fach Vario-Gehäuse 474-BODY6BPF @ 11\mod_1392644763729_6.doc @ 132650 @ 3 @ 1 2021-07-06... -
Page 21: 3.6.14 6-Fold Vario Chassis 474-Body6Bpf
Slot for modules #3 Slot for modules #1 Connect to power supply 1 Connect to power supply 2 (redundancy) Slot for modules #6 Slot for modules #4 Slot for modules #2 Pos: 24 /806-IHSE/zz_Layout/Seitenumbruch @ 8\mod_1348581820516_0.doc @ 69462 @ @ 1 2021-07-06... -
Page 22: 3.6.15 21-Fold Vario Chassis 474-Body21/4U
Draco vario SDI Extender Pos: 25 /806-IHSE/Beschreibung/Geräteansichten/474-xx/21-fach Vario-Gehäuse 474-BODY21R @ 8\mod_1348579151346_6.doc @ 69400 @ 3 @ 1 3.6.15 21-fold Vario Chassis 474-BODY21/4U CPU and CON Unit Rear View Slots for modules #1 - #21 Front View Connect to power supply 2... -
Page 23: Status Leds
Description Status LEDs Pos: 27 /806-IHSE/Beschreibung/Diagnose LEDs/486-xx/Diagnose SDI-Extender-Modul_486 @ 18\mod_1507287491534_6.doc @ 190736 @ 3 @ 4 3.7.1 Status SDI Extender Module The SDI Extender module is fitted with a multi color LED on both sides for overall status indication and with two further LEDs on the back side for indication of the connection status. -
Page 24: Status Upgrade Module Usb-Hid
Blue Unknown video signal Video signal detected Green Pos: 28 /806-IHSE/Beschreibung/Diagnose LEDs/474-xx/Diagnose Zusatzmodul USB-HID @ 6\mod_1304584220145_6.doc @ 51219 @ 3 @ 1 3.7.2 Status Upgrade Module USB-HID The upgrade module USB-HID is fitted with three further LEDs on the rear... -
Page 25: Status Upgrade Module Digital Audio
Flashing: CPU Unit: Digital noise Blue Static: CPU Unit: S/PDIF signal (TOSLINK) available Flashing: CPU Unit: Digital noise Green CON Unit: Signal available Pos: 30 /806-IHSE/Beschreibung/Diagnose LEDs/474-xx/Diagnose Zusatzmodul Symmetrisches Audio @ 15\mod_1446716773734_6.doc @ 164756 @ 3 @ 1 2021-07-06... -
Page 26: Status Upgrade Module Balanced Audio
CPU Module CON Module Rear View Rear View Pos. LED Status Description 1, 2 Status LED Green Signal available Orange Signal level too high No signal Pos: 31 /806-IHSE/Beschreibung/Diagnose LEDs/483-xx/Diagnose Überwachungsmodul SNMP @ 13\mod_1412177197177_6.doc @ 151963 @ 3 @ 1 2021-07-06... -
Page 27: Status Monitoring Module Snmp
Link status Port not activated (orange) Flashing Port activated, no connection via network cable Link status Port not activated (green) Flashing Port activated, no connection via network cable Pos: 32 /806-IHSE/Installation/UEB_Installation @ 5\mod_1278574971589_6.doc @ 41768 @ 1 @ 1 2021-07-06... -
Page 28: Installation
Draco vario SDI Extender Installation Pos: 33 /806-IHSE/Installation/Lieferumfang prüfen/Lieferumfang_prüfen_486 @ 18\mod_1507288431161_6.doc @ 190770 @ 2 @ 4 Package Contents Your extender package contains the following items: SDI Extender: SDI Extender device(s) (CPU Unit and/or CON Unit) Draco vario chassis incl. power supply ... -
Page 29: System Setup
Installation System Setup First time users are recommended to setup the system with the CPU Unit and the CON Unit in the same room as a test setup. This will allow you to identify and solve any cabling problems, and experiment with your system more conveniently. -
Page 30: Setup Of Upgrade Modules
Connect the digital audio source to the balanced audio input of the CPU Unit. Connect the audio output of the CON Unit to suitable speakers or audio amplifiers. Pos: 35 /806-IHSE/Installation/Installationsbeispiele/Installationsbeispiele_486 @ 12\mod_1410267380099_6.doc @ 149651 @ 2 @ 1 2021-07-06... -
Page 31: Example Applications
Installation Example Applications This section illustrates typical installations of SDI Extenders: Pos: 19 /806-IHSE/Installation/Installationsbeispiele/238-5v-xx @ 5\mod_1291133686078_6.doc @ 45348 @ @ 1 SDI Extender SDI Extender (with Digital / Balanced Audio) Source (SDI) SDI Extender CPU Unit Intercorrect cable SDI Extender CON Unit... - Page 32 SDI Extender CON Unit Console (SDI monitor) 10 Console (computer monitor, keyboard, mouse) SDI Extender can be switched to KVM extenders by using a Draco tera KVM matrix. Pos: 36 /806-IHSE/Konfiguration/UEB_Konfiguration @ 5\mod_1278575517073_6.doc @ 41846 @ 1 @ 1 2021-07-06...
-
Page 33: Configuration
Configuration Configuration Pos: 37 /806-IHSE/Konfiguration/Übertragungsparameter/Übertragungsparameter_486 @ 18\mod_1507290188129_6.doc @ 190906 @ 2 @ 4 Transmission Parameters The device operates with a proprietary video coding method. In default configuration, the device adapts dynamically to monitor resolution and image content. This configuration is suitable for almost all conditions and should only be modified if image quality is not fully satisfactory. - Page 34 In order to set a 'Hot Key' back to default settings of the extender, press the key combination <Right Shift> + <Del> within 5 s after plugging in a keyboard. Pos: 39 /806-IHSE/Konfiguration/474_Konfigurationsdatei/Konfiguartionsdatei_486 @ 18\mod_1507290567931_6.doc @ 190941 @ 233 @ 4 2021-07-06...
-
Page 35: Configuration File
Configuration Configuration File The SDI Extender contains a configuration file (Config.txt) to set specific parameters and to read out device and video information. You can find it on the flash drive of the SDI Extender. The flash drive can be opened by a mini USB connection to a computer. -
Page 36: Parameters For Con Units
Output 1080p with 30Hz 1080P50A Output 1080p with 50Hz (3GA) 1080P50B Output 1080p with 50Hz (3GB) 1080P60A Output 1080p with 60Hz (3GA) 1080P60B Output 1080p with 60Hz (3GB) Pos: 40 /806-IHSE/Betrieb/UEB_Betrieb @ 5\mod_1278577614980_6.doc @ 41970 @ 1 @ 1 2021-07-06... -
Page 37: Operation
Pos: 41 /806-IHSE/Betrieb/Einleitung_486 @ 18\mod_1507290910524_6.doc @ 190979 @ @ 4 The SDI Extender does not contain any setting to be done during operation. For the configuration of the SDI Extender see Chapter 5, Page 33. Pos: 42 /806-IHSE/Technische Daten/UEB_Technische Daten @ 5\mod_1278578165261_6.doc @ 42096 @ 1 @ 1 2021-07-06... -
Page 38: Specifications
Draco vario SDI Extender Specifications Pos: 43 /806-IHSE/Technische Daten/Schnittstellen/UEB_Schnittstellen @ 5\mod_1278578201870_6.doc @ 42114 @ 2 @ 1 Interfaces Pos: 44 /806-IHSE/Technische Daten/Schnittstellen/SDI_486 @ 18\mod_1507291881257_6.doc @ 191008 @ 3 @ 4 7.1.1 Video Communication of the SDI devices requires a mini coax connection with HD-BNC connectors or 3G SFPs with transmission speeds of 0.36 Gbit/s... -
Page 39: Usb-Hid
Communication between Cat X devices requires a 1000BASE-T connection. Connector wiring must comply with EIA/TIA-568-B (1000BASE-T), with RJ45 connectors at both ends. All four cable wire pairs are used. Pos: 47 /806-IHSE/Technische Daten/Schnittstellen/Glasfaser SFP Typ LC @ 5\mod_1278937700855_6.doc @ 43149 @ 3 @ 1 2021-07-06... -
Page 40: Fiber Sfp Type Lc (Interconnect)
SFP modules can be damaged by electrostatic discharge (ESD). Please consider ESD handling specifications. Pos: 48 /806-IHSE/Technische Daten/Schnittstellen/474-xx (Digital Audio-Schnittstellen) @ 15\mod_1446724755777_6.doc @ 164890 @ 3 @ 1 7.1.5 Digital Audio Interface The digital audio option supports the unidirectional transmission of digital audio data. -
Page 41: Balanced Audio Interface
For testing purposes it is possible to generate a sinus tone on the digital audio input module. In order to do so you have to set Jumper 1 on the respective input module. Pos: 49 /806-IHSE/Technische Daten/Schnittstellen/474-xx (Symmetrische Audio-Schnittstelle) @ 15\mod_1446727949950_6.doc @ 165055 @ 3 @ 1 7.1.6 Balanced Audio Interface SDI Extenders with a balanced audio interface support a unidirectional 2-channel mono or 1-channel stereo transmission in studio quality. - Page 42 Draco vario SDI Extender The Line-In connector of each mono input contains a 6.35 mm jack socket and can be used symmetrically or asymmetrically. Phantom power of a microphone: Phantom power is used for condenser microphones in order to operate the internal electronic components.
- Page 43 10 – 65 dB Connections CPU Unit 2x 6.35 mm stereo jack plug (2x audio IN) Connections CON Unit 2x 6.35 mm stereo jack plug (2x audio OUT) Pos: 50 /806-IHSE/Technische Daten/Verbindungskabel/UEB_Verbindungskabel @ 5\mod_1279191107845_6.doc @ 43870 @ 2 @ 1 2021-07-06...
-
Page 44: Interconnect Cable
Draco vario SDI Extender Interconnect Cable Pos: 51 /806-IHSE/Technische Daten/Verbindungskabel/Verbindungskabel (Cat X) @ 5\mod_1278578406026_6.doc @ 42205 @ 3 @ 1 7.2.1 Cat X A point-to-point connection is required. Operation with several patch fields is possible. Routing over an active network component, such as an Ethernet Hub, Router or Matrix, is not allowed. -
Page 45: Fiber
L474/R474 add-on modules (see notice above). Pos: 99 /806-IHSE/Technische Daten/Verbindungskabel/Verbindungskabel (LWL)_Steckverbinder 477-xx @ 5\mod_1278954447542_6.doc @ 43740 @ @ 1 Type of Connector Connector LC Connector Pos: 100 /806-IHSE/Technische Daten/Unterstützte Peripherie/UEB_Unterstützte Peripherie @ 5\mod_1278578478761_6.doc @ 42242 @ 2 @ 1 2021-07-06... -
Page 46: Coaxial
Maximum Acceptable Cable Length 0.270 Gbit/s 400 m (1,312 ft) 1.485 Gbit/s 140 m (459 ft) 2.970 Gbit/s 120 m (394 ft) Type of Connector Connector HD-BNC connector Pos: 55 /806-IHSE/Technische Daten/Pinbelegungen/UEB_Pinbelegungen @ 5\mod_1278578683636_6.doc @ 42315 @ 2 @ 1 2021-07-06... -
Page 47: Connector Pinouts
Pos: 57 /806-IHSE/Technische Daten/Pinbelegungen/HD-BNC (SDI CON) @ 18\mod_1507616776840_6.doc @ 191214 @ @ 4 HD-BNC (SDI CON) Picture Signal Data OUT Data OUT Pos: 58 /806-IHSE/Technische Daten/Pinbelegungen/Buchse Mini-USB Typ B @ 5\mod_1278578794167_6.doc @ 42387 @ @ 1 Connector Mini USB Type B Picture Signal Color VCC (+5VDC) Data –... - Page 48 Picture Signal Inside VCC (+5VDC) Outside Pos: 62 /806-IHSE/Technische Daten/Pinbelegungen/Stereo-Klinkenbuchse 3,5 / 6,35 mm @ 5\mod_1291128765156_6.doc @ 44901 @ @ 1 3.5 / 6.35 mm Stereo Jack Plug Picture Signal Audio IN / OUT L Audio IN / OUT R Pos: 63 /806-IHSE/Technische Daten/Pinbelegungen/RCA (Cinch) @ 5\mod_1291128877593_6.doc @ 44920 @ @ 1...
-
Page 49: Power Supply
Specifications TOSLINK Picture Diode Signal Data IN / OUT Pos: 66 /806-IHSE/Technische Daten/Stromversorgung/Stromversorgung_486 @ 18\mod_1507617241108_6.doc @ 191248 @ 2 @ 4 Power Supply AC Power Supply Model Max. Current Max. Voltage Frequency 474-BODY2N 700 mA max. 100-240 V 50/60 Hz 474-BODY6R 1,500 mA max. -
Page 50: Environmental Conditions
Sound Pressure Level max. 21 dBA per fan (474-6FAN) (SPL) Heat Dissipation Thermal output Corresponds to power consumption in Watt (W) (see extender configurator on the website) Pos: 68 /806-IHSE/Technische Daten/Abmessungen/474-xx @ 6\mod_1304586358176_6.doc @ 51345 @ 2 @ 1 2021-07-06... -
Page 51: Size
CPU Unit / CON Unit 482 x 462 x 176 mm (19.0" x 18.2" x 6.9") Shipping Box 645 x 574 x 368 mm (25.4" x 22.6" x 14.5") Pos: 69 /806-IHSE/Technische Daten/Transportgewicht /474-xx @ 6\mod_1304586413879_6.doc @ 51363 @ 2 @ 1 2021-07-06... -
Page 52: Shipping Weight
3.5 kg (7.7 lb) Devices in the 21-fold Vario Chassis CPU Unit / CON Unit 10.0 kg (22.1 lb) Shipping Box 14.5 kg (32.0 lb) Pos: 70 /806-IHSE/Hilfe im Problemfall/UEB_Hilfe im Problemfall @ 5\mod_1278579113839_6.doc @ 42536 @ 1 @ 1 2021-07-06... -
Page 53: Troubleshooting
Troubleshooting Troubleshooting Pos: 71 /806-IHSE/Hilfe im Problemfall/Allgemeine Störung/474-xx @ 9\mod_1373964024756_6.doc @ 77427 @ 2 @ 1 General Failures Diagnosis Possible Reason Measure Config.txt Parameter not set or Write parameter into Config.txt parameter saved file and save changes. without function Start command #CFG ... -
Page 54: Blank Screen
Check source of the video signal Check video cable between CPU Unit and video source LED 6, 7 blue Unknown resolution Check alternative resolution Pos: 73 /806-IHSE/Hilfe im Problemfall/Störung am USB-HID-Anschluss/474-xx @ 6\mod_1304586621613_6.doc @ 51399 @ 2 @ 1 2021-07-06... -
Page 55: Upgrade Module Usb-Hid
Troubleshooting Upgrade Module USB-HID CPU Module CON Module Rear View Rear View Diagnosis Possible Reason Measure LED 1 / 2 off Device at higher / lower Check connection of USB cable USB-HID port not to USB-HID device. detected Connect USB-HID device. ... -
Page 56: Digital Audio
No signal / Digital Silence at active Check LEDs at CPU Unit. LEDs 1 OK audio source Check audio format. Change audio input. Pos: 75 /806-IHSE/Technische Unterstützung/ATB_Technische Unterstützung @ 5\mod_1278579487089_6.doc @ 42650 @ 122 @ 1 2021-07-06... -
Page 57: Technical Support
Note your RMA number visibly on your shipment. Devices that are sent in without a RMA number cannot be accepted. The shipment will be sent back without being opened, postage unpaid. Pos: 76 /806-IHSE/Zertifikate/UEB_Zertifikate @ 5\mod_1278579534933_6.doc @ 42668 @ 1 @ 1 2021-07-06... -
Page 58: Certificates
Draco vario SDI Extender Certificates Pos: 77 /806-IHSE/Zertifikate/ATB_Europäische Konformitätserklärung @ 5\mod_1278579640901_6.doc @ 42686 @ 2 @ 1 10.1 North American Regulatory Compliance This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 59: Product Safety
474-BODY21/4U CAN/CSA-C22.2 No. 60950-1:2007 The compliance is verified and confirmed by TÜV Süd, Germany. Pos: 79 /806-IHSE/Zertifikate/ATB_WEEE @ 5\mod_1278579673292_6.doc @ 42704 @ 2 @ 1 10.3 WEEE The manufacturer complies with the EU Directive 2012/19/EU on the prevention of waste electrical and electronic equipment (WEEE). -
Page 60: Glossary
Draco vario SDI Extender Glossary The following terms are commonly used in this guide or in video and KVM technology: Term Explanation AES/EBU Digital audio standard that is officially known as AES3 and that is used for carrying digital audio signals between devices. - Page 61 Glossary Term Explanation Dual Link A DVI-D interface for resolutions up to 2560x2048 by signal transmission of up to 330 MPixel/s (24-bit) Dual-Head A system with two video connections Digital video standard, introduced by the Digital Display Working Group (http://www.ddwg.org). Single Link and Dual Link standard are distinguished.
- Page 62 Draco vario SDI Extender Term Explanation Single Link A DVI-D interface for resolutions up to 1920x1200 by signal transmission of up to 165 MPixel/s (24-bit). Alternative frequencies are Full HD (1080p), 2K HD (2048x1080) and 2048x1152. Single-Head A system with one video connection Single-mode 9µ...
