INPUT CURRENT VS. PUMP SWASHPLATE ANGLE
MAX. & MIN.
OUTPUT
17°
15°
10°
5°
0°
-100
mA
Input current vs. pump swashplate angle. Pump RPM is 1750 and the output load is 650 psi. Left curve is a dual coil
EDC and right is a single coil.

SERVICE PARTS

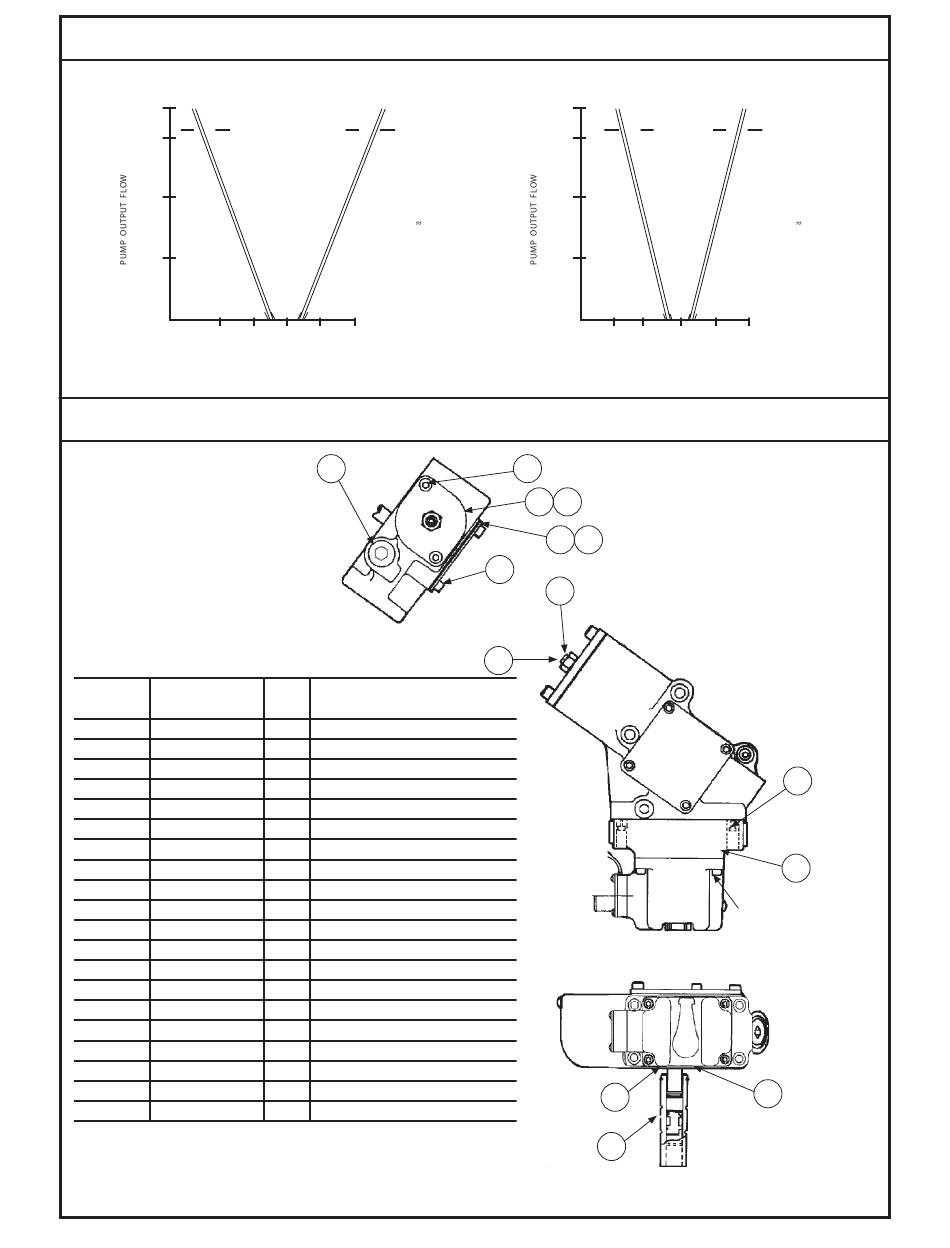

TABLE C - SERVICE PARTS.
ITEM PART
NUMBER
NUMBER
1 MCV116A3102
1 MCV116A3204
1 MCV116A3101
1 MCV116A3201
1 MCV116A3501
2 K13340
3 K13341
4 9004101-1190
5 K07057
6 K11615
7 K04064
8 K08131
9 K00944
10 K04167
11 K22582
12 K10057
13 K07006
14 K22539
** KK05602
*** KK05601
** BAG ASSEMBLY INCLUDES ITEMS 4 AND 13 AND MOUNTING SCREWS
*** BAG ASSEMBLY FOR MCV105B MODELS
NOTE: The cover is filled with a silicone oil. In the event this oil is lost, it is recommended it be restored. The
silicone oil is ordered under part number K21436, which includes instructions.
© Danfoss, 2014-05
90% OF OUTPUT
PUMP RPM 1750
LOAD 650 PSI
HYD. OIL 110 ±10° F
-50 0 +50 +100
mA mA mA
11
QTY DESCRIPTION
1 PILOT STYLE 22
1 PILOT STYLE 23
1 PILOT STYLE 26
1 PILOT STYLE 27
1 PILOT STYLE 46
1 LINK COVER
1 COVER GASKET
1 O-RING (.93 I.D. X .103)
2 SOC HD CAP SCREW (1/4-20 X 5/8)
1 HEX SEAL NUT (5/16 - 24)
4 SOC HD CAP SCREW (10 - 32 X 5/8)
1 NULL ADJUST GASKET
1 NULL ADJUST COVER
4 SOC HD CAP SCREW (10 - 32 X .5)
1 FILTER KIT
1 SOC SET SCREW 5/16 - 24 X 1.1
2 O-RING (.49 I.D. X .07)
1 SLEEVE WITH SNAP RING
1 MOUNTING HARDWARE BAG ASSY
1 MOUNTING HARDWARE BAG ASSY
