Digital Watchdog Star-Light Plus DWC-VA583WTIR Quick Start Manual page 2

STEP 3 – CHANGING THE SIGNAL IN
THE CAMERA
1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To
switch between the signals:
a. Enter the camera's OSD menu from a recorder supporting UTC
communication. Go to SETUP > OUTPUT > ANALOG MODE.
b. Set the camera's analog signal output from the following
options:
• HD-A: supports 5MP/1944p @ 20fps and 12.5fps, 4MP/1440p
@ 30fps, 2.1MP/1080p @ 30fps and 720p @ 30fps.
• HD-T: supports 5MP/1944p @ 20fps, 4MP/1440p @ 30fps,
2.1MP/1080p @ 30fps and 720p @ 30fps.
• HD-C: supports 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps
and 720p @ 30fps.
• CVBS: supports up to 960H @ 30fps
c. Change CONFIRM to ON to save the changes.
d. Go to the EXIT menu and select SAVE&EXIT to save all changes.
The camera signal automatically.
NOTE: To use your Star-Light Plus™ 5MP cameras at a lower
resolution, you must use a VMAX® A1 Plus™ DVR to
access the camera's menu due to the cameras being
set to 5MP as the default. A DVR that does not support
5MP resolution may recognize the camera, but will not
deliver a picture
STEP 4 – INSTALLING THE CAMERA
1. Once all cables have been connected, use the screws included with the camera to properly mount and secure the camera to
the mounting surface.

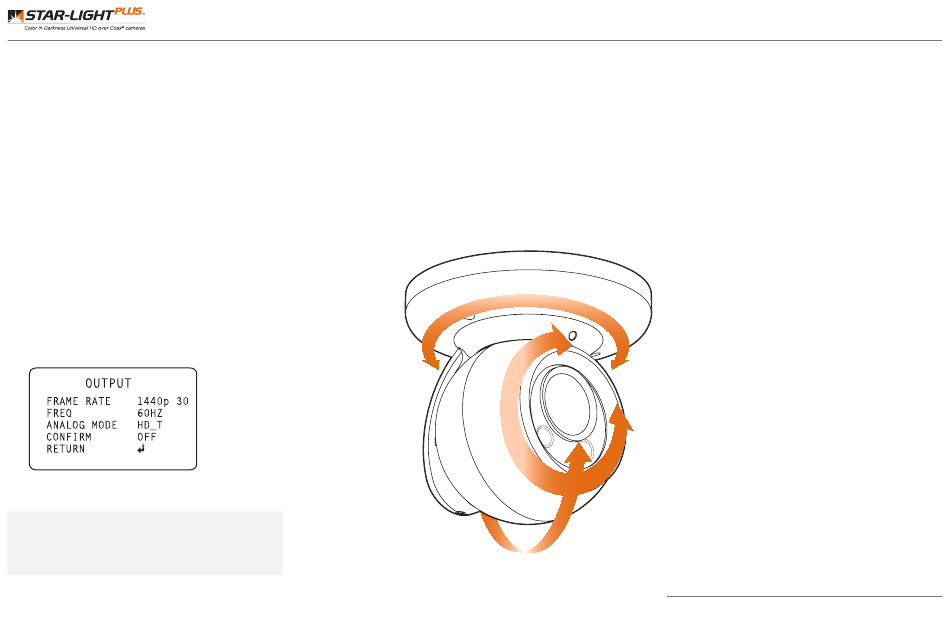

2. Adjust the camera's pan, tilt and position to achieve the desired view. To adjust the camera's angle, loosen the pan/tilt/rotation
screw at the base of the camera. . The cameras' max angles are:
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
3. The DWC-VA583WTIR camera includes a vari-focal p-iris lens with motorized zoom and auto-focus. The zoom and focus can
be controlled using the up the coax (UTC) communications. Simply connect the camera to a UTC enabled DVR and adjust the
camera's zoom and focus remotely from the DVR.
4. Once the installation is complete, tighten the pan/tilt/rotation screw until it's secure.
Panning 360°
Titling 90°
Rotation 360°
Copyright © Digital Watchdog. All rights reserved.
Rev Date: 08/19 Specifications and pricing are subject to change without notice.
Quick Start Guide
