- Page 1 GRILLSKÄR...
-
Page 2: List Of Features

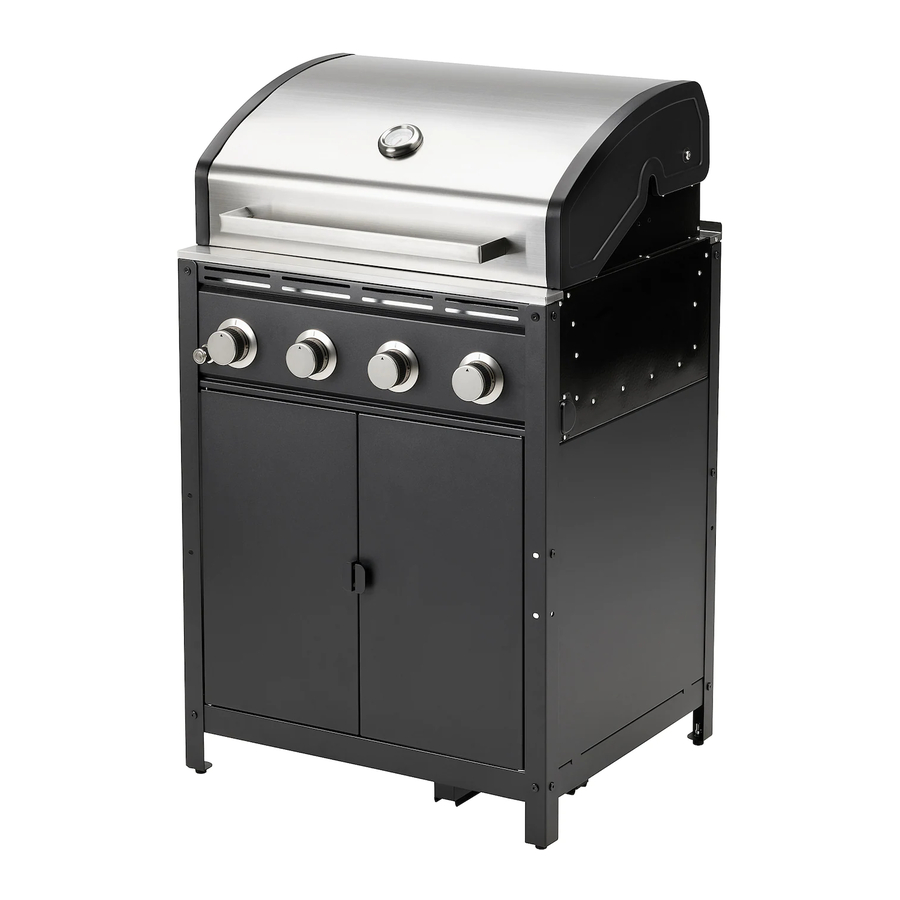

GRILLSKÄR gas barbecue LIST OF FEATURES The numbering of the product features shown refers to the illustration of the barbecue on the graphic page. 1. Handle 2. Hood 3. Warming rack 4. Cooking grill 5. Vaporizer bars 6. Burners 7. Control knobs 8. - Page 3 English...
- Page 4 English WARNING Use outdoors only. Read the instructions before using the appliance. Failure to follow these instructions and safety warnings may result in serious bodily injury or death, and/or property loss. Warning: accessible parts may be very hot. Keep young children away. Do not move the appliance during use.
-
Page 5: Safety Symbols
SAFETY SYMBOLS hose and regulator are for LP gas only. The safety symbols and their meanings are This barbecue has been supplied with a explained below. Read and follow the instructions propane regulator (only use with propane in this manual carefully. gas). Should you need to change the gas cylinder, DANGER make sure the barbecue is switched off, and that there are no sources of ignition... - Page 6 The gas cylinder must not be stored next to • To be performed in a well-ventilated area. this or any other appliance. • Be sure all control knobs are in the ‘OFF’ position. Always follow care and maintenance • Check for leaks by brushing a solution of 1/2 instructions –...
- Page 7 Connecting to the Cylinder Operating and installation conditions • Confirm all barbecue control knobs are in the • The pressure regulator & hose kit is designed for ‘OFF’ position. appliances with a service pressure of 37 mbar, as indicated on the pressure regulator (1), with power below that indicated on the regulator (1) 1.5kg/h of propane. • The pressure regulator must be protected from the rain in order to prevent water penetrating through the vent (3).
- Page 8 D) Replacement of a cylinder • Unscrew ignition button (8) and insert AA Make sure that: battery, positive end facing outwards. Screw • all taps on the gas consuming appliance are in ignition button (8) back into place. Open the the “off” position. barbecue hood (2) and turn on gas supply at gas • the “Compact Quick-on” regulator handle (2) is in cylinder. the “off” position. Then, dismount the “Compact • Turn burner control knob (7) to position Quick-on” by pressing horizontally on the handle (2) and pulling upwards at the same time.(Fig 4).
-
Page 9: Food Safety
fat from meat and poultry before grilling. The CARE AND MAINTENANCE burners should always be placed on the low setting • Regularly clean your barbecue between uses during cooking. Always protect your hands when and especially after extended periods of storage. handling anything near cooking surface of the •... -
Page 10: Technical Information
HOW TO REACH US IF YOU NEED OUR SERVICE Contact your local IKEA store. You will find the address and phone number in the IKEA catalogue or at www.IKEA.com. To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Instruction section of this manual before contacting us. - Page 11 580 mm (22 53/64") 320 mm (12 19/32")
-
Page 12: Troubleshooting
Clean burner Obstructions in gas jets or gas Clean jets and gas hose Windy conditions Use BBQ in a more sheltered position Gas valve knob difficult Gas valve jammed Replace gas valve to turn © Inter IKEA Systems B.V. 2020 AA-2260757-2...
