CONTENT Warning ....................1 I Introduction................... 3 II Model Series ..................4 III Electrical Signs .................. 5 IV Technical Specifications ..............6 V Structure of the Leaker..............8 VI Operating Method ................9 1.Start-up, Shutdown ................ 9 2.Leaker Measurement ..............10 3. -
Page 3: Warning
Warning Thank you for purchasing our company's High Accuracy Clamp Leaker, for better use of this product, please: ——Read carefully the user's manual. ——Follow strictly safety rules and notes listed in this manual. u Under any circumstances, please pay special attention to your safety in course of using this leaker. - Page 4 authorized personnel. u In case dangers would occur if continue to use a faulty leaker, please stop to use it and seal it for safekeeping immediately; and then, send it for disposal of authorized agency. u Users shall carry out operation based on danger signs “ ”...
-
Page 5: I Introduction

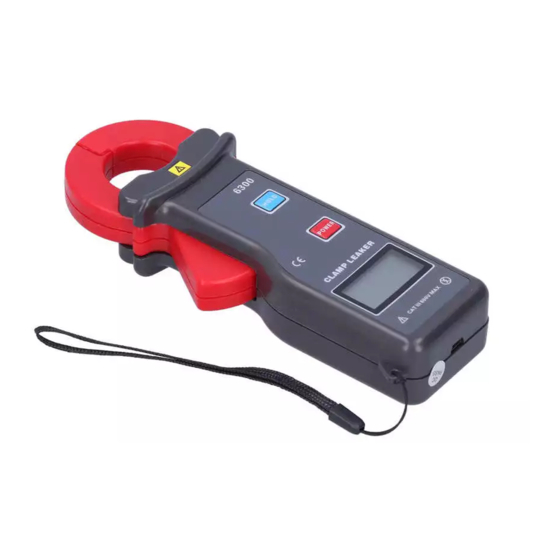

I Introduction High Accuracy Clamp Leaker is specially designed for measurement of AC leakage current; by adopting up-to-date CT technology and digital integration technology, it is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific &... -
Page 6: Model Series
are also functions like saving to documents and printing when connected to This High Accuracy Clamp Leaker could be used for AC Line current measurement and on-line current measurement with voltage lower than AC600V; it also have those functions as peaking holding, data holding and data storage;... -
Page 7: Electrical Signs
III Electrical Signs Extremely dangerous! Operators shall strictly keep to safety rules; otherwise there would be dangers of electric shock to cause personal injuries or casualties. Dangerous！Operators shall strictly keep to safety rules; otherwise there would be dangers of electric shock to cause personal injuries or casualties. -
Page 8: Technical Specifications
IV Technical Specifications Measurement of AC leakage current, AC Function current and on-line measurement Power Zn-Mn dry battery,6F22,9V Test Mode Clip-on CT，integral mode Display Mode Four digits LCD display Width × Height× Thickness： Dimension 175mm×70mm×38mm LCD Dimension 35mm×21.5mm； display domain： 32mm×15mm Sampling Rate about 2 times/s Frequency... - Page 9 Push without release, the meter will HOLD Peak Hold show the peak value during the pushing period indicating the reading is hold Reading Hold indicating the current is out of range Out of Range 5 Minutes after power on, it will power off Auto Power-off automatically to lower the power consumption Indicating the battery voltage is lower then...
-
Page 10: Structure Of The Leaker
V Structure of the Leaker 1. Double Input Toroid 2. Upper Cover 3. Totoid Opening Lever 4. HOLD Key 5. POWER key 6. LCD 7. RS232 Interface 8. Back cover 9.Battery cover... -
Page 11: Operating Method
VI Operating Method 1. Start-up, Shutdown Press key to start up, LCD will begin to display; Press the POWER key again, the leaker will shut down. After starting up for 5 POWER minutes, LCD will flick notes that the leaker will shut down automatically;... -
Page 12: Leaker Measurement
2.Leaker Measurement High voltage, extremely dangerous! Operators shall strictly observe safety rules; otherwise there would be risk of electric shock to cause personal injuries or casualties. Dangerous！Please don’t use it to measure current higher than 300A; otherwise there would be risk of electric shock to cause personal injuries or equipment damages. - Page 13 (See Reference Diagram Fig-1,Fig-2) Fig-1 Test Leaker Fig-2 Test Total Current -11-...
-
Page 14: Peak Holding
3）Read LCD display data. In case symbol was displayed, it OL mA means that current of measured line is beyond the maximum limit of this leaker; with this case, please shift gear with much higher range limit. 3. Peak Holding Attention! For your safety, when measuring heavy current, after confirmed the completion of correct operating test, please move the leaker away from... -
Page 15: Function Quick Look Up
with a unit ID; press key again to release the hold state, and HOLD the leaker continues its measuring; in case stored data reached to ” symbol will display, “FULL 60 groups, press key again, the HOLD which means storage memory is full; press key to cancel HOLD ”... -
Page 16: Display Example And Meaning
Data access /turn pages Key + HOLD POWER key) HOLD VIII Display Example and Meaning 1.---Measured leakage current is 0.25mA. 2.---Low battery, please change. 3.--- Measured leakage current is 0.25mA is held and automatically stored unit ID is NO.03. 4. ---Access the unit 3 of the stored Data -14-... -
Page 17: How To Change Battery
IX How to Change Battery Warning! It is dangerous to carry out test when the battery cover plate was not on its position. Please pay attention to the polarity of battery to avoid damaging the leaker. Chang the low battery in time If you expect not to use the meter for a long time, please get off the battery to storage. -
Page 18: Accessories
X Accessories Clamp tester 1 pc RS232 Com cable 1 pc Software 1 disk Battery（6F22 9V） 1 pc User Manual 1 copy Warranty card / Certification 1 copy -16-... - Page 19 Manufactured by ETCR Electronic Technology Company Address: F-3F, No.4 Pengshang Zhifu Road, Jiahe, Baiyun District, Guangzhou, Guangdong, China Post Code: 510440 Tel: (86-20)62199556 62199553 Fax: (86-20)62199550 E-mail: info@etcr.cc Website: www.etcr.cc...
