Summary of Contents for ETCR 9000

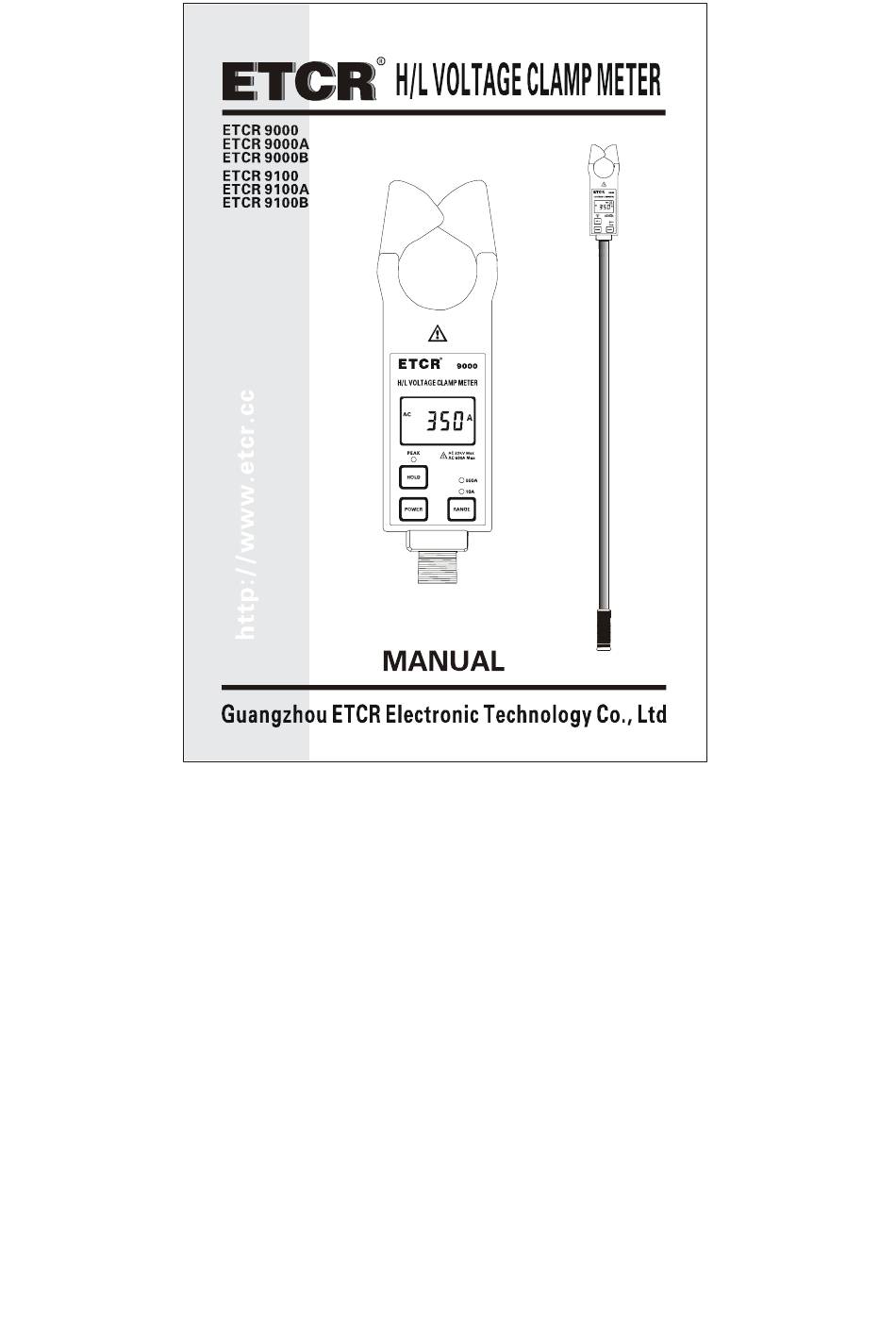

  • Page 1 Catalogue...

  • Page 2: Table Of Contents

    Warning…………………………………………………………………2 I. Profile…………………………………………………………………3 II. Electrical Symbols……..……………………………………………4 III. Technical Specifications...…………………………………………5 IV. Structure….…………………………………………………………7 V. LCD Display…………………………………………………………8 1. LCD Display Screen……………….………………………………8 2. Explanation for Special Symbols…………………………………8 3. Display Demonstration ……………………………………………8 VI. Operation Ways….….……………………………………………10 A. Tester Operation...………………………………………………10 1. Power On/Off ….…………………………………………………10 2. Gear Shift Choice …..……………………………………………11 3.

  • Page 3: Warning

    Thanks for your purchase of ERCR9000 H/L Voltage Clamp Meter of our company. In order to make better use of this product, please make sure to: ----Read this manual in detail and the operator must totally understand this manual and be in proficient in operation of this meter before making test on spot.

  • Page 4: Profile

    anti-rust desiccant lubricant (such as WD-40), and making a gentle wiping. u For the reason of this meter, in case that any danger may occur if continue to use it, stop using it immediately and seal it up for keeping at once, which shall be dealt with by qualified authorization agency.

  • Page 5: Electrical Symbols

    high-stability on constant test perennially. ETCR9000 Series H/L Voltage Clamp Meter is connected with insulation rod, which can be used for measuring high voltage current that is below 23KV, on-line current measurement, also having peak maintenance, data preservation, data storage, infrared transmission and other functions, and its special clamp meter can make it easier for clamping or evacuating the tested wire through pressing or pulling back the insulation rod, time-saving...

  • Page 6: Technical Specifications

    III Technical Specifications High voltage AC current measurement, low Function voltage current, leakage current measurement, on-line AC current supervision. Power Supply DC6V Alkaline Dry Battery (1.5V AAA X 4) Test Method Clamp CT, Integral Method *Transmission Infrared Transmission, the maximum distance Method for direct transmission is about 10m.
  • Page 7 Technical Specifications (Continued Table) 99 Groups, during storage, the symbol “MEM” Data Memory gives indication, “FULL” mark will flash to indicate the memory has been full. The function of automatic capture and maintain the maximum average value, under Peak general test mode, press HOLD button longer Maintenance till PEAK light is bright, that is, start PEAK test function, also known as peak test.

  • Page 8: Structure

    Technical Specifications (Continued Table) Insulation AC 40KV/rms (Between insulation rod and Intension clamp core) Structure Anti-Dripping Type II Ⅳ Structure 1. Transducer clamp (including transducer domain) 2. Tester 3. Brand Sign 4. Product Name 5. LCD Display 6. Peak Test Mode Indicator 7.

  • Page 9: Lcd Display

    Ⅴ LCD Display 1. LCD Display Screen ⑴. AC Symbol ⑵. Symbol for low battery voltage ⑶ Data Storage Symbol ⑷ Data Reference Symbol ⑸ 2-digit Storage Data Serial Number ⑹ Unit Symbol ⑺ Data Locked Symbol ⑻ Decimal System Radix Point ⑼...
  • Page 10 ⑵ ——Lock Display Data ——This data is automatically stored in Group 3 ——The current on test is: 160.5A ⑶ ——The current on test is: 571A ——Display symbol for low battery voltage. Please replace battery. ⑷ ——Refer to data of group 3 in storage ——The current on test is: 160.5A ⑸...

  • Page 11: Operation Ways

    ⑺ ——Exit Function Indicator “End” ⑻ ——“no- -”dynamic display: No reception signal Ⅵ Operation Ways Please check all parts of the meter carefully before usage to see whether there is any damage. And make sure no damage before usage. To install battery according to the illustration of this manual.

  • Page 12: Gear Shift Choice

    power off. Under PEAK test mode, firstly press POWER button for exit from PEAK test mode, returning to general test mode, then press POWER button for power off. That is, under PEAK test mode, it needs to press POWER button twice for power off.
  • Page 13 General Test: In the process of test, it will show the tested current value on real time by LCD display, and LCD data will vary with the current change. When the tester is removed away from the lead on test, it will not preserve the test result, LCD display will return to zero.

  • Page 14: Peak Test

    Under HOLD mode, press HOLD button to cancel HOLD function, and return to general test mode. Under data reference mode, press POWER button longer (over 3 seconds) to exit from data reference mode, returning to general test mode. Under PEAK test mode, press POWER button for exit from PEAK test mode, returning to general test mode.

  • Page 15: Data Maintenance

    Under general test mode, press HOLD button longer (over 3 seconds), PEAK indicator light will be bright, entering PEAK test mode. That means meter will show and automatically keep the maximum average value in the test. Under any other mode, it must be returned to general test mode, and then make PEAK test according to the above operation.

  • Page 16: Data Transmission

    Under data reference mode, press HOLD button + POWER button to delete all the data in storage, and return to general test mode. During the deletion of data, it will show “dEL” symbol. *9．Data Transmission ERCR9000A TYPE has the function of infrared data transmission.

  • Page 17: Data Reception

    returning to receiving data mode, then press POWER button for power off. During the exit from data reference, it will show “End” symbol. 2．Data Reception After normal power on, the receiver will under receiving mode. If there are emission data, the receiver will show the test result on real time.

  • Page 18: Data Deletion

    6．Data Deletion Under data reference mode, press HOLD button + POWER button to delete all the data in storage, and return to receiving data mode. During the deletion of data, it will show “dEL” symbol. Ⅶ Replacing Batteries Warning! In case that the battery’s cover board is not well closed, it is forbidden to make test.

  • Page 19: Enclosed With Tester Assembly Drawing

    Tester 1PCS *Receiver 1PCS Insulation Rod (1M/Section) 5 Sections Meter Box 1PCS Battery (Alkaline Dry Battery AAA) 4 PCS（* or 8 PCS） User’s Manual/ Maintenance Card/ 1SET Conformity Certificate Enclosed with Tester Assembly Drawing...
  • Page 20 Guangzhou City Yitai Electronics Technology Co., Ltd. Address: 3 Building B, Xianbei Industry Zone, Beiji, Baiyun Road, Guangzhou City. Postal Code: 510440 Tel.: 86-20-36282512 36282505 Fax.: 020-36282515 Email: etcr@vip.163.com Website: http://www.etcr.cc...
