6. Insert the flling loop inlet into the diverter valve and gently push the new flow manifold onto the large diverter
valve outlet port (See figure 4 below).
7. Fit the large wire clip supplied to secure the manifold to the diverter valve (See figure 4 below). Ensure the clip is
aligned and fully entered.
8. Reassemble the diverter valve and flow manifold assembly, complete with filling loop, to the appliance.
9. Refer to the Installation and Servicing Instructions to complete the reassembly.

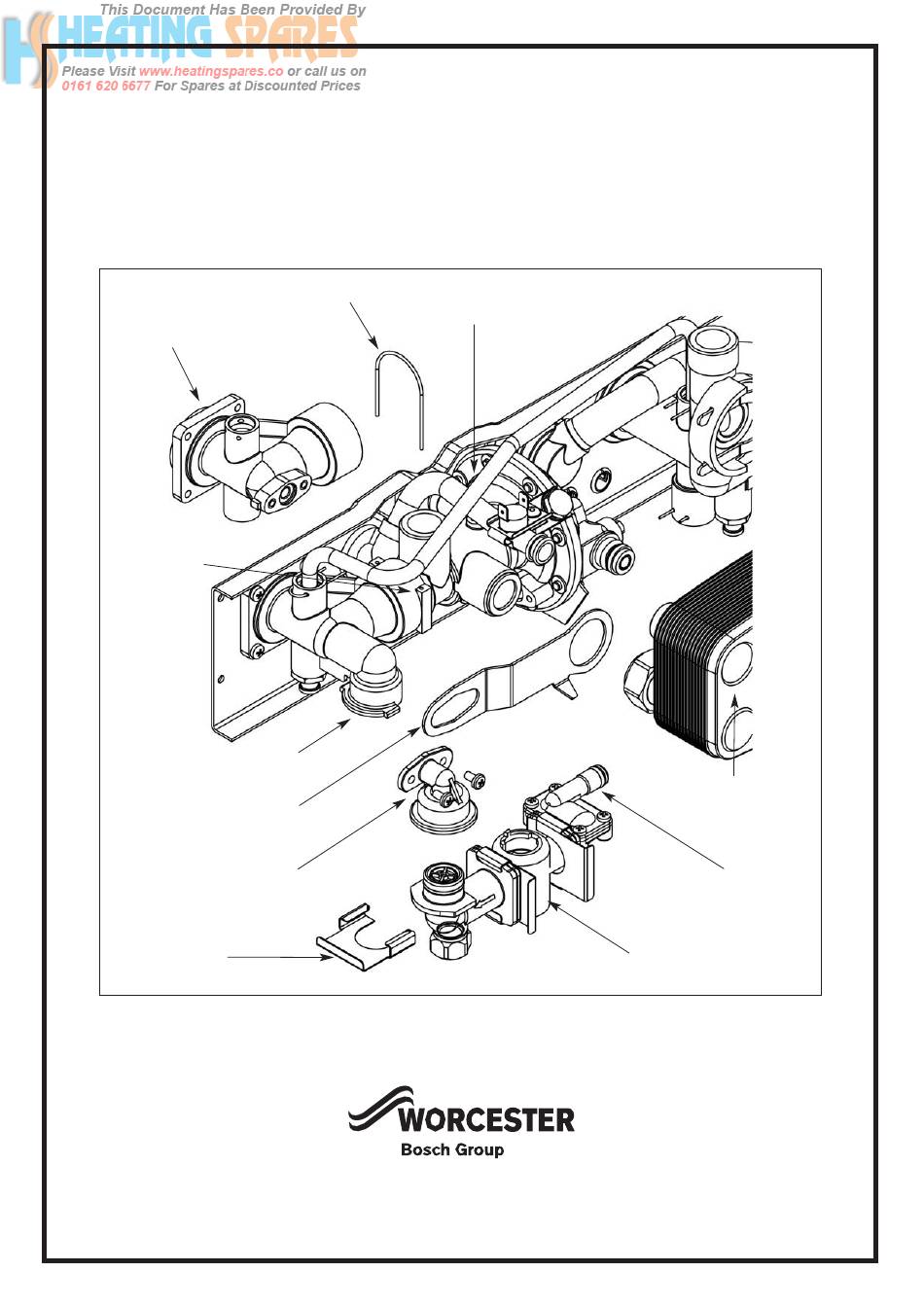

4.
Old Plastic Flow Manifold
Diverter Valve
Outlet Port
New Plastic Flow Manifold
Support Bracket
(DISCARD)
Plastic Elbow and Screws
(DISCARD)
Retaining clip
Worcester Heat Systems Limited (Bosch Group), Cotswold Way, Warndon, Worcester WR4 9SW. Telephone: (01905) 754624. Fax: (01905) 754619. Technical Helpline (08705) 266241.
This leaflet is accurate at the date of printing but will be superseded and should be disregarded if regulations change or product specifications are changed in the interests of continued improvement.
All goods sold are subject to our official Conditions of Sale, a copy of which may be obtained on application.
Supplied By www.heating spares.co Tel. 0161 620 6677
Large Wire Clip
Diverter Valve
www.worcester-bosch.co.uk
PUBLICATION 8 716 114 739a (11/07)
Water to Water
Heat Exchanger
Filling Loop Inlet
Filling Loop
