FS AP Series Quick Start Manual

Hide thumbs

Advertisement

Table of Contents

ENTERPRISE WI-FI 6 ACCESS POINT
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP Series and is the answer not in the manual?

Questions and answers

Related Manuals for FS AP Series

Summary of Contents for FS AP Series

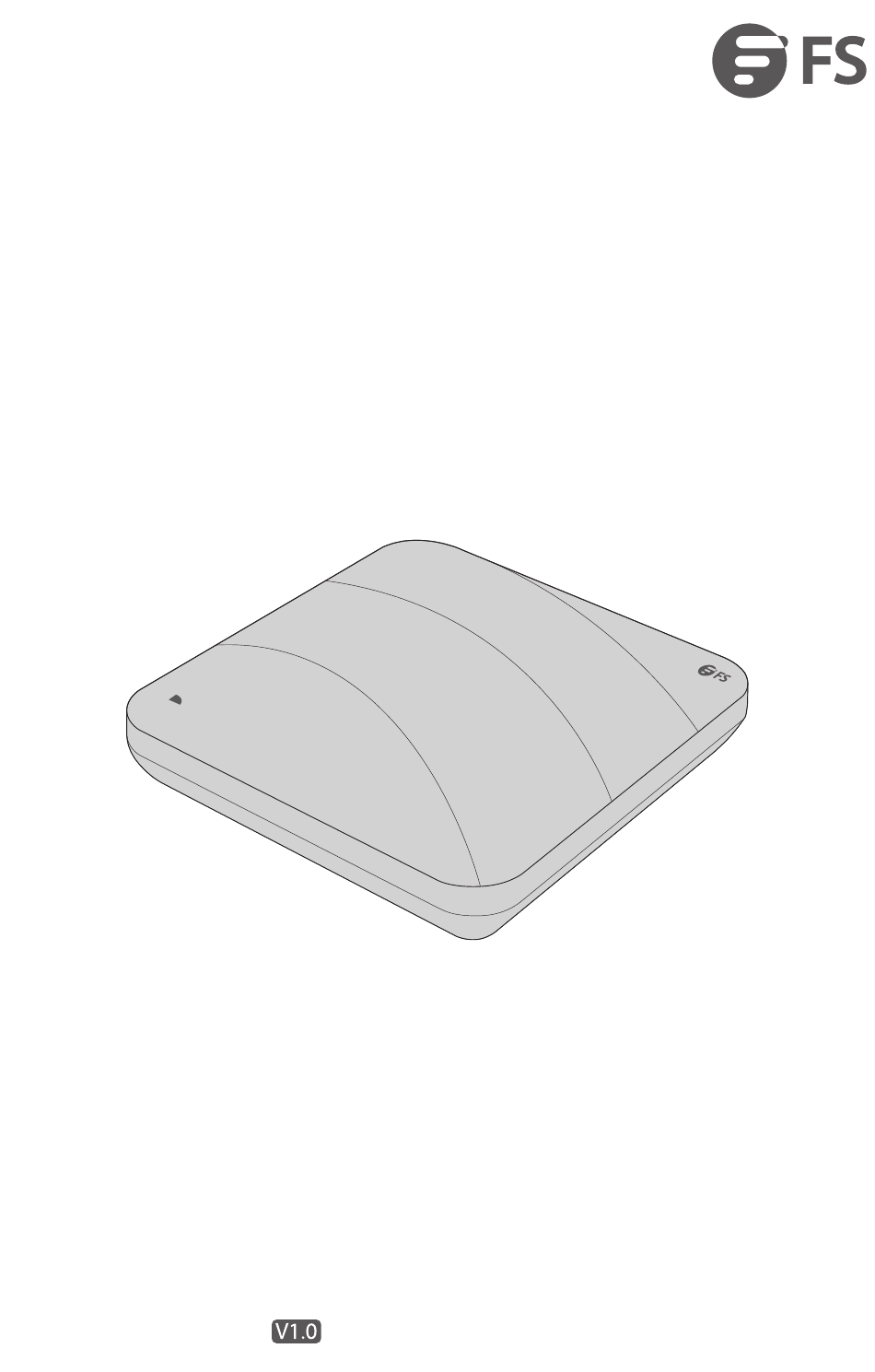

  • Page 1 ENTERPRISE WI-FI 6 ACCESS POINT Quick Start Guide...
  • Page 2 Introduction Thank you for choosing the enterprise Wi-Fi 6 access point. This guide is designed to familiarize you with the layout of the access point and describes how to deploy the access point in your network. AP-W6D2400C AP-W6T3267C/AP-W6Q4134C AP-W6T6817C/AP-W6T10000C Accessories AP-W6D2400C POWER ACTIVE...
  • Page 3 AP-W6T3267C/AP-W6Q4134C/AP-W6T6817C/AP-W6T10000C POWER ACTIVE Power Cord x1 Power Injector x1 Screw x4 Screw Anchor x4 Mounting Bracket x1 Hidden Lock’s Key x1 Optional (Not Included)

  • Page 4: Hardware Overview

    Hardware Overview Ports AP-W6D2400C Power Console LAN/PoE AP-W6T3267C/AP-W6T6817C Power LAN1/PoE LAN2 Console LAN3/IoT AP-W6Q4134C Power LAN2/IoT LAN1/2.5G/PoE Console...
  • Page 5 AP-W6T10000C Console LAN3/IoT Power LAN2/HPoE LAN1/HPoE Ports Description LAN/PoE LAN/PoE port LAN1/PoE LAN1/PoE port LAN1/HPoE LAN1/HPoE port LAN1/2.5G/PoE LAN1/2.5G/PoE port LAN2 LAN2 port LAN2/HPoE LAN2/HPoE port LAN2/IoT LAN2/IoT port LAN3/IoT LAN3/IoT port Security Lock Anti-theft lock hole Console An RJ45 console port for serial management A USB management port for software and con guration backup and o ine software upgrade Power...
  • Page 6 Button AP-W6D2400C Reset AP-W6T3267C/AP-W6Q4134C/AP-W6T6817C Reset AP-W6T10000C Reset...
  • Page 7 Button Description Restart: Press the Reset button for less than three seconds. Reset Restore to Factory Default Settings: Press and hold the Reset button for more than three seconds. LEDs AP-W6D2400C AP-W6T3267C/AP-W6Q4134C/AP-W6T6817C/AP-W6T10000C...
  • Page 8 FIT AP: Status Frequency Description The AP is not receiving power, or the AP is in Do Not Disturb mode, which can be disabled by software. UBoot program initialization in progress. Blinking Green Main program initialization in progress. Solid Green Initialization is complete, but the Ethernet 1.5Hz link is down.

  • Page 9: Installation Requirements

    FAT AP: Status Frequency Description The AP is not receiving power, or the AP is in Do Not Disturb mode, which can be disabled by software. UBoot program initialization in progress. Blinking Green Main program initialization in progress. Solid Green Initialization is complete, but the Ethernet Blinking Red 1.5Hz...

  • Page 10: Mounting The Access Point

    Mounting the Access Point Ceiling Mount AP-W6D2400C 1. Position the mounting bracket at the desired location on the ceiling. Use a marker to mark the two mounting holes. 2. Drill holes with a diameter of 6 mm (0.24 in) in the marked locations. 3.
  • Page 11 4. Secure the mounting bracket to the ceiling by inserting the screws into the anchors. 5. Align the tabs on the AP bracket into the notches on the ceiling bracket, and then slide the AP until it snaps into place.
  • Page 12 NOTE: 1. Before mounting the AP on the bracket, you must rst install the Ethernet cables. 2. The tabs should t easily into the mounting slots. Do not forcibly push the AP into the slots. 3. After installation, verify that the AP is securely fastened. 4.
  • Page 13 Removing the AP AP-W6D2400C Hold the AP in your hands and push it sideward to release the tab from the notch. AP-W6T3267C/AP-W6Q4134C/AP-W6T6817C/AP-W6T10000C 1. If the hidden lock is enabled, attach the front part of the key to the edge of the mounting bracket. 2.
  • Page 14 3. Hold the AP in your hands and push it sideward to release the tab from the notch.
  • Page 15 Connecting the PoE Power Supply PoE Switch Use an Ethernet cable to connect the Ethernet port on the AP to the PoE port on a PoE switch. PoE Injector Intranet Use the power cord, power injector and Ethernet cable to connect the PoE port of the AP to the local power source.
  • Page 16 Con guring the Access Point Con guring the AP Using the Web-based Interface Step 1: Connect the computer to the business port of the AP using the network cable. Step 2: Set the IP address of the computer to 192.168.1.x. (“x” is any number from 2 to 254.) I nter net Protocol Version 4 ( TCP / IP v4 ) Prop er ti e s General Yo u c a n g e t I P s e t t i n g s a s s i g n e d a u t o m a t i c a l l y i f y o u r n e t w o r k...
  • Page 17 System Mode Current Mode: Fit AP Mode Internet Internet ROUTER POE SW POE SW CLLENT CLLENT Fit AP Mode Fit AP Mode NOTE: The device restarts after mode switch. please wait for a minute. NOTE: The access points work in Fit AP Mode by default. Con guring the AP Using the Console Port (FAT AP Mode) Step 1: Connect a computer to the AP's console port using the console cable.

  • Page 18: Troubleshooting

    2. Verify that the Ethernet port is properly connected. 3. Verify that the AP is correctly con gured. 4. Move the client device to adjust the distance between the client and the AP. Support and Other Resources Download https://www.fs.com/download.html Help Center https://www.fs.com/service/help_center.html Contact Us https://www.fs.com/contact_us.html...

  • Page 19: Product Warranty

    Product Warranty FS ensures our customers that any damage or faulty items due to our workmanship, we will o er a free return within 30 Days from the day you receive your goods. This excludes any custom made items or tailored solutions.

This manual is also suitable for:

Ap-w6d2400cAp-w6t3267cAp-w6q4134cAp-w6t6817cAp-w6t10000c
