Yakima Safety Pole Quick Start Manual

Available languages

IF YOU NEED FURTHER TECHNICAL

ASSISTANCE OR REPLACEMENT PARTS:

Please contact your dealer or call us at (888) 925-4621

Monday through Friday, 7:00

IMPORTANT WARNING

IT IS CRITICAL THAT ALL YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER

ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO

OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS PRIOR

TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ

AND UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION

OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE

AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A

PROFESSIONAL INSTALLER.

1033554C-1/4

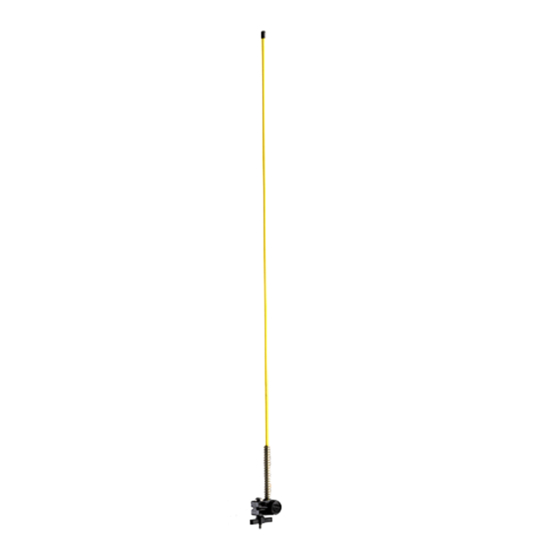

Safety Pole

. to 5:00

. PST.

SNAR (1X)

HEX KEY (1X)

BOLT (1X)

NUT (1X)

WASHER (1X)

T-BOLT (1X)

SAFETY POLE (1X)

Table of Contents

Do you have a question about the Safety Pole and is the answer not in the manual?

Page 1 T-BOLT (1X) IMPORTANT WARNING IT IS CRITICAL THAT ALL YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO OTHERS.
Page 2 OPTION A OPTION B • Install on the right rear crossbar. • Install on the right side of trailer. • Install as far outboard as possible. Insert T-Bolt into slot as shown. Put the SNAR (snap around) around the crossbar as shown. Insert bolt through the coil, SNAR, and into the hex key.
Page 3 BOULON À TÊTE CARRÉE (X 1) AVERTISSEMENT IMPORTANT: IL EST IMPÉRATIF QUE LES PORTE-BAGAGES ET LES ACCESSOIRES YAKIMA SOIENT CORRECTEMENT ET SOLIDEMENT FIXÉS AU VÉHICULE. UN MONTAGE MAL RÉALISÉ POURRAIT PROVOQUER UN ACCIDENT D’AUTOMOBILE, QUI POURRAIT ENTRAÎNER DES BLESSURES GRAVES OU MÊME LA MORT, À VOUS OU À D’AUTRES PERSONNES. VOUS ÊTES RESPONSABLE DE L’INSTALLATION DU PORTE-BAGAGES ET DES ACCESSOIRES SUR VOTRE VÉHICULE, D’EN VÉRIFIER LA SOLIDITÉ...
Page 4 OPTION A OPTION B • Poser la perche sur la barre transversale arrière, à droite. • Poser la perche du côté droit de la remorque. • La poser le plus à l’extérieur possible. Enfiler le boulon à tête carrée dans la fente tel qu’illustré. Installer le collier SnapAround sur la barre transversale tel qu’illustré.
