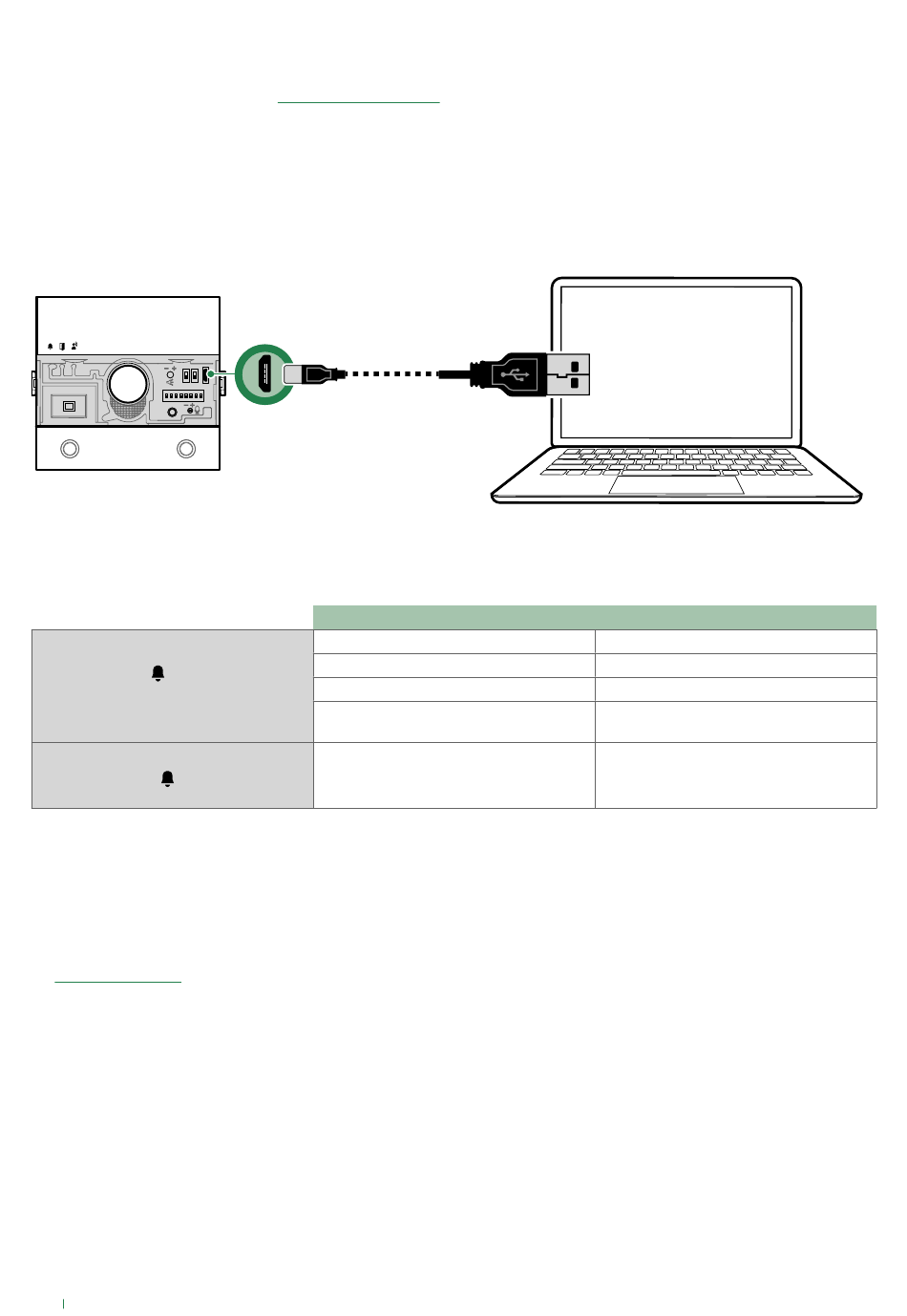

Configuring via PC

All device configurations can be performed via PC and ViP Manager configuration software, available to download free of
charge from pro.comelitgroup.com
For example:
• programming call addresses for the buttons
• activating audiovisual indications
• adjusting the backlighting and twilight sensor threshold
• setting the functions that can be assigned to the RTE input (lock-release, relay control, actuator control, etc.)
• setting activations that can be assigned to the module SE outputs and relay
√ You will need a USB micro-USB cable.

Errors and indications

RED LED LIT STEADILY
+
DISSUASION TONE
RED LED FLASHING

System performance and layouts

For further information regarding system performance and to view installation layouts, click on the system type:
• Simplebus1 audio
28
.
(See programming manual)
INDICATION
Line short-circuit
Dual power supply present
Button modules with the same ID
Programming selector positioning error
Device in programming
SOLUTION
Check connections
Remove jumper J4 on the audio module
Check the button module IDs
Check the position of selectors S1 and
S2 (they cannot both be set to ON)
