- Page 1 TECHNICAL MANUAL Mini 2738W/A Door-entry phone with handset - Simplebus2 Passion.Technology.Design.
-
Page 2: Table Of Contents
• any purpose other than the intended use, • failure to observe the indications and warnings contained in this Manual / Instruction sheet. Comelit Group S.p.A. reserves the right to change the information provided in this Manual / Instruction Sheet at any time and without prior notice. -
Page 3: Description

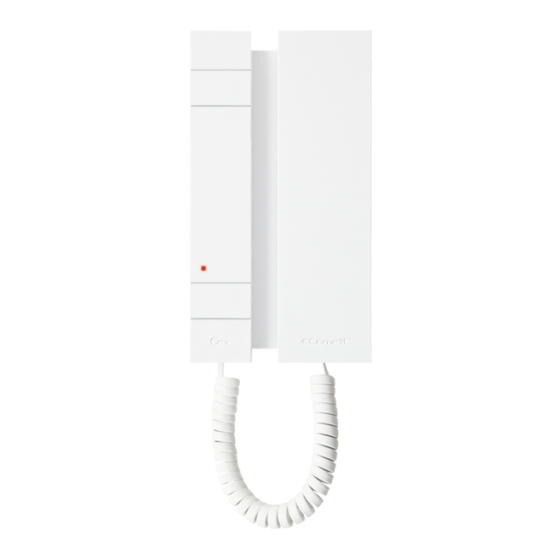

Description Mini series door-entry phone with handset for Simplebus2 audio systems, equipped with call to floor, a key button and a button for additional services such as intercom calls and calls to the porter switchboard. The call volume can be adjusted using the relevant 3-position selector. -
Page 4: Technical Characteristics
Technical characteristics GENERAL DATA Product height (mm) Product width (mm) Product depth (mm) Product weight (g) Product colour White RAL9003 Material Surface-mounted Desk base-mounted Yes, with specific accessory COMPATIBLE SYSTEMS Simplebus2 audio/video with power supply unit art. 4888C Simplebus2 audio/video with power supply unit art. 1210/1210A Simplebus2 audio/video kit with power supply unit art. -
Page 5: Installation
Installation 105 mm max 7cm CLACK! CLACK! -
Page 6: Connections
Connections Connection to the video entry system riser 2738W/A VIDEO ENTRY SYSTEM MONTANTE RISER VIDEOCITOFONICA 1214/2C FLOOR CHIAMATA FUORIPORTA DOOR CALL MONTANTE VIDEO ENTRY SYSTEM VIDEOCITOFONICA RISER 20 m MAX - Use shielded cable for the connection and do not route the cables in the vicinity of heavy inductive loads or power supply cables (230 V/400 V). -
Page 7: Programming
Programming • Each door-entry phone in the system is identified by means of its own code. This code must be set using the DIP-switch on the phone card. • Refer to the Addressing table to identify the DIP-switch combination corresponding to the address you want to set. •... -
Page 8: System Performance And Layouts
System performance and layouts For further information of system performance and to view installation layouts, click on the system type that best meets your requirements: • Simplebus2 audio/video kit with power supply unit art. 1209 for the creation of audio-video systems for individual residences •...
