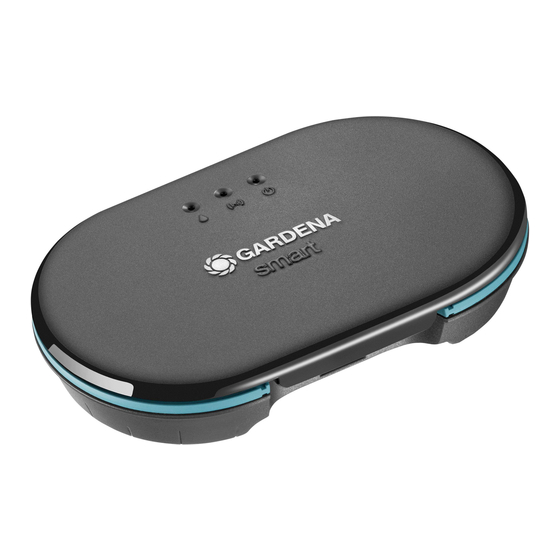

Gardena smart system 19032 Operator's Manual

Irrigation control
Hide thumbs Also See for smart system 19032:
Table of Contents

Advertisement

Quick Links

Art. 19032
EN
Operator's manual
smart Irrigation Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the smart system 19032 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gardena smart system 19032

Summary of Contents for Gardena smart system 19032

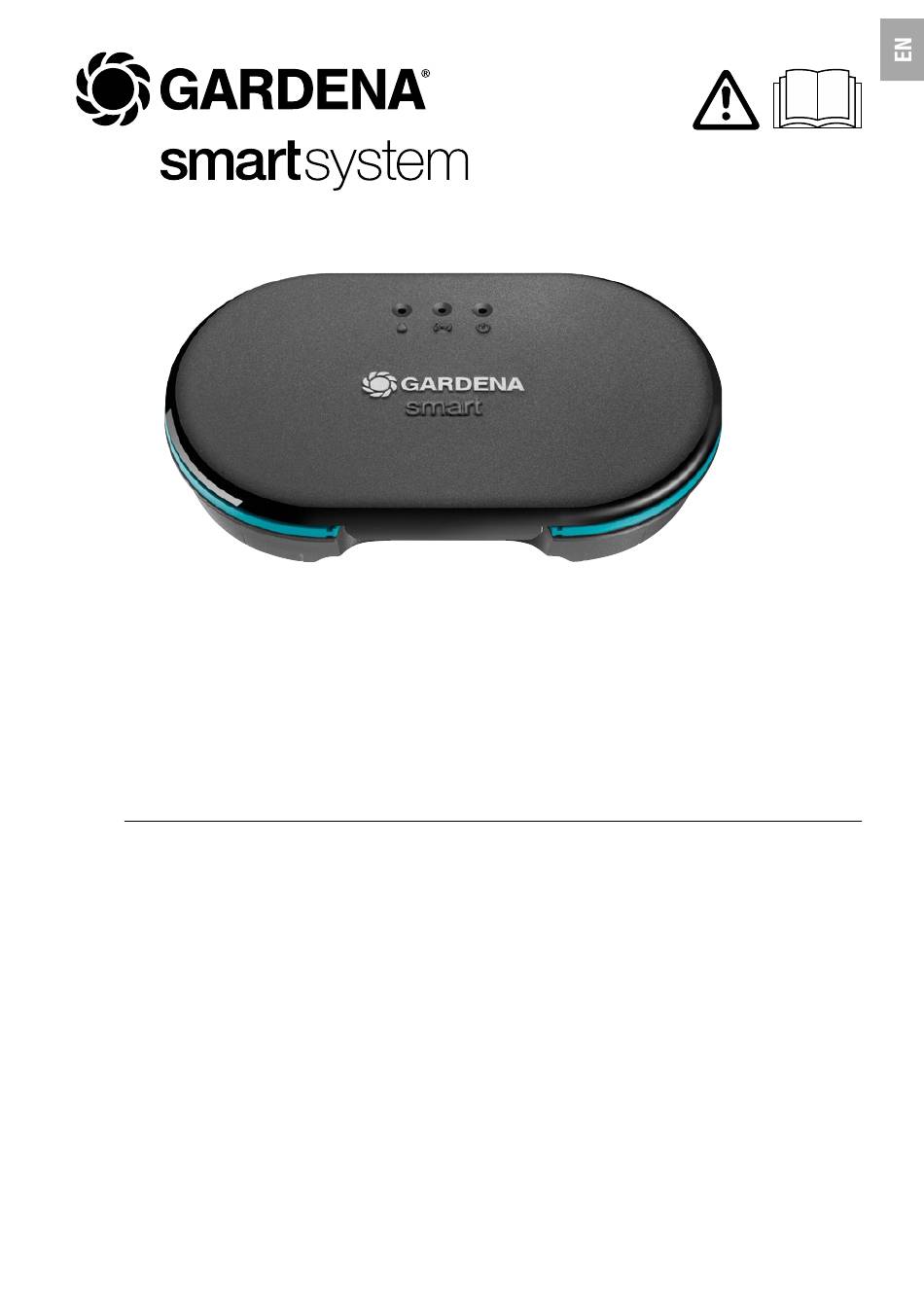

  • Page 1 Art. 19032 Operator’s manual smart Irrigation Control...

  • Page 2: Table Of Contents

    GARDENA smart Irrigation Control 24 V 1. SAFETY ..........
  • Page 3 Intended use: The GARDENA smart Irrigation Control is intended for private use in domestic and hobby gardens, to control sprinklers and watering systems. It can be used for automatic watering during holidays. It is only intended for use in a weatherproof and dust-proof location.

  • Page 4: Safety

    24 V (AC) valves. The electric power passive medical implants. consumption per channel must To decrease the risk of condi­ not exceed 400 mA (a GARDENA tions that can possibly injure or Irrigation Valve Art. 1278 requires kill, we recommend persons 150 mA).
  • Page 5 Up to 6 valves can be connected Protect the product from direct using this cable. The connection sunlight. cable can be connected so that it is watertight using the GARDENA Cable Clip Art. 1282. Be careful when touching the valves! Metal parts can heat up.

  • Page 6: Assembly

    2. ASSEMBLY To assemble the irrigation control on the wall: The both screws and dowels are in the skope of delivery. The distance between the holes is 120 mm. 1. Remove the cover...
  • Page 7 S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M RESET 5s 120 mm 2. Mark the positions of the holes. To do this, hold the Irrigation Control against the wall, bring it straight and mark 2 holes at a distance of 120 mm.

  • Page 8: Installation

    3. INSTALLATION To remove the cable strain relief: S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M RESET 5s v Loosen both screws and remove the cable strain relief...
  • Page 9 Connection overview: 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C Valve Box Art. 1255 Valve Box Art. 1255...
  • Page 10 To connect the valves to the Valve Box: Make sure that the terminal block has been correctly installed in the valve box. 1 2 3 4 5 6 C C C C (ART. 1278) (ART. 1278) (ART. 1278) v Label the valves (1 – 6) with the yellow stickers of the valve box. (Therefore the signal cable terminals VALVES 1 –...
  • Page 11 " 1 2 3 4 5 6 C C C C v Connect a cable of the valve V1 to the signal cable terminal 1 of the Valve Box. v Connect a cable of the valve V2 to the signal cable terminal 2 of the Valve Box.
  • Page 12 § 1 2 3 4 5 6 C C C C v Connect the other cable of the valve V1 to a signal cable terminal C of the Valve Box. (All 4 signal cable terminals C are connected to each other and equivalent). v Connect the other cable of the valve V2 to a signal cable terminal C of the Valve Box.
  • Page 13 To connect the Valve Box to the Irrigation Control: Tip: Press down the signal cable terminal with your index finger, screwdriver or ballpoint pen to connect the cables. With the GARDENA Connection Cable Art. 1280 you can connect up to 6 valves with the Irrigation Control. S/N: 00000000...
  • Page 14 S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M RESET 5s 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C v Connect one signal cable terminal C of the Valve Box to the blue signal signal cable terminal C of the Irrigation Control.
  • Page 15 To connect the master valve: Master Channel: The master channel M is activated, as soon as a valve is activated. You can connect a central valve upstream of the other valves to act as a master valve. & RESET 5s 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C v Connect both cables to the signal cable terminals M and C of the Irrigation...
  • Page 16 To connect the power supply: CAUTION! The irrigation control is damaged if the power supply unit is con­ nected to cable terminals other than the 24 V (AC) cable terminals! V Connect the power supply unit to the 24 V (AC) terminals only! CAUTION! Damaging of the irrigation control system by short circuit! V Check all wiring before you plug in the power supply.
  • Page 17 S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M 24 VAC POWER RESET 5s SUPPLY 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C 1. Connect both cables to the cable terminals 24 V (AC) of the Irrigation Control (polarity does not have to be considered).
  • Page 18 To close the cover: S/N: 00000000 24 VAC VALVES MASTER RESET 5s 1. Attach the cable strain relief and tighten the two screws 2. Push the cover onto the Irrigation Control.

  • Page 19: Operation

    4. OPERATION LED Display: LED Power: Green: Power On LED Connection display / Signal: Green flashing: While connecting Green: Signal strength high Yellow: Signal strength medium Red: Signal strength low Red flashing: Inclusion mode failed LED Active watering: Green: Active watering Red flashing: Valve error (see 7.
  • Page 20 Operation with the GARDENA smart system App: You can use the GARDENA smart system app to control all smart system products from anywhere at any time. You can download the free GARDENA smart system app from the Apple App Store or from the Google Play Store.
  • Page 21 Factory Reset: S/N: 00000000 24 VAC VALVES MASTER RESET 5s The smart Irrigation Control will be reset to the factory settings. v Push the Reset key for a short time. New connection. – or – v Push and hold down the Reset key for at least 5 seconds.

  • Page 22: Maintenance

    As long as the pipes coming from the Valve Box V3 outlets are drained via a drain valve (e. g. in the GARDENA pop-up sprinklers) which is not attached at a higher point than the irrigation valve, the irrigation valves can be left mounted in the valve box.
  • Page 23 Disposal: (in accordance with RL2012/19/EC) The product must not be disposed of to normal household waste. It must be disposed of in line with local environmental regulations. IMPORTANT! Dispose of the product through or via your municipal recycling collection centre.

  • Page 24: Troubleshooting

    7. TROUBLESHOOTING Problem Possible Cause Remedy LED Power Undervoltage v Check the power illuminates red connection. Wrong power supply. v Check the power supply. MCU Communication v Reset the irrigation control error. to factory settings. LED Active Can’t open valve because v Check the program.
  • Page 25 No wireless connection to v Check the wireless the Gateway. connection to the Gateway. NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA.

  • Page 26: Technical Data

    V (AC) Max. Output current EC Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (Art. 19032) is in compliance with directive 2014/53/EU. The full text of the EC declaration of conformity is available at the following internet address: http://www.gardena.com/int/support/safety­regulations...

  • Page 27: Accessories

    9. ACCESSORIES GARDENA smart Sensor Art. 19030 GARDENA Watering Valve 24V Art. 1278 GARDENA Valve Boxes Art. 1254 / 1255 GARDENA Connection Cable Art. 1280 GARDENA Cable Clips Art. 1282...

  • Page 28: Service / Warranty

    • Neither the purchaser nor a third party has attempted to open or repair the product. • Only Original GARDENA replacement parts and wear parts have been used for operation. • Presentation of the receipt.
  • Page 29 In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA approved service partner or where original GARDENA parts or parts author-...
  • Page 30 Hans-Lorenser-Straße 40 info @ gardena.lt Piso 4 France miroslav.jejina @ domel.rs D-89079 Ulm Santiago RM http : // www.gardena.com / fr Luxembourg Phone: (+ 56) 2 24142560 Produktfragen: N° AZUR : 0 810 00 78 23 Singapore Magasins Jules Neuberg (+ 49) 731 490 - 123 contacto @ jce.cl...
