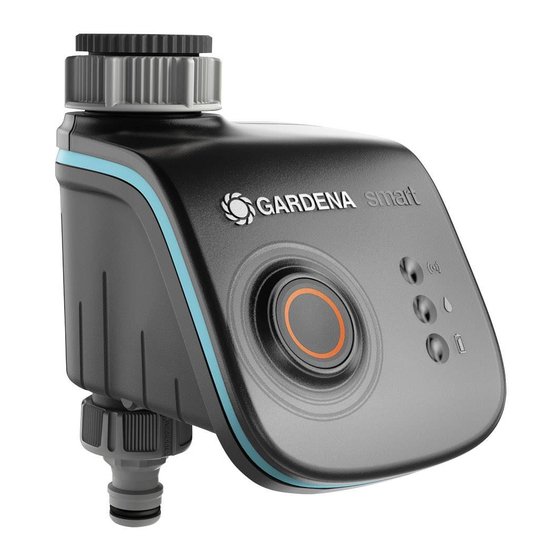

- Page 1 Art. 19031 EN Operator’s manual smart Water Control...
-
Page 2: Table Of Contents
GARDENA smart Water Control 1. SAFETY .......... - Page 3 Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine. Intended use: The GARDENA smart Water Control is intended for private use in domestic and hobby gardens, exclusively for outdoor use, to control sprinklers and watering systems. The smart Water Control can be used for automatic watering during holidays.
-
Page 4: Safety
1. SAFETY Important! Do not use damaged batteries. Read the operator’s manual Ensure that they are correctly dis- carefully before use and keep posed of (please see Chapter for future reference. 6. STORAGE “Disposal / Disposing of flat batteries”). Keep damaged batteries out of the DANGER! reach of children. - Page 5 In order to stop the Water Control the top to prevent water penetrating from failing because of a weak into the battery compartment. battery if you are away for a long The minimum water output to ensure time, the battery must be replaced that the Water Control functions when the battery display flashes correctly is 20 –...
-
Page 6: Function
2. FUNCTION Water Control: The Water Control is controlled automatically with the GARDENA smart system App. Sprinklers, a sprinkler system or a drip head watering system can be used for watering. The Water Control carries out watering fully automatically according to the set program and can therefore also be used during holidays. - Page 7 Controls / Display: ConnectionLED: Green flashing: While connecting Green for 10 sec: Signal strength high Yellow for 10 sec: Signal strength medium Red for 10 sec: Signal strength low LED Active watering: Green for 10 sec. LED Battery display: Green for 20 sec: Capacity >...
-
Page 8: Initial Operation
3. INITIAL OPERATION To insert batteries: The batteries are not included in the scope of delivery. The Water Control must only be operated with 3 x alkalimanganese (alkaline) batteries type LR6 (AA) (Mignon). The operating period is approx. 6 months. The operating period can vary depending on ambient temperature and transmission frequency. - Page 9 To connect the Water Control: (10) The Water Control is fitted with a sleeve nut for taps with (G 1") (33.3 mm) thread. The adaptor supplied allows the Water Control to be connected to taps with a (G 3/4") (26.5 mm) thread. 1.
- Page 10 To fit anti-theft device (optional): To secure your Water Control against theft, you can obtain the GARDENA Anti-theft device Art. 1815-00.791.00 from GARDENA Service. (11) (12) 1. Screw clamp (11) with screw (12) firmly to the back of the Water Control.
-
Page 11: Operation
4. OPERATION Operation with the GARDENA smart system App: You can use the GARDENA smart system app to control all smart system products from anywhere at any time. You can download the free GARDENA smart system app from the Apple App Store or from the Google Play Store. - Page 12 Factory Reset: The smart Water Control will be reset to the factory settings. (14) v Push the Reset key (14) for a short time. New connection. – or – v Push and hold down the Reset key (14) for at least 5 seconds. Cancels the existing connection and allows a new connection to be established, e.
- Page 13 If the Water Control is in “Sleep Mode”, press the Man.-button 2 times. The watering duration (0 to 59 min.) is according to the parameter of the GARDENA smart system App. If a program-controlled watering has been stopped manually, this program- controlled watering cannot start again.
-
Page 14: Maintenance
5. MAINTENANCE To clean the filter: (13) (13) The filter should be checked regularly and cleaned when necessary. 1. Unscrew sleeve nut of the Water Control by hand from the tap thread (do not use pliers). 2. If necessary unscrew the adaptor 3. -
Page 15: Storage
Dispose of the product through or via your municipal recycling collection centre. Disposing of flat batteries: Please return flat batteries to a GARDENA dealer or dispose of them properly at your nearest recycling centre. Only dispose of batteries when they are flat. -
Page 16: Troubleshooting
Minimum quantity of water v Connect more drip heads. not close drawn is less than 20 l/h. NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA. -
Page 17: Technical Data
Operating time of the batteries batteries (min. 2000 mAh) EC Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (smart Water Control Art. 19031) is in compliance with directive 2014/53/EU. The full text of the EC declaration of conformity is available at the following internet address: http://www.gardena.com/int/support/safetyregulations... -
Page 18: Accessories
9. ACCESSORIES GARDENA Antitheft device Art. 181500.791.00 (from GARDENA Service) -
Page 19: Service / Warranty
In the event of a warranty claim, please send the defective product together with a copy of the purchase receipt and a description of the defect, suffi- ciently stamped, to the GARDENA service address on the back page. Faults which occur as a result of incorrectly installed or leaking batteries are not covered by the guarantee. - Page 20 In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA approved service partner or where original GARDENA parts or parts author-...
- Page 21 France # 8355 comuna Las Condes UAB Husqvarna Lietuva Autoput za Novi Sad bb © GARDENA © GARDENA http : // www.gardena.com / fr Ateities pl. 77C 11273 Belgrade Phone: (+ 56) 2 202 4417 Manufacturing GmbH Manufacturing GmbH Dalton @ maga.cl N°...
