Gardena 19032 Operator's Manual

Smart irrigation control
Hide thumbs Also See for 19032:
Table of Contents

Advertisement

Quick Links

Art. 19032
EN
Operator's manual
smart Irrigation Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 19032 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gardena 19032

Summary of Contents for Gardena 19032

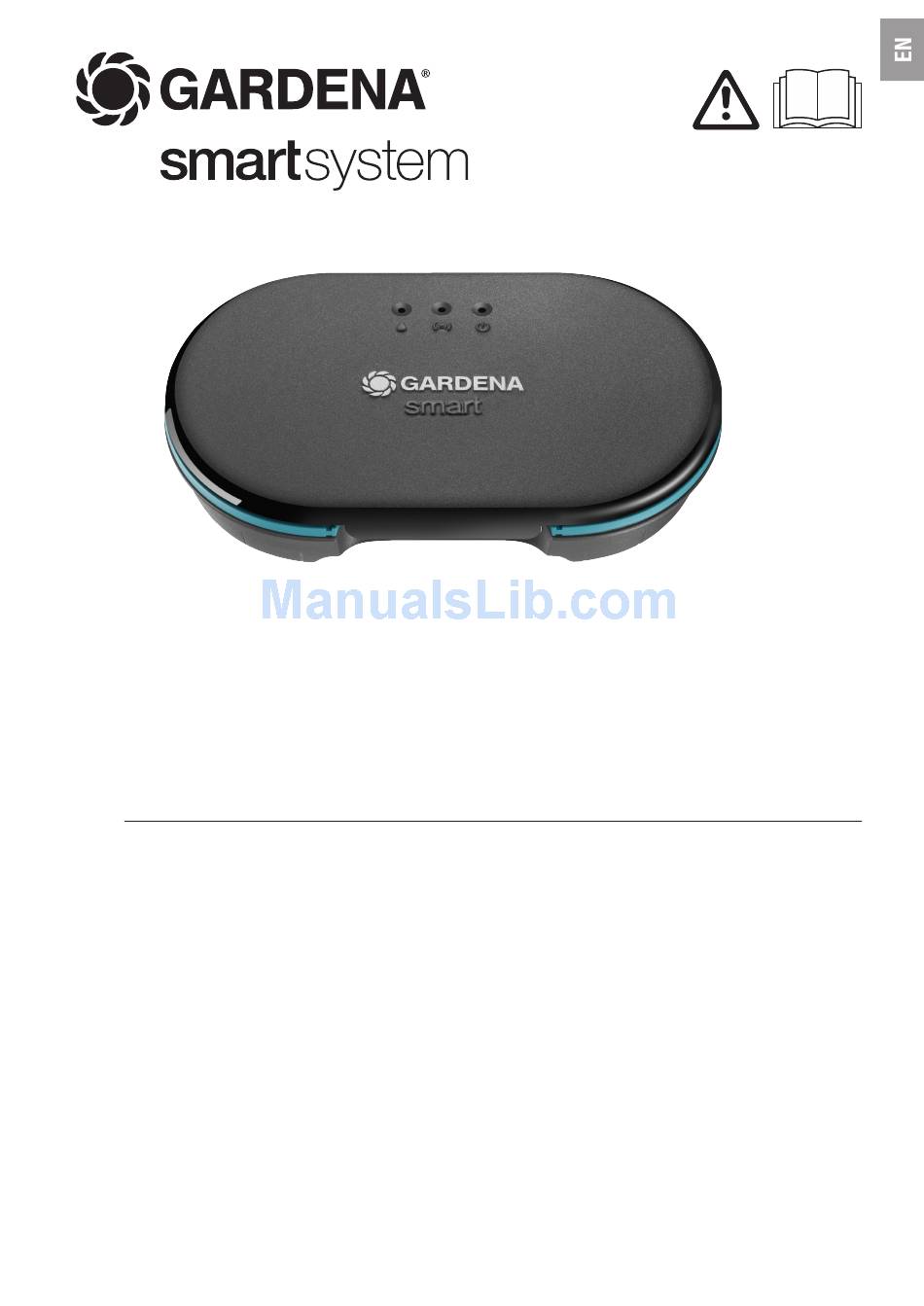

  • Page 1 Art. 19032 Operator’s manual smart Irrigation Control...

  • Page 2: Table Of Contents

    GARDENA smart Irrigation Control 24 V 1. SAFETY ..........

  • Page 3: Intended Use

    Intended use: The GARDENA smart Irrigation Control is intended for private use in domestic and hobby gardens, exclusively for outdoor use, to control sprinklers and watering systems. It can be used for automatic watering during holidays.

  • Page 4: Safety

    24 V (AC) valves. The electric power consumption per channel must not Electrical safety exceed 500 mA (a GARDENA Irrigation Valve Art. 1278 requires 150 mA). DANGER! Cardiac arrest! This product makes an electro­ magnetic field while it operates.
  • Page 5 Be careful when touching Protect the product from direct the valves! sunlight. Metal parts can heat up.

  • Page 6: Assembly

    2. ASSEMBLY To assemble the irrigation control on the wall: The both screws and dowels are in the skope of delivery. The distance between the holes is 120 mm. 1. Remove the cover...
  • Page 7 S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M RESET 5s 120 mm 2. Mark the positions of the holes. To do this, hold the Irrigation Control against the wall, bring it straight and mark 2 holes at a distance of 120 mm.

  • Page 8: Installation

    3. INSTALLATION To remove the cable strain relief: S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M RESET 5s v Loosen both screws and remove the cable strain relief...
  • Page 9 Connection overview: S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M PUMP CONTROL 24 VAC POWER RESET 5s SUPPLY 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C (ART.
  • Page 10 To connect the valves to the Valve Box: Make sure that the terminal block has been correctly installed in the valve box. 1 2 3 4 5 6 C C C C (ART. 1278) (ART. 1278) (ART. 1278) v Label the valves (1 – 6) with the yellow stickers of the valve box. (Therefore the cable terminals VALVES 1 –...
  • Page 11 " 1 2 3 4 5 6 C C C C v Connect a cable of the valve V1 to the cable terminal 1 of the Valve Box. v Connect a cable of the valve V2 to the cable terminal 2 of the Valve Box. v Connect a cable of the valve V3 to the cable terminal 3 of the Valve Box.
  • Page 12 § 1 2 3 4 5 6 C C C C v Connect the other cable of the valve V1 to a cable terminal C of the Valve Box. (All 4 cable terminals C are connected to each other and equivalent). v Connect the other cable of the valve V2 to a cable terminal C of the Valve Box.
  • Page 13 To connect the Valve Box to the Irrigation Control: Tip: Press down the cable terminal with your index finger, screwdriver or ballpoint pen to connect the cables. With the GARDENA Connection Cable Art. 1280 you can connect up to 6 valves with the Irrigation Control. S/N: 00000000...
  • Page 14 S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M RESET 5s 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C v Connect one cable terminal C of the Valve Box to the blue cable terminal C of the Irrigation Control.
  • Page 15 For example, you can activate a garden pump via the master channel so that the pump supplies the irrigation system whenever a valve is activated. For example, the pump can be operated using the GARDENA Pump Control Art. 1273 that is connected to the master channel.
  • Page 16 To connect the power supply: CAUTION! The irrigation control is damaged if the power supply unit is con­ nected to cable terminals other than the 24 V (AC) cable terminals! V Connect the power supply unit to the 24 V (AC) terminals only! CAUTION! Damaging of the irrigation control system by short circuit! V Check all wiring before you plug in the power supply.
  • Page 17 S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M 24 VAC POWER RESET 5s SUPPLY 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C 1. Connect both cables to the cable terminals 24 V (AC) of the Irrigation Control (polarity does not have to be considered).
  • Page 18 To close the cover: S/N: 00000000 24 VAC VALVES MASTER RESET 5s 1. Attach the cable strain relief and tighten the two screws 2. Push the cover onto the Irrigation Control.

  • Page 19: Operation

    4. OPERATION LED Display: LED Power: Green: Power On LED Connection display / Signal: Green flashing: While connecting Green: Signal strength high Yellow: Signal strength medium Red: Overcurrent/undercurrent Red flashing: Valve error LED Active watering: Green...
  • Page 20 Operation with the GARDENA smart system App: You can use the GARDENA smart system app to control all smart system products from anywhere at any time. You can download the free GARDENA smart system app from the Apple App Store or from the Google Play Store.
  • Page 21 Factory Reset: S/N: 00000000 24 VAC VALVES MASTER RESET 5s The smart Irrigation Control will be reset to the factory settings. v Push the Reset key for a short time. New connection. – or – v Push and hold down the Reset key for at least 5 seconds.

  • Page 22: Maintenance

    5. MAINTENANCE To clean the Irrigation Control: Do not use caustic / abrasive cleaning agents. v Clean the Irrigation Control with a damp cloth (do not use solvent). 6. STORAGE To put into storage: The product must be stored away from children. v Do not store the Irrigation Control outdoors if not in use.

  • Page 23: Troubleshooting

    No wireless connection to v Check the wireless the Gateway. connection to the Gateway. NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA.

  • Page 24: Technical Data

    Max. Output current EC Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (smart Irrigation Control Art. 19032) is in compliance with directive 2014/53/EU. The full text of the EC declaration of conformity is available at the following internet address: http://www.gardena.com/int/support/safety­regulations...

  • Page 25: Accessories

    9. ACCESSORIES GARDENA Pump Control Art. 1273 GARDENA Watering Valve 24V Art. 1278 GARDENA Valve Boxes Art. 1254 / 1255 GARDENA Connection Cable Art. 1280 GARDENA Cable Clips Art. 1282...

  • Page 26: Service / Warranty

    In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA approved service partner or where original GARDENA parts or parts author-...
  • Page 27 France # 8355 comuna Las Condes Gardena Division Autoput za Novi Sad bb © GARDENA © GARDENA http : // www.gardena.com / fr Phone: (+ 56) 2 202 4417 Ateities pl. 77C 11273 Belgrade Manufacturing GmbH Manufacturing GmbH Dalton @ maga.cl N°...
