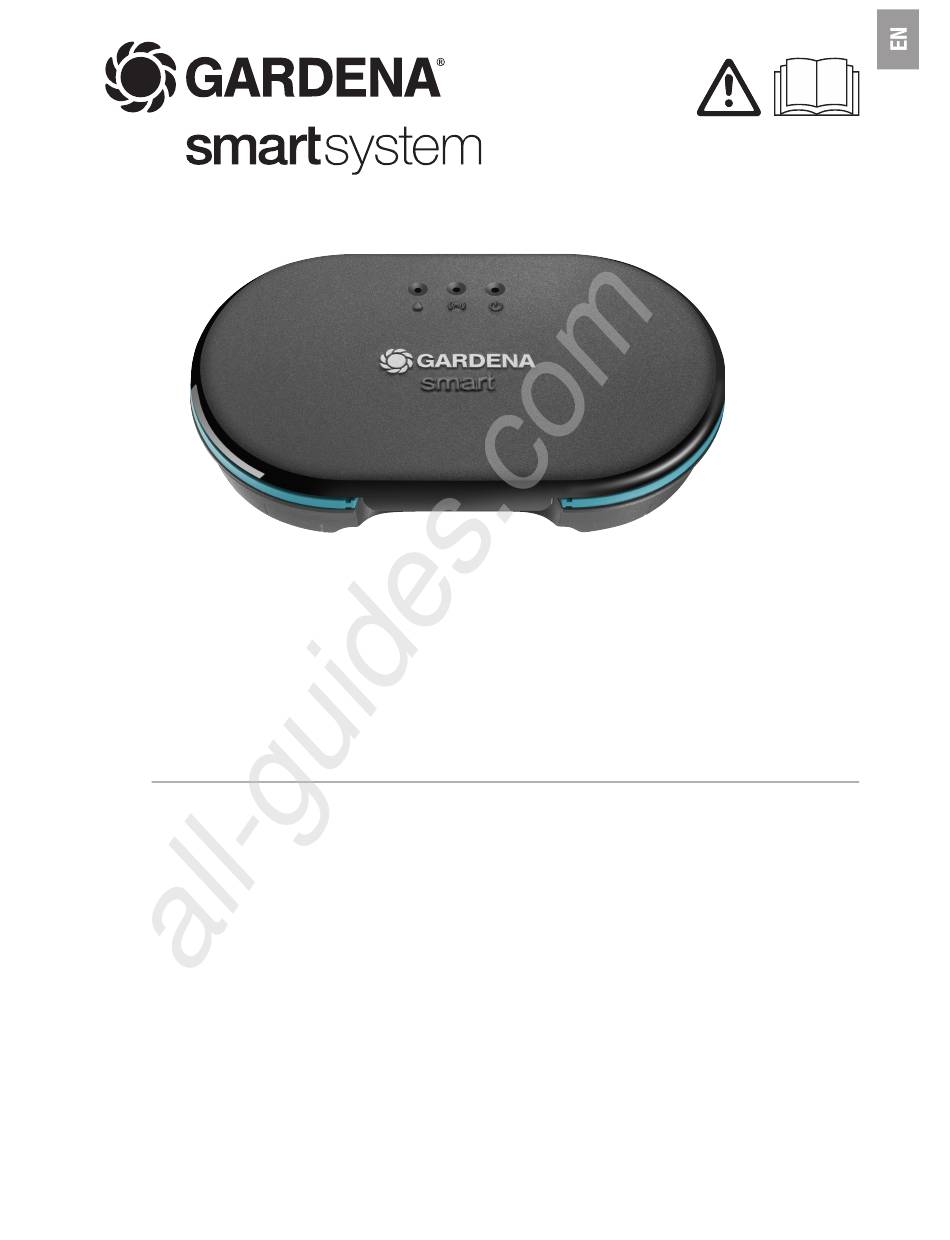

Art. 19032
EN
Operator's manual
smart Irrigation Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the smartsystem 19032 and is the answer not in the manual?

Questions and answers

Related Manuals for Gardena smartsystem 19032

Summary of Contents for Gardena smartsystem 19032

  • Page 1 All manuals and user guides at all-guides.com Art. 19032 Operator’s manual smart Irrigation Control...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com GARDENA smart Irrigation Control 24 V 1. SAFETY ..........
  • Page 3 Intended use: The GARDENA smart Irrigation Control is intended for private use in domestic and hobby gardens, exclusively for outdoor use, to control sprinklers and watering systems. It can be used for automatic watering during holidays.

  • Page 4: Safety

    24 V (AC) valves. The electric power consumption per channel must not Electrical safety exceed 500 mA (a GARDENA Irrigation Valve Art. 1278 requires 150 mA). DANGER! Cardiac arrest! This product makes an electro­ magnetic field while it operates.
  • Page 5 All manuals and user guides at all-guides.com Protect the product from direct Be careful when touching sunlight. the valves! Metal parts can heat up.

  • Page 6: Assembly

    All manuals and user guides at all-guides.com 2. ASSEMBLY To assemble the irrigation control on the wall: The both screws and dowels are in the skope of delivery. The distance between the holes is 120 mm. 1. Remove the cover...
  • Page 7 All manuals and user guides at all-guides.com S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M RESET 5s 120 mm 2. Mark the positions of the holes. To do this, hold the Irrigation Control against the wall, bring it straight and mark 2 holes at a distance of 120 mm.

  • Page 8: Installation

    All manuals and user guides at all-guides.com 3. INSTALLATION To remove the cable strain relief: S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M RESET 5s v Loosen both screws and remove the cable strain relief...
  • Page 9 All manuals and user guides at all-guides.com Connection overview: S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M PUMP CONTROL 24 VAC POWER RESET 5s SUPPLY 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C (ART.
  • Page 10 All manuals and user guides at all-guides.com To connect the valves to the Valve Box: Make sure that the terminal block has been correctly installed in the valve box. 1 2 3 4 5 6 C C C C (ART. 1278) (ART.
  • Page 11 All manuals and user guides at all-guides.com " 1 2 3 4 5 6 C C C C v Connect a cable of the valve V1 to the cable terminal 1 of the Valve Box. v Connect a cable of the valve V2 to the cable terminal 2 of the Valve Box. v Connect a cable of the valve V3 to the cable terminal 3 of the Valve Box.
  • Page 12 All manuals and user guides at all-guides.com § 1 2 3 4 5 6 C C C C v Connect the other cable of the valve V1 to a cable terminal C of the Valve Box. (All 4 cable terminals C are connected to each other and equivalent). v Connect the other cable of the valve V2 to a cable terminal C of the Valve Box.
  • Page 13 To connect the Valve Box to the Irrigation Control: Tip: Press down the cable terminal with your index finger, screwdriver or ballpoint pen to connect the cables. With the GARDENA Connection Cable Art. 1280 you can connect up to 6 valves with the Irrigation Control. S/N: 00000000...
  • Page 14 All manuals and user guides at all-guides.com S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M RESET 5s 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C v Connect one cable terminal C of the Valve Box to the blue cable terminal C of the Irrigation Control.
  • Page 15 For example, you can activate a garden pump via the master channel so that the pump supplies the irrigation system whenever a valve is activated. For example, the pump can be operated using the GARDENA Pump Control Art. 1273 that is connected to the master channel.
  • Page 16 All manuals and user guides at all-guides.com To connect the power supply: CAUTION! The irrigation control is damaged if the power supply unit is con­ nected to cable terminals other than the 24 V (AC) cable terminals! V Connect the power supply unit to the 24 V (AC) terminals only! CAUTION! Damaging of the irrigation control system by short circuit! V Check all wiring before you plug in the power supply.
  • Page 17 All manuals and user guides at all-guides.com S/N: 00000000 24 VAC VALVES MASTER 5 6 C C M 24 VAC POWER RESET 5s SUPPLY 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C 1.
  • Page 18 All manuals and user guides at all-guides.com To close the cover: S/N: 00000000 24 VAC VALVES MASTER RESET 5s 1. Attach the cable strain relief and tighten the two screws 2. Push the cover onto the Irrigation Control.

  • Page 19: Operation

    All manuals and user guides at all-guides.com 4. OPERATION LED Display: LED Power: Green: Power On LED Connection display / Signal: Green flashing: While connecting Green: Signal strength high Yellow: Signal strength medium Red: Overcurrent/undercurrent Red flashing: Valve error LED Active watering: Green...
  • Page 20 All manuals and user guides at all-guides.com Operation with the GARDENA smart system App: You can use the GARDENA smart system app to control all smart system products from anywhere at any time. You can download the free GARDENA smart system app from the Apple App Store or from the Google Play Store.
  • Page 21 All manuals and user guides at all-guides.com Factory Reset: S/N: 00000000 24 VAC VALVES MASTER RESET 5s The smart Irrigation Control will be reset to the factory settings. v Push the Reset key for a short time. New connection. – or – v Push and hold down the Reset key for at least 5 seconds.

  • Page 22: Maintenance

    All manuals and user guides at all-guides.com 5. MAINTENANCE To clean the Irrigation Control: Do not use caustic / abrasive cleaning agents. v Clean the Irrigation Control with a damp cloth (do not use solvent). 6. STORAGE To put into storage: The product must be stored away from children.

  • Page 23: Troubleshooting

    No wireless connection to v Check the wireless the Gateway. connection to the Gateway. NOTE: For any other malfunctions please contact the GARDENA service department. Repairs must only be done by GARDENA service departments or specialist dealers approved by GARDENA.

  • Page 24: Technical Data

    V (AC) Max. Output current EC Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (smart Irrigation Control Art. 19032) is in compliance with directive 2014/53/EU. The full text of the EC declaration of conformity is available at the following internet address: http://www.gardena.com/int/support/safety­regulations...

  • Page 25: Accessories

    All manuals and user guides at all-guides.com 9. ACCESSORIES GARDENA Pump Control Art. 1273 GARDENA Watering Valve 24V Art. 1278 GARDENA Valve Boxes Art. 1254 / 1255 GARDENA Connection Cable Art. 1280 GARDENA Cable Clips Art. 1282...

  • Page 26: Service / Warranty

    In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA approved service partner or where original GARDENA parts or parts author-...
  • Page 27 Gardena Division Autoput za Novi Sad bb © GARDENA © GARDENA Phone: (+ 56) 2 202 4417 http : // www.gardena.com / fr 11273 Belgrade Manufacturing GmbH Ateities pl. 77C Manufacturing GmbH N° AZUR : 0 810 00 78 23 D-89070 Ulm Dalton @ maga.cl...
