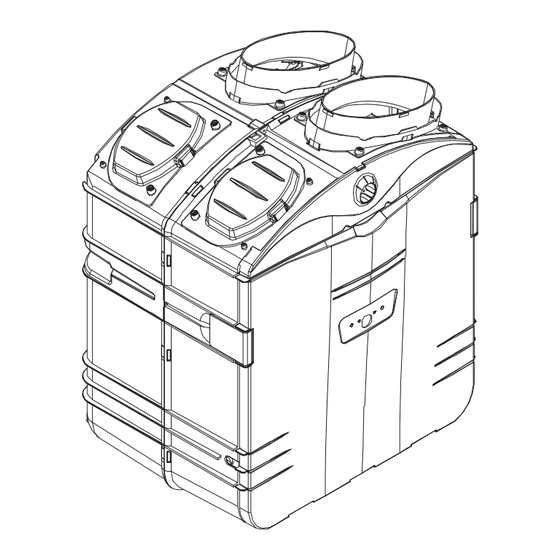

NuTone GSEH3K User Manual

NuTone GSEH3K User Manual

Broan-nutone gseh3k air purifiers: user guide
Hide thumbs Also See for GSEH3K:

Advertisement

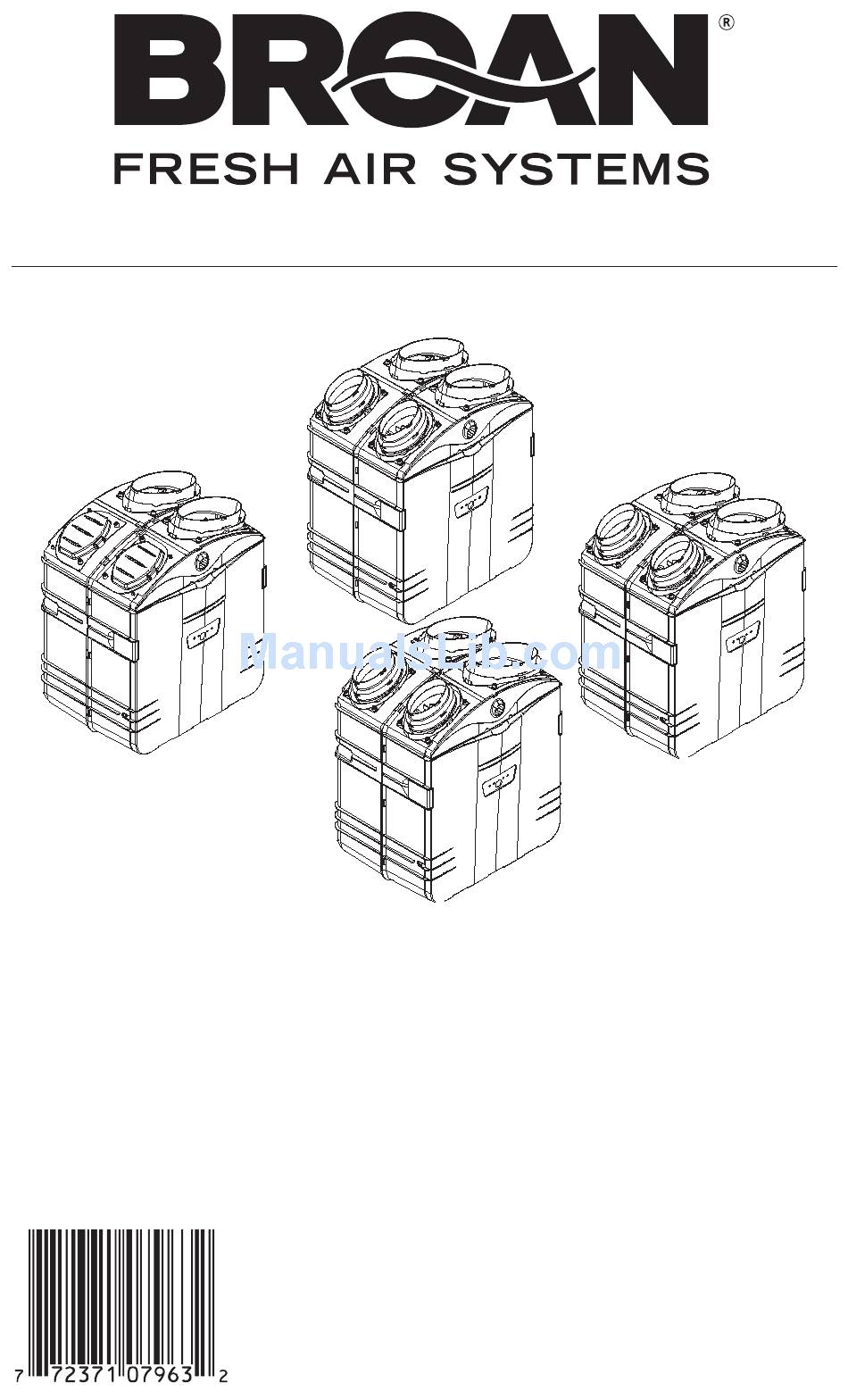

HEPA
Filtration*
GSFH1K
VB0061
*Patents pending
INSTALLER: LEAVE THIS MANUAL WITH CONSUMER.
USER MANUAL
HEPA Filtration,
Fresh Air and
Energy Recovery
Ventilation*
GSEH3K
RESIDENTIAL USE ONLY.
REGISTER YOUR PRODUCT ON LINE AT:
For additional information - visit www.Broan.com
HEPA Filtration and
Fresh Air
Ventilation*
GSVH1K
www.broan.com/register
Broan-NuTone LLC
HEPA Filtration,
Fresh Air and
Heat Recovery
Ventilation*
GSHH3K
05690 rev. 5
99043224

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSEH3K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NuTone GSEH3K

  • Page 1 *Patents pending INSTALLER: LEAVE THIS MANUAL WITH CONSUMER. USER MANUAL HEPA Filtration, Fresh Air and Energy Recovery Ventilation* GSEH3K RESIDENTIAL USE ONLY. REGISTER YOUR PRODUCT ON LINE AT: www.broan.com/register For additional information - visit www.Broan.com Broan-NuTone LLC HEPA Filtration and...
  • Page 2: About This Manual

    To stop the air exchange with a GSVH1K, set its wall controller to OFF. To stop the air exchange with a GSHH3K or a GSEH3K, set its wall controller to RECIRCULATION (the unit will continue to filter the inside air).
  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOUT THESE UNITS ONTROLS 2.1 Main Switch...5 2.2 Operating ACCGSC1 Controller ...5 2.3 Operating 40425 Controller ...6-8 AINTENANCE 3.1 Semi-annual Maintenance ...9-11 3.2 Annual Maintenance ...11 3.3 Optional Alpine/pine Filter...12 ROUBLESHOOTING ARRANTY ...4 ...5-8 ...9-12 ...13 ...14 - 3 -...
  • Page 4: About These Units

    2. Intended for residential installation in accordance with the requirements of NFPA 90B. 3. For GSVH1K, GSHH3K and GSEH3K units only: Be sure to duct air outside. Do not intake / exhaust air into spaces within walls or ceiling or into attics, crawl spaces, or garage.
  • Page 5: Controls

    2. CONTROLS 2.1 M WITCH All units are equipped with a 3-position main switch, located on the front panel. The unit is intented for use with a wall controller (provided, see below). The main switch is to remain in either the “OFF” or “Normal/Remote” modes ONLY. The “Normal/Remote” mode allows the homeowner to operate the product from the wall controller (supplied with the unit), typically mounted near a thermostat or other convenient location.
  • Page 6: Operating 40425 Controller

    40425 C PERATING The included wall control 40425 is intented for GSHH3K and GSEH3K units only. The wall control is in OFF mode when power is applied for the first time. The mode does not change following a power failure.
  • Page 7: Off Mode

    2. CONTROLS (CONT’D) 2.3.2 U 40425 C SING ECIRCULATION The unit recirculates air. However, every hour, the unit exchanges air for 6 minutes so that it can obtain a reading of the outdoor temperature*. UTOMATIC Off in Air recirculation Auto mode The unit operates on a 60-minute cycle.
  • Page 8: C Ontrols

    2. CONTROLS (CONT’D) 2.3.3 40425 W See the configuration table below for the list of configuration parameters. Press the Menu button for 3 seconds to enter or exit the configuration menu. NOTE: The wall control automatically saves any changes and exits the configuration menu if no button is pressed within the next 60 seconds.
  • Page 9: Semi-Annual Maintenance

    Slide out the air diffuser (model GSVH1K), the heat recovery core (model GSHH3K only), the energy recovery core (model GSEH3K only) and the filter cartridge from the unit. NOTES: 1. On model GSVH1K only, never grab the white shaft (item 2) to pull out the air diffuser.
  • Page 10 3. MAINTENANCE (CONT’D) 3.1 S ANNUAL Using your thumbs, push on the prefilter side to disengage it from the filter cartridge. Then, slide it out of the filter cartridge and discard it. Install the new prefilter by reversing this operation. VD0092 1) Filter cartridge 2) Prefilter...
  • Page 11: Annual Maintenance

    (CONT’D) 3.1 S ANNUAL For HEPA Filtration, Fresh Air and Energy Recovery model GSEH3K only The GSEH3K energy recovery core cannot be washed with water. Slide out the two core filters (item 1) from the energy recovery core and wash them under hot water with mild soap.
  • Page 12: Optional Alpine/Pine Filter

    3. MAINTENANCE (CONT’D) 3.3 O PTIONAL LPINE PINE ILTER During pollen season, or as needed, remove the assembled hood from its backplate by removing its 2 retaining screws. VD0124 screw Then, slide out the optional Alpine/pine filter and clean it under water. Let dry before reinstalling it on the assembled hood.
  • Page 13: Troubleshooting

    If the unit seems not working properly, call your installer or the nearest approved Service Center. You can also reach our Customer Service Departments or Technical Support listed below. WARNING Broan-NuTone LLC • Customer Service Department: Telephone: 1-800-558-1711 Fax: 1-800-356-5862 •...
  • Page 14: Warranty

    This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties. In order to qualify for a warranty claim, the owner of a Broan-NuTone WHOLE-HOUSE AIR FILTRATION SYSTEM must have the model and serial number along with a proof of the original purchase date.
