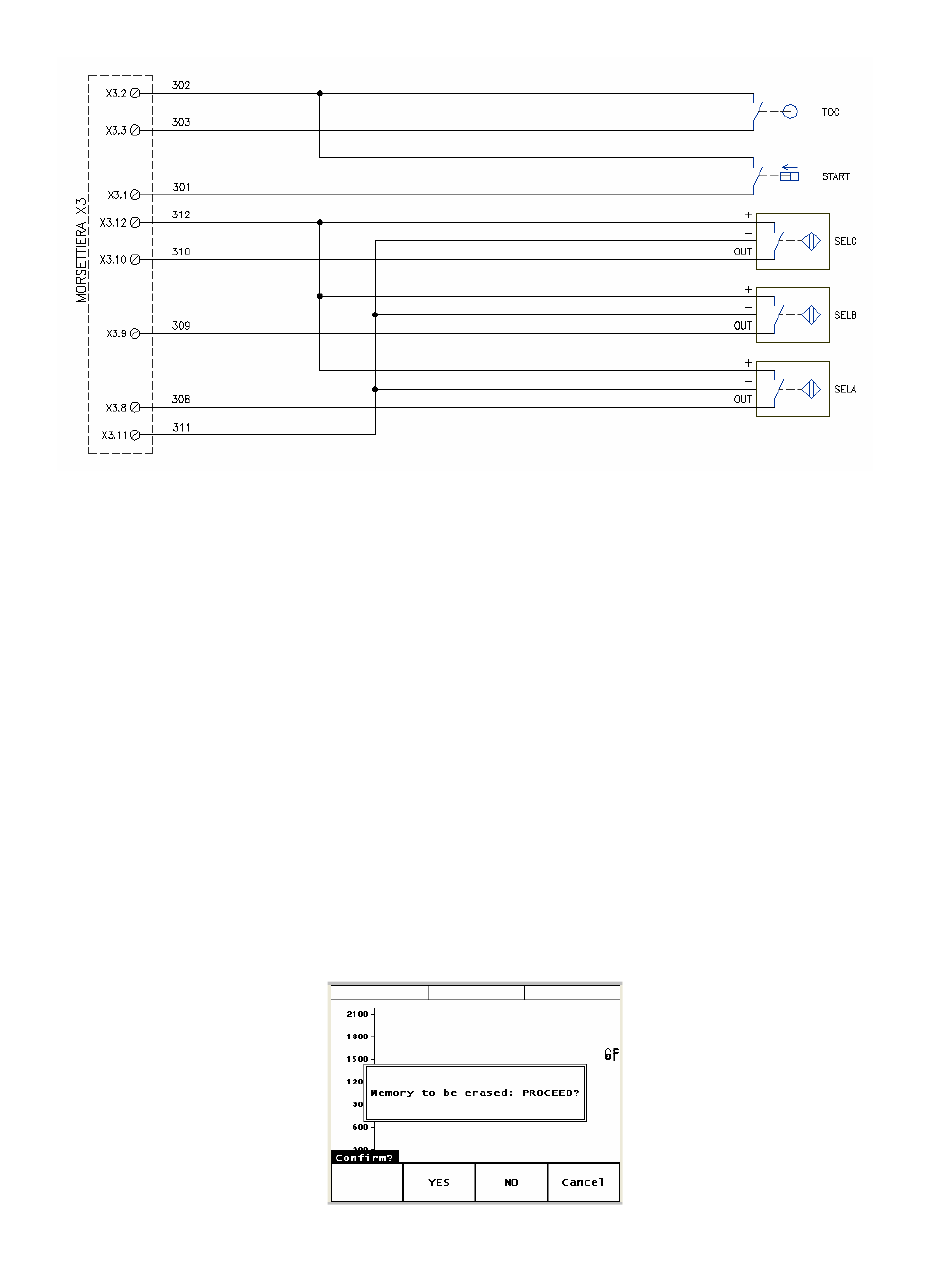

Example of wiring of three sensors (selection of 5 to 8 works):
1.5.2 Selection through serial command
The CSQ-Visual supports serial communication through which it is possible to select a work
remotely. Using serial communication, it is possible to select up to 250 works. To be able to
operate it is necessary to enable slow serial communication and set the Automatic selection code.
For the use of serial communication, see the relative manual.

1.6 Configuring the use of the phases

It is sometimes necessary to perform different machining process on the same piece, for instance,
different gears are fitted onto a drive shaft one after the other: hence the need to analyse all the
different machining phases.
The CSQ-Visual is able to manage up to four phases for each single process. The choice of the
phase may take place automatically, in succession or through the digital inputs of the instrument.
For every work process is it possible to decide whether to exclude one or more phases.
To enable a function for several phases, it is necessary to indicate the maximum number of phases
supported. To do this, select the
menu and change the Number of phases value. As well as indicating the
PHASES CHANNELS PHASES CHANNELS PHASES CHANNELS PHASES CHANNELS
number of phases, it is necessary to indicate the way to behave, changing the Automatic selection
code.
If the maximum number of phases is changed, it will be necessary to cancel all the works created
previously:
TOOLS > ADVANCED OPTIONS > MACHINE TYPE TOOLS > ADVANCED OPT
TOOLS > ADVANCED OPT TOOLS > ADVANCED OPT
Figure 2
IONS > MACHINE TYPE > WORKS
IONS > MACHINE TYPE IONS > MACHINE TYPE
> WORKS
> WORKS > WORKS
