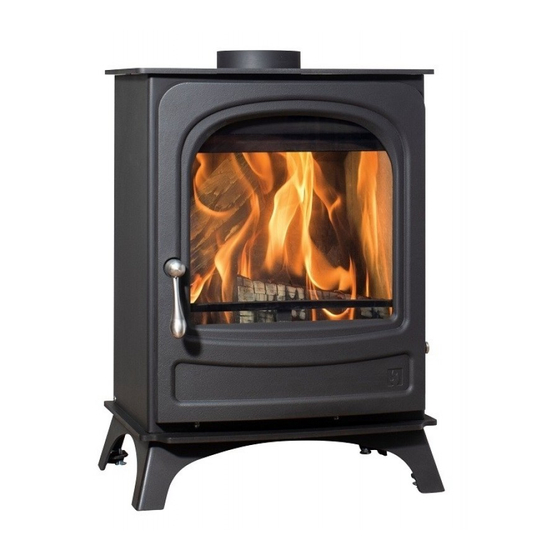

Holborn Gas
Balanced Flue
GB & IE
For use in
(United Kingdom and Ireland)
PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE
BS EN 613: 2001 + A1: 2003 +C1:2008
BK751
SPECIFIC Rev 01
ISSUE DATE : 02/06/2021
20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Holborn Gas and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arada Holborn Gas

Summary of Contents for Arada Holborn Gas

  • Page 1 Holborn Gas Balanced Flue GB & IE For use in (United Kingdom and Ireland) PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE BS EN 613: 2001 + A1: 2003 +C1:2008 BK751 SPECIFIC Rev 01 ISSUE DATE : 02/06/2021...
  • Page 2 This appliance has been tested and certified for other counties (see technical data). However to install appliance in other countries, modification of the appliance and its method of installation may be necessary in order to use the appliance safely and correctly. The manual for the local language must be obtained. Contact Arada for further information. Page 2...

  • Page 3: Table Of Contents

    Holborn Gas Installation & Service Contents Installation & Service 1 Appliance Information 1.1 Specification……………………………………………………….. 1.2 Dimensions…………………………………………………………. 1.3 Technical Information…………………………………..……….. 1.4 General Notes…………………………………………………….. 1.5 Flue System……………………………………………………….. 2 Installation 2.1 Gas Connection……………………………………………………. 2.2 Ventilation………………………………………………………..2.3 Appliance Fireplace Installation….……………………………... 2.4 Clearance Requirements………………………………………….

  • Page 4: Installation & Service

    Holborn GAS — INSTALLATION & SERVICE SECTION 1 : APPLIANCE INFORMATION 1.1 Specifications HOLBORN BF—NATURAL GAS—NG G25/G25.3 G20/G25 I2L, I2EK I2H, I2E I2H, I2E I2(43.46-45.3 I2ELL Gas Type MJ/m3 (0C)) Supply Pressure mbar 20/25 Nominal Heat Input Gross (Hs) 5/4.3 Nominal Heat Input Gross (Hi) 4.5/3.9...

  • Page 5: Dimensions

    Holborn GAS—INSTALLATION & SERVICE 1.2. Dimensions BK 751 Page 5...

  • Page 6: Technical Information

    Holborn GAS — INSTALLATION & SERVICE 1.3. Technical Information Approved Countries of Use : Country / Natural / LPG AT -Austria I , G20 at 20 mbar I ,G31 at 50 mbar; I ,G30/G31 at 50 mbar 3P(50) 3B/P(50) BE -Belgium I , G20/G25 at 20/25 mbar I ,G31/G31 at 28/37 mbar;...

  • Page 7: General Notes

    If this appliance is extinguished, on purpose or other, no attempt to relight should be made within 3 minutes. 1.5. Flue Systems Arada products are approved for use with the following Flue Systems (inc. types C11, C31 and C91): Metaloterm US.

  • Page 8: Gas Connection

    Holborn GAS — INSTALLATION & SERVICE 2. Installation Instructions Before commencing installation, confirm that the details on the appliance data plate correspond to the local distribution conditions, gas type and pressure to which the appliance is to be installed. Ensure that gas supply and supply pipe is capable of delivering the required volume and pressure of gas and is in accordance with the rules in force.

  • Page 9: Flue Connections- General Notes

    Arada. The Arada specified flue parts have been approved with the appliance. If the appliance is installed on a non-Arada approved flue system, then Arada cannot guarantee or accept responsibility for the proper and safe working of this appliance.

  • Page 10: Terminal Location

    Holborn GAS — INSTALLATION & SERVICE 2.5.4. Terminal Location Dimension Terminal Position Distance (mm) Directly below an opening, air brick, opening window etc. Above an opening, air brick, opening window etc. Adjacent to an opening, air brick, opening window etc.

  • Page 11: Horizontal Wall Vent Termination-Type C11

    Holborn GAS — INSTALLATION & SERVICE 2.5.5 Horizontal Wall Vent Termination type C11 Flue sizing: HOLBORN : Ø100/150 Connector on appliance. Ø100/150 Maybe used throughout, alternatively, Ø130/200 Expander may be used, so that Ø130/200 flue can be used thereafter. Flue Terminal: Ø130/200 Part No.

  • Page 12: Vertical Roof Vent Termination-Type C31

    Holborn GAS — INSTALLATION & SERVICE 2.5.6 Vertical Roof Vent Termination C31 Flue sizing: Ø100/150 Connector on Appliance. Ø100/150 Maybe used Throughout, Alternatively, Ø130/200 Expander may be used, so that Ø130/200 flue can be used thereafter. Flue Terminal: Ø130/200 Part No. USDVC 130 Ø100/150 Part No.

  • Page 13: Flue System Components

    Holborn GAS — INSTALLATION & SERVICE 2.5.7. Flue System Components BK 751 Page 13...
  • Page 14 Holborn GAS — INSTALLATION & SERVICE Page 14 BK 751...
  • Page 15 Holborn GAS — INSTALLATION & SERVICE BK 751 Page 15...
  • Page 16 Holborn GAS — INSTALLATION & SERVICE Page 16 BK 751...
  • Page 17 Holborn GAS — INSTALLATION & SERVICE BK 751 Page 17...

  • Page 18: Example-Vertical Roof Termination

    Holborn GAS — INSTALLATION & SERVICE 2.5.8. Flue Examples : Vertical Roof Termination Page 18 BK 751...

  • Page 19: Example-Vertical Roof Termination On An Angle

    Holborn GAS — INSTALLATION & SERVICE 2.5.9. Flue Examples : Vertical Roof Termination On An Angle BK 751 Page 19...

  • Page 20: Example-Vertical Roof Termination With Bends

    Holborn GAS — INSTALLATION & SERVICE 2.5.10. Flue Examples : Vertical Roof Termination With Bends Page 20 BK 751...

  • Page 21: Example-Existing Chimney (Renovation Kit)

    Holborn GAS — INSTALLATION & SERVICE 2.5.11. Flue Examples : Existing Chimney (Renovation Kit) BK 751 Page 21...
  • Page 22 Holborn GAS — INSTALLATION & SERVICE 2.5.12. Flue Examples : Existing Chimney With Bend (Renovation Page 22 BK 751...

  • Page 23: Example-Existing Chimney With Bends (Renovation Kit) 22 2.5.13. Example-Horizonal Vent With Snorkel-Type C91

    Holborn GAS — INSTALLATION & SERVICE 2.5.13. Flue Examples : Horizontal Vent With Snorkel—-type C91 BK 751 Page 23...

  • Page 24: Lay Out Of The Ceramic Logs

    Holborn GAS — INSTALLATION & SERVICE 2.6 Lay Out Of The Ceramic Logs When arranging the ceramic media into the fire bed, it is important that the pilot area is kept clear and that no media enters the pilot shield.

  • Page 25: Placement Of The Ceramic Logs

    Holborn GAS — INSTALLATION & SERVICE 2.6.2. Placement Of The Ceramic Logs STEP 1 - Scatter the bag of embers over the top of the burner as shown. IMPORTANT NOTE : ENSURE PILOT AREA IS KEPT FREE FROM EMBERS. STEP 2 -...
  • Page 26 Holborn GAS — INSTALLATION & SERVICE 2.6.2. Placement Of The Ceramic Logs—Continued.. STEP 4 - Position Log 3 to the right of the burner, with the larger end, facing the rear of the appliance. STEP 5 - Position Log 4, centrally at the rear of the burner.
  • Page 27 Holborn GAS — INSTALLATION & SERVICE STEP 7 - Position Log 6 to the pilot area, located on the front part of the burner grate surround, with the smaller branch lying on the burner. STEP 8 - Position Log 7, so that it lies across Log 3 and lying on the small branch of Log 6.

  • Page 28: Commissioning The Appliance

    Holborn GAS — INSTALLATION & SERVICE 2.7. Commissioning the Appliance Please see the USER GUIDE section in this manual, for reference to the remote control handset and manual control of the burner. 2.7.1. Pilot Ignition Check 1. Ignite the pilot light as described in the User Guide 2.

  • Page 29: Servicing

    Turn the appliance OFF and isolate the gas supply. Ensure the appliance is fully cold before attempting to start servicing the appliance. No liability can be accepted by Arada for injury caused by burning or scolding by a hot appliance. Suggested procedure for servicing is listed below.

  • Page 30: Pairing Information

    Holborn GAS — INSTALLATION & SERVICE 3.4. Pairing Information INFORMATION ONLY - NOTE : THE REMOTE CONTROL HANDSET WILL BE SHIPPED PAIRED TO THE GAS VALVE WITHIN THE BURNER ASSEMBLY—DO NOT ALTER THE PAIRING. IF FOR ANY REASON THE PAIRING HAS BEEN ALTERED, THEN THE HANDSET WILL NOT WORK.
  • Page 31 Holborn GAS—User Guide HOLBORN BF GAS STOVE NG : APPLIANCE IS CATEGORY I2H FOR USE WITH NATURAL GAS AT A SUPPLY PRESSURE OF 20 mbar. LPG : APPLIANCE IS CATEGORY I3P FOR USE WITH LIQUID PETROLIUM GAS AT A SUPPLY PRESSURE OF 37 / 29 mbar.

  • Page 32: Important Information

    Holborn GAS - USER GUIDE SECTION 4. IMPORTANT INFORMATION 4.1 IMPORTANT INFORMATION FOR USE OF APPLIANCE This stove should not be used for any other purpose than as a room heater and decorative stove, due to its newness of materials the stove may give off a slight smell for a period of time after commissioning, this is quite normal and should clear within a few hours of use.

  • Page 33: Operating Control Locations

    Holborn GAS - USER GUIDE 4.2. Operating Control Locations The main control of your appliance is the gas fire control valve, which is situated at the bottom left hand side of the appliance (when the door is opened). Battery Compartment...

  • Page 34: Remote Handset Control Overview

    Holborn GAS - USER GUIDE 4.3. Remote Handset Control Overview IMPORTANT USER INFORMATION—AFTER INSTALLATION BY THE GAS SAFE ENGINEER, READ THIS BEFORE ATTEMPTING TO OPERATE THE APPLIANCE. NOTE— The handset is supplied paired to the gas control valve. DO NOT ALTER THE PAIRING, this will only compound any difficulties you may have understanding how to operate the handset.

  • Page 35: Trouble Shooting / Faq

    Holborn GAS - USER GUIDE To Turn The Appliance OFF To the appliance off, hold handset to unlock the buttons and then press the power button. The appliance will immediately stop without. Do not attempt to re-start the appliance, until STOP appears on the display.

  • Page 36: Battery Replacement

    Holborn GAS - USER GUIDE 4.5. Battery Replacement The gas control valve which operates the appliance is battery powered and require replacing periodically; after removing the plastic front cover from the control, the batteries (3 No. AA/1.5V LR6) are fitted and positioned as shown below, always replace the plastic cover, once the new batteries have been fitted.

  • Page 37: Remote Handset Optional Functions

    Holborn GAS - USER GUIDE 4.7. Remote Display Handset Optional Functions DETAILED FUNCTIONS : Upon successful insertion of the batteries in the handset the display will be as shown. The handset will be supplied paired to the fire and all that is required is to set the time of day and select if a 24h hour clock or 12 hour clock display is required and if temperature display is on Celsius or Fahrenheit.
  • Page 38 Holborn GAS - USER GUIDE Setting the Hour & Minutes Press and release the + or – button to change the hour to the correct hour and press set to store and to move to setting the minute. Repeat this for setting the minutes.
  • Page 39 Holborn GAS - USER GUIDE Advanced settings Menu In the event that you may want to change the other preset settings of the control features. Do not do a long press and hold above but a normal short press and release will take you into the advanced settings area.
  • Page 40 Holborn GAS - USER GUIDE Press the set button again to see the temperature setting that is set and the mode (the default is 24 C ) and on the left of the display is a sun symbol showing it’s the day temperature.
  • Page 41 Holborn GAS - USER GUIDE To put the fire into thermostat timer mode press and release the mode button until the thermostat and timer symbols are displayed on the display at the top. Press and release the “SET” button and the control will now run the timed program set up in the memory.

  • Page 42: Guarantee

    SECTION 5. GUARANTEE 5.1. Guarantee When you buy an Arada stove, you are not only buying a first class appliance, you are receiving a commitment from us to look after you and your appliance. If any part of the main body of the stove fails due to a manufacturing or material defect during the guarantee period that applies in respect of the relevant stove (as set out below), Arada will, at its sole discretion, repair or replace your stove, for no charge.

  • Page 43: General

    11. The guarantee is only valid where any spare parts used are supplied by Arada or an approved Arada dealer. The use of spares other than those supplied by Arada Limited shall invalidate the guarantee.
  • Page 44 Holborn BF GAS Arada Ltd The Fireworks, Weycroft Avenue - Axminster - Devon EX13 5HU United Kingdom www.aradastoves.com T: +44 (0)1297 632050 Email : info@aradastoves.com DATE OF ISSUE—02/06/2021 BK 751...
