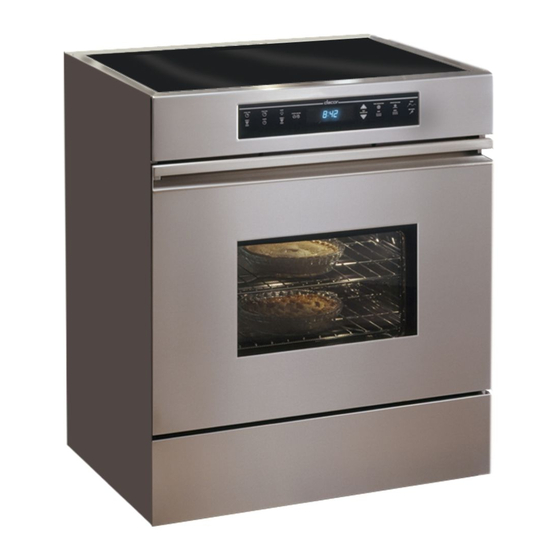

Dacor Renaissance MRES30 Planning Manual

Document # PG05-005
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
35"
(88.9 cm)
1 1/16" - 1 13/16"
(1.7 cm - 4.6 cm)
Optional full size side panels
(ARSL30S, ARSR30S)
Removable (factory installed)
3" (7.6 cm) side panels

PRoDUct DIMENSIoNS - ISo VIEW

Range top
Door opened

PRoDUct DIMENSIoNS - toP VIEW

NOTES:
1. Electrical is located in the right rear corner of the unit.
2. Range is supplied with a 56" (142 cm) long 240 Vac 4-wire conduit.
All specifications subject to change without notice.
Renaissance
Electric Range
waRNiNg
56" (142 cm) long
240 Vac 4 wire
conduit location
5/16"
(8 mm)
23 1/2"
(59.7 cm)
25 5/16"
Rear of control (64.3 cm)
Panel/oven door
Max. depth
to front of
control panel
with door closed
45 5/16"
(115.1 cm)
MRES30
® 30" Wide
Product tolerances: ±1/16" (±1.6 mm), unless otherwise stated
The optional full size side panels are for installation where the side of the
range will not be covered by the cabinet. For the right side panel, order
Dacor part number ARSR30S. Order part number ARSL30S for the left
side.
Dedicated Circuit Required
240 Vac, 60 Hz., 4-wire*, 50 Amp.
The above specifications are for reference only. See the product data label
for exact specifications.
36" (91.4 cm) recommended
30" (76.2 cm) min.
13" (33.0 cm)
max.
18" (45.7 cm)
min. 1, 2
Note 5
www.dacor.com
Revised 10/10/13 Page 1/2
PLANNING
Total Connected Load

ELEctRIcAL REqUIREMENtS

Hood
finished
counter
30" (76.2 cm)
30 1/16" 4
min. 1
(76.4 cm)
Electrical locations
1) Recommeded
2) Alternate
1
Vertical to combustible surface from cooktop surface.
2
This specification does not apply for cabinets located
greater than a horizontal distance of 10" (25.4 cm) from
edge of range.
3 14" H (35.6 cm) x 10" W (25.4 cm)
Consult local code for exact location requirements.
4
Freestanding width shown. For self-rimming installations
see the self-rimming cutouts on the following page.
5 36 13/16" (93.5 cm) max. for freestanding units, 36 1/2"
(92.7 cm) max. for self-rimming units.

cUtoUt DIMENSIoNS

Phone: (800) 793-0093
GUIDE
12.5 kW (48.2 Amp.)
25"
(63.5 cm)
Top of
10" (25.4 cm)
min. to
combustibles
side wall
(both sides)
3
