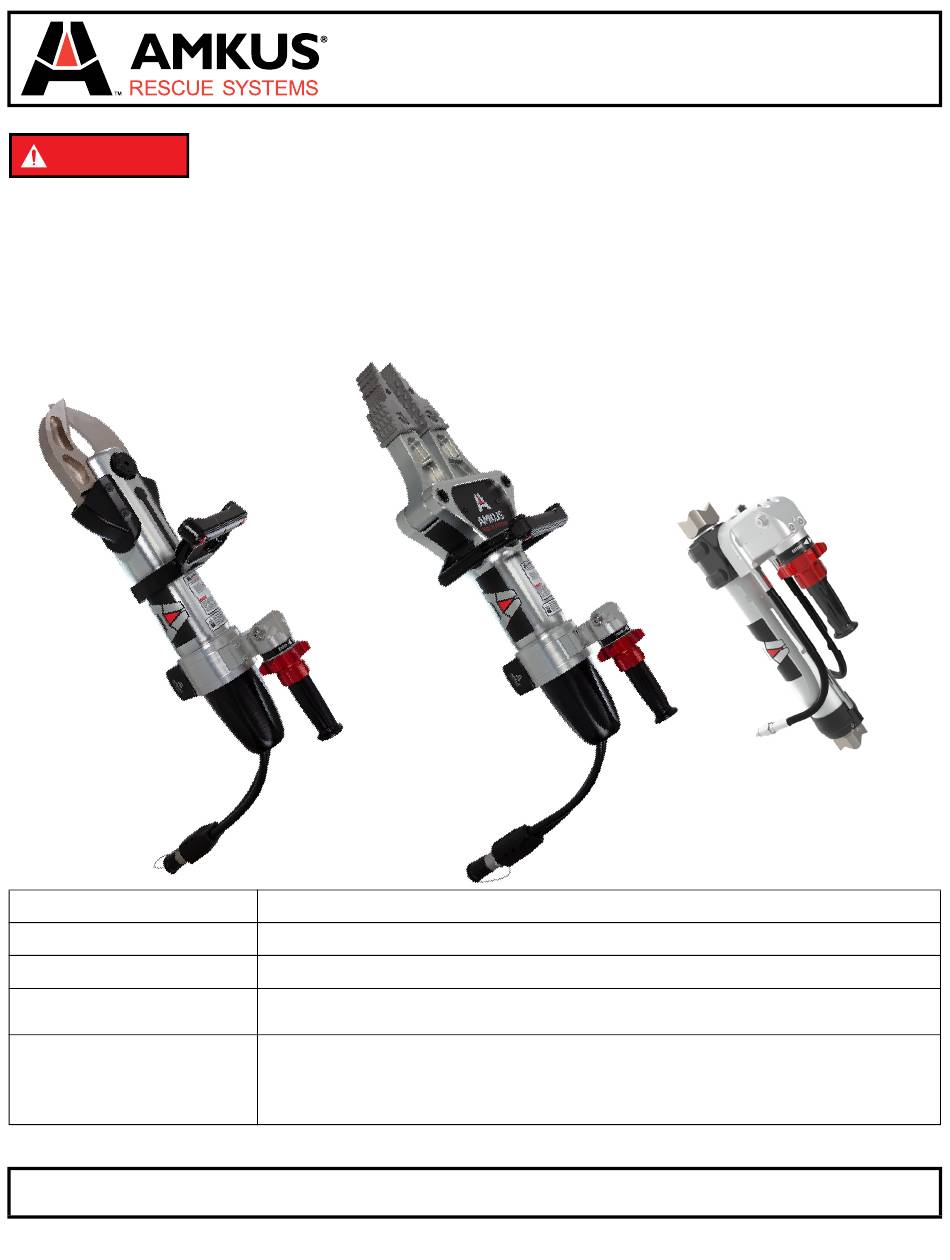

G-Force
DANGER
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE

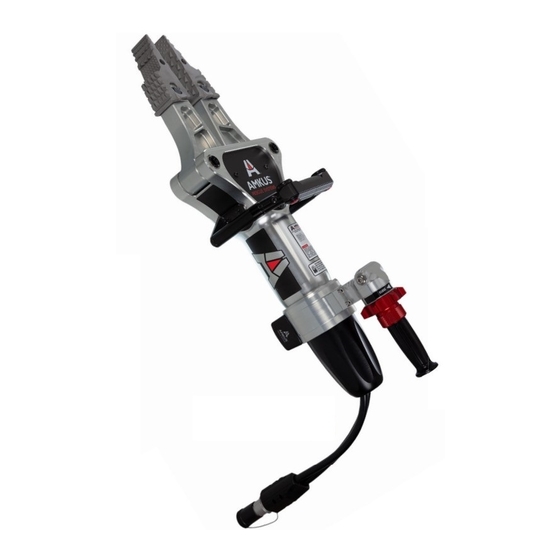

C700M
CUTTER Model: C700/C700M
SPREADER Model: S281/S281M
TELESCOPING RAM Model: TR500/TR500M
RATED INPUT PRESSURE 10,500 psi (724 bar) - designed to be driven only by an AMKUS hydraulic power unit rated for this
HYDRAULIC FLUID AMKUS MV1 (Mineral Oil base)
AMKUS RESCUE SYSTEMS
AMKUS.com
©Copyright AMKUS Rescue Systems 2020-2021
Understand manual before use. Operating AMKUS Rescue Systems without understanding the
manual, receiving proper training, and using appropriate personal protective equipment is a misuse
of AMKUS equipment. Obtain safety information at AMKUS.com
This instruction manual is intended to familiarize operators and maintenance personnel with the
operation, basic maintenance, and safety procedures associated with this product. This manual
should be kept available to all operating and maintenance personnel.
This manual does NOT address servicing of AMKUS Rescue Systems. Only competent rescue tool
repair technicians are qualified to repair AMKUS equipment.
pressure
Safety Data Sheet (SDS) for AMKUS MV1 Hydraulic Fluid is available at AMKUS.com and
CHEMTREC.com (for equipment stored and operated in environments below 32°F (0°C) contact
AMKUS Rescue System for recommendation)
Hydraulic Rescue Tools
S281M
4201 Montdale Drive, Valparaiso, IN 46383-4098 USA
1
TR500
800-592-6587 · 219-548-5000
LAL-002 August 3, 2021 Rev01
