Understand manual before use. Operating AMKUS Rescue Systems without understanding the
DANGER
manual, receiving proper training, and using appropriate personal protective equipment is a
misuse of AMKUS equipment. Obtain safety information at amkus.com
This instruction manual is intended to familiarize operators and maintenance personnel with the
operation, basic maintenance, and safety procedures associated with this product. This manual
should be kept available to all operating and maintenance personnel.
This manual does NOT address Level 2 & 3 servicing of AMKUS Rescue Systems. Only competent
rescue tool repair technicians are qualifi ed to repair AMKUS equipment.
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE

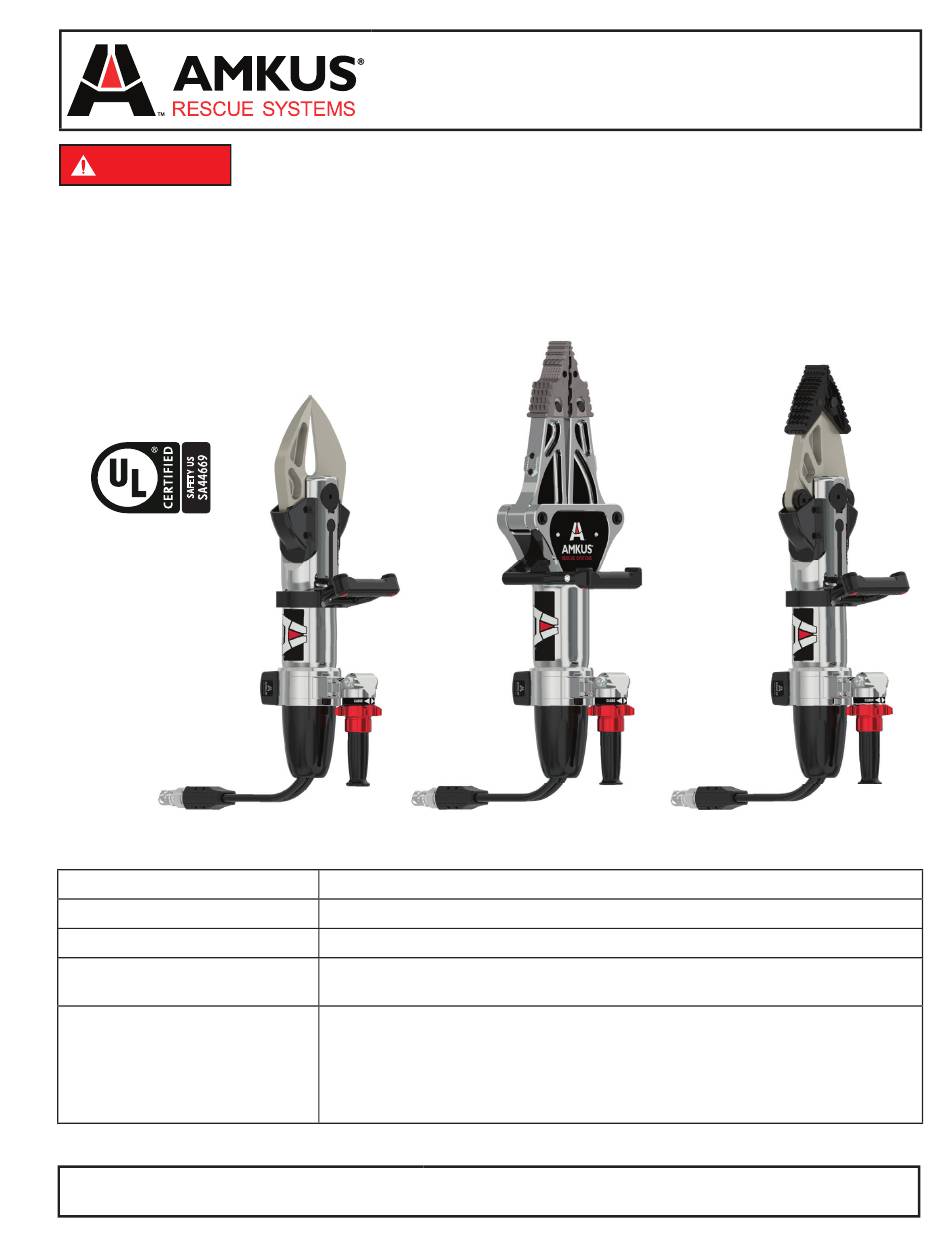

Certifi ed Compliant to
NFPA 1936
CUTTER
SPREADER
COMBI TOOL
RATED INPUT PRESSURE
HYDRAULIC FLUID
AMKUS RESCUE SYSTEMS
AMKUS.com
©Copyright AMKUS Rescue Systems, Inc. 2020
C750M
Model: C750/C750M
Model: S320/S320M
Model: CT716/CT716M
10,500 psi (724 bar) - designed to be driven only by an AMKUS hydraulic
power unit rated for this pressure
AMKUS MV1 (Mineral Oil base)
Safety Data Sheet (SDS) for AMKUS MV1 Hydraulic Fluid is available at
AMKUS.com and CHEMTREC.com (for equipment stored and operated
in environments below 32°F (0°C) contact AMKUS Rescue Systems for
recommendation)
Hydraulic Rescue Tools

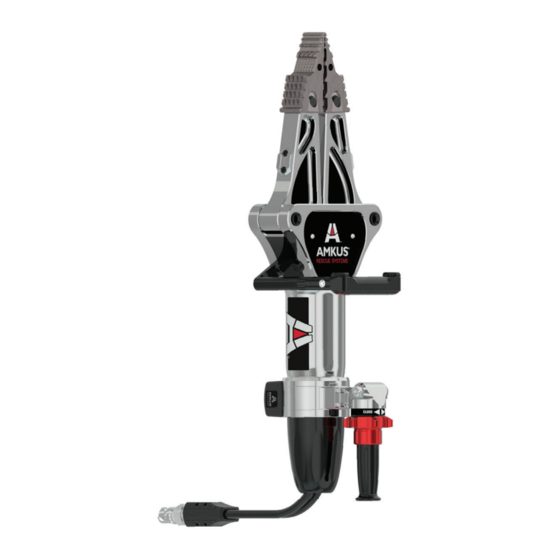

S320M
4201 Montdale Drive, Valparaiso, IN 46383-4098 USA
CT716M
800-592-6587 • 219-548-5000
LAL-001 August 11, 2020 Rev01
