CENTRAL VACUUM
SYSTEMS

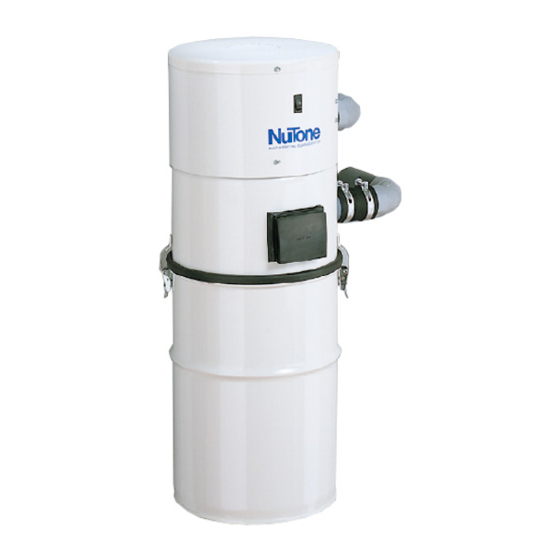

CV353 Power Unit
The CV353 delivers efficient cleaning with a single
3-stage motor. Ideal for homes up to 4,000 square feet.
Large 6-gallon dirt receptacle bag neatly contains dirt,
makes emptying power unit simple
and clean.
FEATURES:
• Single 3-stage bypass motor
• Convenient utility inlet on power unit
• Replaceable bag filtration
• 6-gallon capacity
• UL Listed
• Two Year Warranty
CV353
SPECIFICATIONS:
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-Stage Bypass
Horsepower . . . . . . . . . . . . . . . . . . . . . . .2
Amperes . . . . . . . . . . . . . . . . . . . . . . . . . .10.4
CFM at 2" opening . . . . . . . . . . . . . . . . . .94
Water Lift . . . . . . . . . . . . . . . . . . . . . . . . . .134"
Air Watts . . . . . . . . . . . . . . . . . . . . . . . . . .406
Switch & Inlet on Power Unit . . . . . . . . .Yes
Recommended Circuit . . . . . . . . . . . . . .15 amp Dedicated
Primary Filtration . . . . . . . . . . . . . . . . . . .Replaceable Bag
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . .6 Gallon
Secondary Filtration . . . . . . . . . . . . . . . . .Yes
UL Listed . . . . . . . . . . . . . . . . . . . . . . . . . .Yes
Housing . . . . . . . . . . . . . . . . . . . . . . . . . .White Steel
Tank Dimensions . . . . . . . . . . . . . . . . . . .12"Dia. x 32" H
UPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 84891 77111 8
NuTone Central
Cleaning Systems
– an important part
of Total Indoor Air
Quality...solutions
for today's
lifestyles!
Advertisement
Need help?
Do you have a question about the Performance CV353 and is the answer not in the manual?
Questions and answers
Replaced motor for a NuTone CV-353 ran through collection pipes for blockages -none. Still very limited suction at 2 port system? Im perplexed . Thanks
Limited suction in a NuTone CV353 central vacuum system with a replaced motor and no blockages in the collection pipes could be caused by an issue with the motor itself, such as improper installation, a defective motor, or incorrect wiring. Another potential cause could be leaks in the tubing system or connections, which may prevent the system from maintaining proper suction. Additionally, a clogged or improperly sealed dirt receptacle bag could restrict airflow, reducing suction.
This answer is automatically generated
Model CV 353C, vintage 1987. Mounted in garage. Won't turn on at manual switch during cold weather -10 C in garage. Is this normal? I have tried the reset button, but no change.
