Product Name and Model Number
User Manual

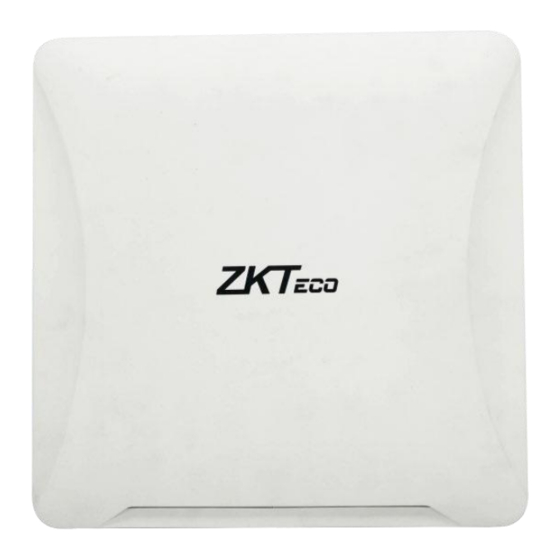

UHF10F Pro Reader
Date: March 2021
Doc Version: 1.0
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
P a g e
| 1
For further details, please visit our Company's website
www.zkteco.com.
Copyright©2020 ZKTECO CO., LTD. All rights reserved.
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UHF10F Pro Reader and is the answer not in the manual?

Questions and answers

Related Manuals for ZKTeco UHF10F Pro Reader

Summary of Contents for ZKTeco UHF10F Pro Reader

  • Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com. P a g e Copyright©2020 ZKTECO CO., LTD. All rights reserved.
  • Page 2 User Manual Copyright © 2021 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTecoand its subsidiaries (hereinafter the "Company"...
  • Page 3 The entire risk as to the results and performance obtained from using the information is assumed by the user. ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect, special, or exemplary damages, including,...
  • Page 4 UHF10 Pro Reader User Manual damages under anycircumstances. ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions due to any non-compliance of the instructions contained in this manual (ii) in case of operation of the machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in conditions different from the prescribed conditions of the manual.
  • Page 5 UHF10 Pro Reader User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.

  • Page 6: Table Of Contents

    NTRODUCTION MAIN INTERFACE ..................... 10 5.1.1 RS485 SETTING INTERFACE ................14 5.1.2 5.1.3 SYSTEM SETTINGS..................16 ACCESS CONTROLLER CONNECTION ..........18 INSTALLATION PROCEDURE ............... 19 WIRING DIAGRAM ..................21 FAQ.......................21 P a g e Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 7: Overview

    User Manual Overview UHF10 Pro is the ZKTeco’s third generation UHF reader which has a more stable performance, longer reading distance and faster recognition speed. It is equipped with a passive UHF card, which could be widely used in Vehicle management and Personnel management applications.

  • Page 8: Side View & Wiring

    Side View & Wiring Mounting Bracket Cables Colour Connection DC +12V Black Green Wiegand D0 White Wiegand D1 Purple Trigger Point Gray Connect to PC Brown RS485+ Orange RS485- P a g e Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 9: Specifications

    Working Temperature -20℃ to 65℃, <85% and Humidity Storage Temperature -20℃ to 80℃, <85% and Humidity Optional baud rate (9600, 19200, 38400, RS485 Communication 57600, 115200). The default is 115200 P a g e Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 10: Dimensions

    UHF10 Pro Reader User Manual Dimensions UHF10F Pro: Software Configuration P a g e Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 11: Introduction

    Main Interface Take the operation of the American standard reader as an example: Reader Connection Click Connect to connect the Reader, and click Disconnect to disconnect the Reader. P a g e | 10 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 12 Trigger to enable the reader to read only after it is triggered. RF Settings The RF Settings helps to set the Power and Frequency values. Buzzer Select the Buzzer check box to enable the Buzzer. P a g e | 11 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 13 (customers need not set). Output Duration Setting The time of continuous output signal of the reader can be set, and the maximum setting time is 1s. P a g e | 12 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 14 The default Wiegand format is WG26, and it can be set as WG34, WG42, WG50, WG58,WG66,WG74, WG82,WG90,WG98. Card Reading IntervalSetting You can set the card reading interval to prevent the repeated card reading. P a g e | 13 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 15: Rs485 Setting Interface

    The default Baud rate is 96000 and it can be adjusted as per the requirements. Device Address Setting The Device Address Setting is used to distinguish the readers which are installed in different locations. P a g e | 14 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 16 Click Forward Output to read the card number in the partition in the progressive order, and click Inverted Output to read out the card number in the partition in the reverse order. P a g e | 15 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 17: System Settings

    The LED indicator color can be set in the Standby Status and the Read Card Status. There are seven colors to choose. System Settings Set the location of the data import and export. P a g e | 16 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 18 Language Settings Right click in the blank area of the Demo interface, a pop-up appears as shown below, click Language Settings to select the language. P a g e | 17 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 19: Access Controller Connection

    UHF10 Pro Reader User Manual Access Controller Connection P a g e | 18 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 20: Installation Procedure

    The distance between the reading head and the parking barrier must be maintained at 50cm or more. Avoid installing the reader opposite to each other. P a g e | 19 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 21 Data Storage: 32-bit TID, 64-bit Unique TID, Parking 96-bit EPC, 512-bit User, etc. Support Protocol: EPC global class 1 Gen2 / Parking ISO18000-6C lot label Product size: 100.0x23.2x0.4mm P a g e | 20 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 22: Wiring Diagram

    What to do if the recognition distance of the reader is too close?  Try the following possibilities: Connect the demo, and then adjust the power to the maximum.  P a g e | 21 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 23 If the manual card reading does not respond, there is a problem with the reader. If the manual card reading fails after the factory reset, replace the reader. Determine whether the tag is our product, replace the tag test.  P a g e | 22 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 24 If so, check whether the output port of the controller relay signal is connected to the brake in a wrong manner or connected to another output port. P a g e | 23 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 25 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone: +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2021 ZKTECO CO., LTD. All Rights Reserved.
