inBIO26 0 Installation and Connection Guide
1.Cautions
Please note the follo wing cautio ns. Mis-operatio n may lead to personal injury or
equipment failu re:
1）Do not energize the system before installa tio n is complete; never carry out
installa tio n activ itie s when the system is energized.
2）All perip heral devices must be grounded.
3）The conduits of wire s under relay must be matched with metaled conduits , other wire s
can use PVC conduits .
4）It is stro ngly recommended that the length of exposed part of any connectio n cable
should not be longer than 4 mm. Professional clamping tools may be used to avoid
unintentio nal contact of exposed wire s to avoid short- circ uit or communicatio n failu re.
5）It is recommended that card readers and butto ns be installe d at height of 1.4m-1.5m
above ground.
6）It is recommended to use the power supply for contro l panel, and external power
supply for each lock.
7）The applia nce shall be installe d and wire d in accordance with natio nal electric al
code and by qualifie d personnel only
Descriptio n of normal working state:
Connect the system to the power supply. If the system works properly, the POWER
indicator (red) is lit constantly and the RUN indicator (green) fla shes.
2.Components
State Indicator
Box Lock Hole
Heat
Dissipation Hole
Thread Hole

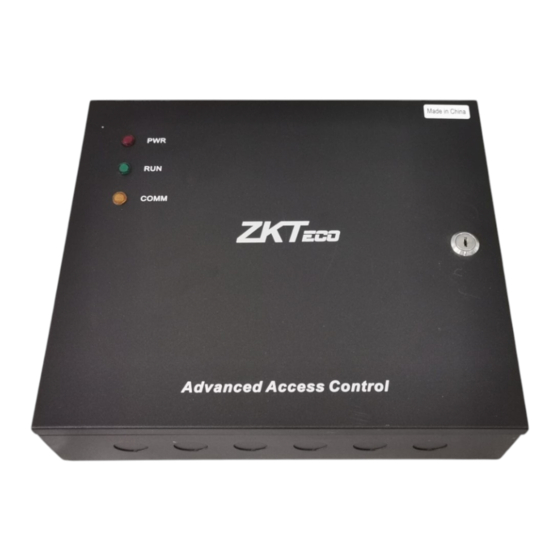

Panel Box Appearance
Version: 1.3 Date: Jan. 2014
Valve regulated lea d-ac id battery :
Constan t voltage charge voltage reg ulati on
Cycle use : 14.5V ~14.9V (25 )
Initial curren t: less tha n 2.88 A
Stan dby use: 13.6V ~13.8V (25 )
Capacity: 12V, 7.2A h/20 hr,
Battery Type: LC-RA127R2T1
Caution :
Do not charge in a gas tight containe r.
Do not short the battery term ina ls.
Do not inc ine rate
Flush with water at once if contact is made with
elec trolyte (Acid )
Do not attem pt to disasse mble the battery .
Backup Battery Control Panel
Temper Switch
Air Switch
Panel Track
Power Supply
Get the Panel off the track
Panel Box Inside
3.Installation
After the following installation, fix the panel to the track first, and then install other components.
Thread holes
1) Get through the thread hole
4.LED Indicators and Wire Illustration
1) Meaning of LED indicators:
LINK indicator (green):
ACT indicator (yellow): Flashing indicates data is transmitting through TCP/IP communication.
EXT RS485 indicator (yellow&green): Flashing indicates it is sending or receiving data through RS485 communication.
PC RS485 indicator (yellow&green): Flashing indicates it is sending or receiving data through RS485 communication.
POWER indicator (red): Light always indicates the control panel is power on.
RUN indicator (green): Flashing indicates that system is working normally.
CARD indicator (yellow): Flashing indicates card is punched on reader.
2) Recommended use of wires：
Control Panel
1
2
3) The auxiliary input may be connected to infrared body detectors, alarm switches, etc.
4 The auxiliary output may be connected to door bells, alarms, etc.
)
5) State Indicators are connected to the panel box, which is power indicator, run status indicator and communication status indicator.
1
Screws
2) Fix the box
Constant light indicates TCP/IP communication is normal.
Interface Wire Specification Network cable Maximum length
Power (A) 18AWG*2PIN / 1.5M
24AWG*6PIN CAT-5 or above network cable, one
Wiegand (B) (6PIN, 8PIN, 10PIN for different way DC impedance is less than 100Ω 100M
readers) /KM
18AWG*2PIN+24AWG*2PIN,
18AWG*2PIN for lock connection,
Electric Lock (C) / 50M
24AWG*2PIN for door sensor
connection.
Button (D) 24AWG*2PIN / 100M
CAT-5 or above network cable, one
20AWG*2PIN+24AWG*2PIN, Share power with control panel: 100M
way DC impedance less than 100 Ω
20AWG*2PIN for reader power Use
EXT485 (E) /KM. In wire connection, +12V and
supply, 24AWG*2PIN for RS485 (connect RS485 signal interface only):
GND of power supply need to be
communication 1000M
parallel and use double wires.
Control Panel
1
Panel Track
2
3) Install other components
independence power supply
2
