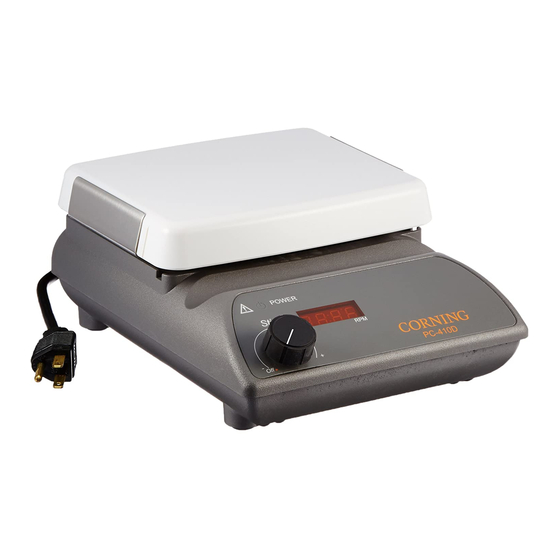

CORNING PC-400D Instruction Manual
Stirring hot plates, stirrers, and external temperature controller
Hide thumbs
Also See for PC-400D:
- Instruction manual (57 pages) ,
- Instruction manual (11 pages) ,
- Instruction manual (11 pages)
Table of Contents
Advertisement
Corning® Digital Hot Plates,
Stirring Hot Plates, Stirrers, and
External Temperature Controller
Instruction Manual
Model No.
Description
PC-400D
Hot Plate
PC-410D
Stirrer
PC-420D
Stirring Hot Plate
PC-600D
Hot Plate
PC-610D
Stirrer
PC-620D
Stirring Hot Plate
External
Temperature
Controller
This manual is available in additional languages at www.corning.com/lifesciences.
120V
100V
6795-400D
6797-400D
6795-410D
6797-410D
6795-420D
6797-420D
6795-600D
6797-600D
6795-610D
6797-610D
6795-620D
6797-620D
6795PR (all models)
Catalog Number
230V
(Non-Europe)
6798-400D
6798-410D
6798-420D
6798-600D
6798-610D
6798-620D
230V
(Europe)
6796-400D
6796-410D
6796-420D
6796-600D
6796-610D
6796-620D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CORNING PC-400D
Summary of Contents for CORNING PC-400D
- Page 1 6795-420D 6797-420D 6798-420D 6796-420D PC-600D Hot Plate 6795-600D 6797-600D 6798-600D 6796-600D PC-610D Stirrer 6795-610D 6797-610D 6798-610D 6796-610D PC-620D Stirring Hot Plate 6795-620D 6797-620D 6798-620D 6796-620D External Temperature 6795PR (all models) Controller This manual is available in additional languages at www.corning.com/lifesciences.
-
Page 2: Table Of Contents
10.0 Accessories ......................10 11.0 Technical Specifications ..................11 12.0 Size and Dimensions ..................12 13.0 Frequently Asked Questions................12 14.0 Limited Warranty ....................13 15.0 Equipment Disposal ..................13 CORNING DIGITAL HOT PLATES, STIRRING HOT PLATES, STIRRERS AND EXTERNAL TEMPERATURE CONTROLLER... -
Page 3: Safety Information
1.0 Safety Information This instruction manual contains important operating and maintenance instructions that must be read, understood, and followed by the product user. Failure to use this product according to this instruction manual may degrade or defeat the protection normally provided by this product. -
Page 4: Operating Conditions
Do not operate this product near volatile or flammable materials. Do not use this product with a metal vessel. 2.0 Operating Conditions Corning® hot plates, stirrers, and stirring hot plates, are designed to be safe when used under the following conditions: Indoor use. Altitude up to 6,500 feet (2,000 meters). -
Page 5: Product Connections
4.0 Product Connections 1. Power Cord Input: Connect the supplied power cord into this connector. 2. External Temperature Controller Input: Connect the optional External Temperature Controller (Cat. No. 6795PR) into this connector. To Connect/Disconnect the External Temperature Controller 1. Turn the Stir Control Knob and Heat Control Knob to the OFF position. 2. -
Page 6: Heating Instructions
With the External Temperature Controller (Corning 6795PR) for Models: PC-400D, PC-420D, PC-600D, PC-620D, and 6795PR 1. Connect the External Temperature Controller to the connector on the back of the unit. -
Page 7: Heating Operation
6. Secure the position of the External Temperature Controller by using a ring stand/support rod and clamp. Ensure the cable of the External Temperature Controller does not come into contact with the heating surface. 7. Turn the Heat Control Knob until the Heating Temperature Display shows the desired heating temperature. - Page 8 A product shut down by an error routine must be disconnected and reconnected to mains input before it can be used again. Please contact Corning Life Sciences or a Corning authorized repair facility (visit www.corning.com/lifesciences) if a product does not reset from the error routine shut down or if it continues to shut down after resetting.
-
Page 9: Repair
8.0 Repair There are no direct user serviceable components inside this series of products. Please contact Corning or a Corning authorized repair facility for repair or maintenance issues. 9.0 Maintenance Power CAUTION: Disconnect power to the product by unplugging the power cord before performing any maintenance or inspection procedures. -
Page 10: Accessories
External temperature controller for digital display hot plates and 6795PR plates . Use with all PC-400D, 420D, 600D, and 620D models. Vertical support rod. Supplied as two 9 in. (22.86 cm) rods which can be 440129 screwed together. Use with all PC-400D, PC-410D, PC-420D, PC-600D, PC-610D, PC-620D series products. -
Page 11: Technical Specifications
Corning® Digital Display Hot Plate and Stirring Hot Plate Accessory Kit 6795KIT This accessory kit is designed for all Corning digital display hot plates and stirring hot plates (Models PC-400D, PC-420D, PC-600D, PC-620D). This kit includes: external temperature controller (Cat. No. 6795PR), vertical support rod (Cat. -
Page 12: Size And Dimensions
15 minutes to bring the water to a full, rolling boil. Can I use a metal tray on top of my Corning® hot plate? No. The metal will act as a heat sink, and have a high probability of creating an abnormal heating condition. -
Page 13: Limited Warranty
14.0 Limited Warranty Corning Incorporated (Corning) warrants that this product will be free from defects in material and workmanship for a period of two (2) years from date of purchase. CORNING DISCLAIMS ALL OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. - Page 14 L A T I N A M E R I C A t 886 2-2716-0338 grupoLA@corning.com f 886 2-2516-7500 Brazil t 55 (11) 3089-7400 Mexico t (52-81) 8158-8400 For a listing of trademarks, visit www.corning.com/clstrademarks. All other trademarks are the property of their respective owners.
