CORNING PC-400D Instruction Manual

For all hot plates, stirrers, and stirrer/hot plates with digital displays and for the 6795pr temperature controller
Hide thumbs Also See for PC-400D:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Enlarged version

Instruction Manual

For All Hot Plates, Stirrers, and Stirrer/Hot Plates with
Digital Displays and for the 6795PR Temperature Controller
Model
Product
Top Plate
Number
Type
Size
PC-400D
Hot Plate
5" x 7"
(12.7 x 17.8 cm)

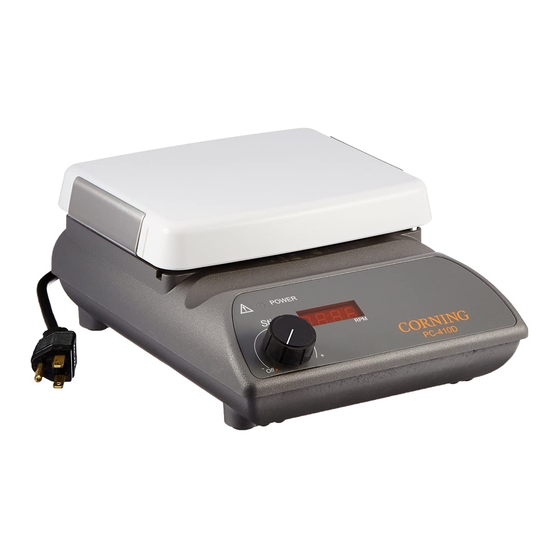

PC-410D
Stirrer
5" x 7"
(12.7 x 17.8 cm)
PC-420D
Stirrer/
5" x 7"
Hot Plate (12.7 x 17.8 cm)
PC-600D
Hot Plate
10" x 10"
(25.4 x 25.4 cm)
PC-610D
Stirrer
10" x 10"
(25.4 x 25.4 cm)
PC-620D
Stirrer/
10" x 10"
Hot Plate (25.4 x 25.4 cm)
6795PR
Temperature
All
Controller
Catalog Number
230 Volt
120 Volt
100 Volt
(Non-Europe)
6795-400D
6797-400D
6798-400D
6795-410D
6797-410D
6798-410D
6795-420D
6797-420D
6798-420D
6795-600D
6797-600D
6798-600D
6795-610D
6797-610D
6798-610D
6795-620D
6797-620D
6798-620D
6795PR
230 Volt
(Europe)
6796-400D
6796-410D
6796-420D
6796-600D
6796-610D
6796-620D
