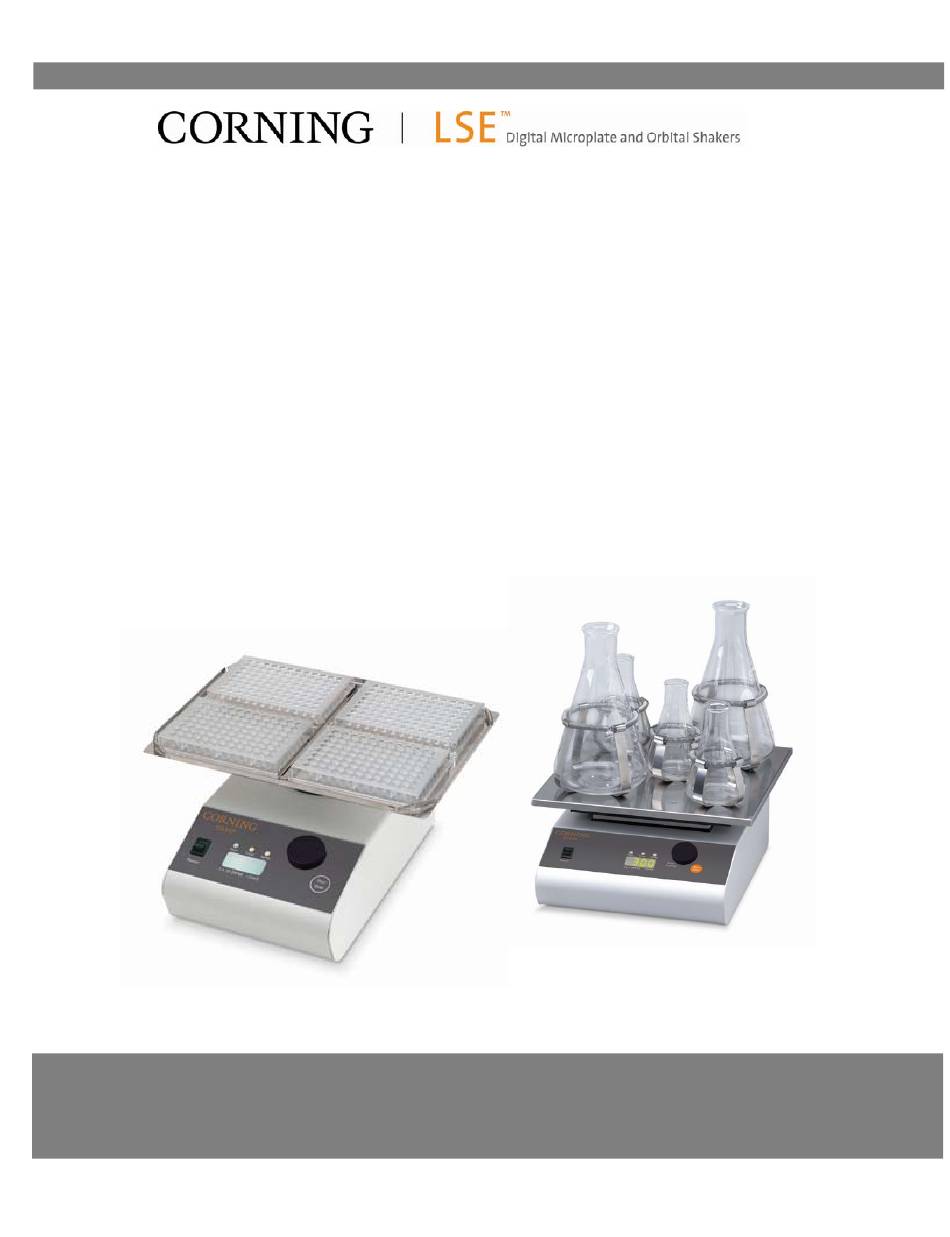

- Page 1 INSTRUCTION MANUAL Models: 6780-4 -- 120/100V 6781-4 -- 230V EU 6782-4 -- 230V UK 6780-NP – 120/100V 6781-NP – 230V EU 6782-NP – 230V UK CLS-EQ-99 March 2010, Document 01, Revision 01...
-
Page 2: Table Of Contents
CORNING DIGITAL MICROPLATE AND ORBITAL SHAKERS USER’S MANUAL TABLE OF CONTENTS Page 1.0. GENERAL DESCRIPTION 1.1. DEFINITION 1.2. PRINCIPLES OF OPERATION 2.0. TECHNICAL FEATURES 2.1. CONSTRUCTION 2.2. GENERAL SPECIFICATIONS 3.0. INSTALLATION 3.1. UNPACKING 3.2. SELECTING A SUITABLE LOCATION 3.3. -
Page 3: General Description

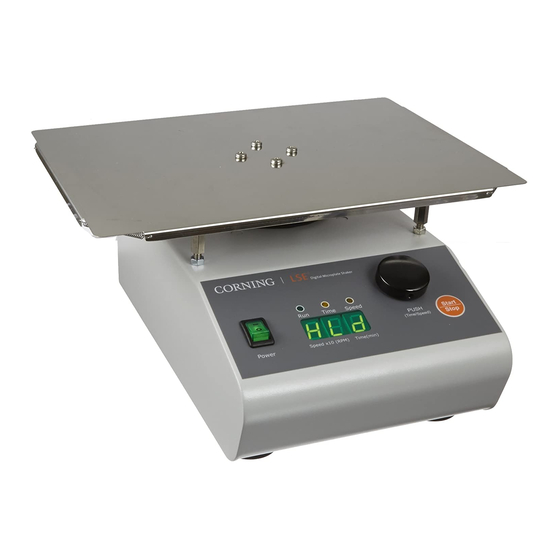

1.0. GENERAL DESCRIPTION 1.1. DEFINITION Corning LSE Digital Microplate and Orbital Shakers are intended for shaking microplates, tubes, bottles, flasks, dishes and other laboratory vessels. The shakers are driven by asynchronous motors, which enable silent operation and constant shaking speed independent of the load or power supply fluctuations. -
Page 4: Installation
Plug the cord to a grounded wall socket only with dry hand. 3.4. ENVIRONMENTAL REQUIREMENTS The Corning’s digital shakers have been built for operating in both cold and heated laboratory environments and in high humidity environments as follows: ... -
Page 5: 6780-4, 6781-4 And 6782-4 Models
POWER Press the POWER switch on the control panel. The Corning Digital shaker automatically detects supply frequency of 50 Hz or 60Hz, and displays F50 or F60. Then the display switches to show the set time and illuminates the time light. - Page 6 CORNING DIGITAL MICROPLATE AND ORBITAL SHAKERS USER’S MANUAL TIME Push Time/RPM nx10 (RPM) t (min) POWER Time signal light is on. By rotating the encoder right (+) or left (-) the set time can be selected from 30 sec to 99 min 50 sec : 99.5 ...
- Page 7 CORNING DIGITAL MICROPLATE AND ORBITAL SHAKERS USER’S MANUAL TIME Push Time/RPM nx10 (RPM) t (min) POWER RUN and TIME signal lights on. Shaker runs and counts down time from set value. NOTE: YOU CANNOT MODIFY THE SET TIME DURING SHAKING, HOWEVER, YOU CAN STOP THE UNIT WITH THE START/STOP BUTTON AND THEN RESET THE TIME.
-
Page 8: Additional Operations
1.978.442.2200 (outside the U.S.), or contact your local Corning support office listed in the back of this manual. If the equipment is used in a manner not specified by this manual, the equipment may become unsafe to operate, could harm the user or the device, and may void the warranty. -
Page 9: Troubleshooting Guide
Check fuses Shaker stalls – Message Er1 Power unit down, then restart Display does not light Message Er2 on display Contact Corning Customer Service Message Er3 on display Message Er4 on display 8.0. REGULAR MAINTENANCE With the exception of the occasional maintenance described in 4.0 of this manual, no scheduled maintenance is normally required. - Page 10 This warranty gives you specific legal rights. You may have other rights which vary from state to state. No individual may accept for, or on behalf of Corning, any other obligation of liability, or extend the period of this warranty.
-
Page 11: Declaration Of Conformity
This equipment has been Declaration of Conformity tested and found to comply with the limits for a Class Corning Life Sciences hereby confirms that the product A digital device, pursuant to both Part 15 of the FCC Corning LSE... -
Page 12: Product Disposal
It is the product user’s responsibility to decontaminate waste equipment from biological, chemical, and/or radiological hazards prior to disposal. Additional information pertaining to the disposal of Corning per the WEEE Directive can be obtained at www.corning.com/weee. - Page 13 Korea All other European Countries t 82 2‐796‐9500 t 31 (0) 20 659 60 51 f 82 2‐796‐9300 F 31 (0) 20 659 7673 Singapore LATIN AMERICA t 65 6733‐6511 Brasil f 65 6861‐2913 t (55‐11) 3089‐7419 f (55‐11) 3167‐0700 Taiwan t 886‐2‐2716‐0338 Mexico f 886 2‐2716‐0339 t (52‐81)8158‐8400 f (52‐81) 8313‐8589 Corning is a registered trademark of Corning Incorporated, Corning, NY LSE is a trademark of Corning Incorporated, Corning, NY Corning Incorporated, One Riverfront Plaza, Corning, NY 14831‐0001 2010. All rights reserved Printed in U.S.A.
