Parts Available For Purchase; Resources Required - Lippert Components Equa-Flex Triple Axle Installation And Owner's Manual

Parts Available for Purchase

The parts listed are NOT part of the Equa-Flex Triple
Axle Kit but can be purchased separately. It is always
recommended to inspect and replace any worn or
damaged shackles and bolts.
A
C
E
G
I J
M
lci1.com
B
D
F
H
K L
574-537-8900
Equa-Flex
Installation and Owner's Manual
(For Aftermarket Applications)

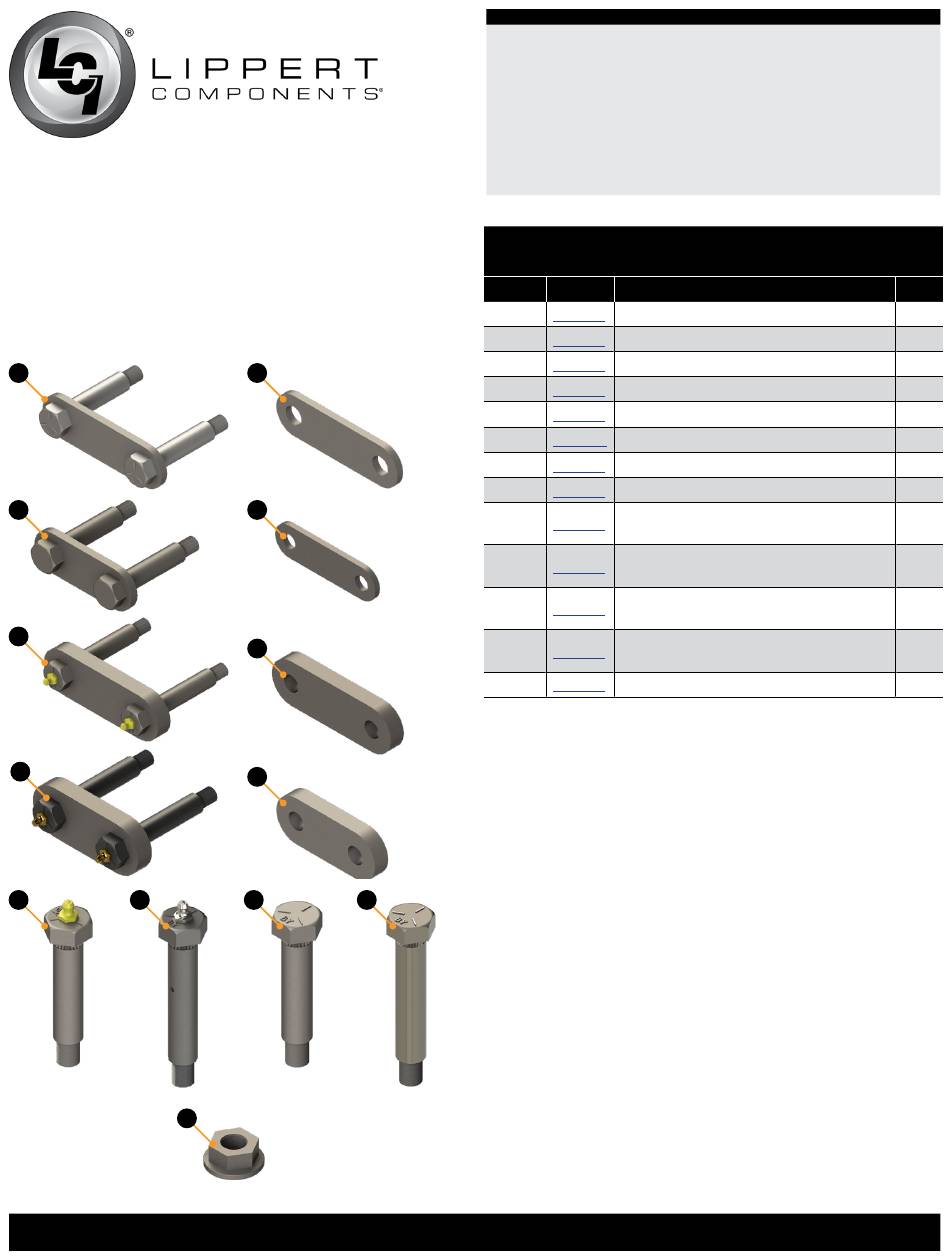

Parts Available for Purchase Parts Available for Purchase
Shackle Links and Assemblies Shackle Links and Assemblies
Letter Letter PN PN Description Description
A 133485 Shackle Assembly, Standard Long, 3.13"
B 133207 Shackle Link, Standard Long, 3.13"
C 125675 Shackle Assembly, Standard Short, 2.25"
D 122487 Shackle Link, Standard Short, 2.25"
E 156766 Shackle Assembly, Heavy Duty Long, 3.13"
F Shackle Link, Heavy Duty Long, 3.13"
1567651
G 126205 Shackle Assembly, Heavy Duty Short, 2.25"
H 126172 Shackle Link, Heavy Duty Short, 2.25"
Wet Bolt, 9/16" x 2.325" Body with
I 126238
7/16" - 20 Threaded End
Wet Bolt, 9/16" x 2.825" Body with
J 126197
7/16" - 20 Threaded End
Bolt, 9/16" x 2.325" Body with
K 122102
7/16" - 20 Threaded End
Bolt, 9/16" x 2.825" Body with
L 271254
7/16" - 20 Threaded End
M
122103 Nut, 7/16" - 20 REVLKN ZN GR2 ST

Resources Required

• 1 to 2 People, depending on task
• Pneumatic impact wrench
• Torque wrench (ft-lb)
• Cordless or electric drill or screw gun
• Appropriate drive bits
11/16
• " Deep well socket
3/4
• " Deep well socket
13/16
• " Deep well socket
• Steel tube to install bolts with grease fittings
• Multi-purpose grease marked with a NLGI code of GC-LB
• Appropriately-sized and rated bolts and fasteners
• Floor jacks
• Floor jack stands
• Hammer
• Grease gun
